UZC-8 | UZC-8 Zone/Cntrl Pnl 2Stclg/3Stg Ht | EWC Controls

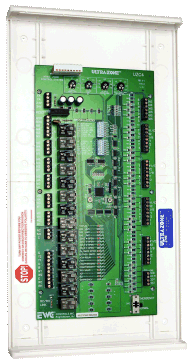

The UZC-8, 8 Zone Control Panel Auto Changeover from EWC Controls is engineered for industrial applications that require precise and reliable control over multiple zones. This advanced control panel features 8 independent zones, allowing for efficient management of various functions or equipment within a single system. Featuring automatic changeover capability, the UZC-8 ensures seamless operation by switching between primary and backup power sources in the event of a power outage. This eliminates downtime and maintains system integrity, guaranteeing continuous operation of critical processes. With its user-friendly interface and intuitive controls, the UZC-8 simplifies configuration and monitoring, making it easy for operators to maintain optimal system performance. Its robust construction and durable components ensure reliable operation in demanding industrial environments, providing peace of mind and maximizing productivity. We offer the best prices and fast shipping for your products at our HVAC supply store!

NUMBER OF ZONES

: 2, 3, or 4 Zones, expandable to 22 zones using ZXM-2 expansion modules. See 090377A0144 rev. B.

COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling. Heat Pump Conventional or Dual Fuel – Up to 4 Stages Heating and 2 Stages Cooling.

COMPATIBLE THERMOSTATS: Any single or two stage Heat/Cool Thermostat or 4 Stage Heat, 2 Stage Cool Heat Pump Thermostat. COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.

ACCESSORIES: Model SAS – Supply air sensor (Included). Molel OAS – Outdoor Air Sensor (Optional). Model RAS – Return Air Sensor (Optional). Co2 Monitor - Provided by Others (Optional)

ADDITIONAL FEATURES: *Staging via Multi-Stage Thermostats, Adjustable On-board Timer, or Outdoor Air Sensor (7 to 42 Minutes or 7° to 42°F). *50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling. *Variable Speed Fan Reduction Control, if less than 25% of total zones are demanding cooling. *Fire Alarm Interlock feature, shuts down HVAC system and closes all connected dampers. *Enhanced Dehumidify Feature and Supply/Return Air Temperature Monitoring. *Fresh Air Damper Terminal Block with Indoor Blower Interlock. Activated by Co2 dry contact closure
