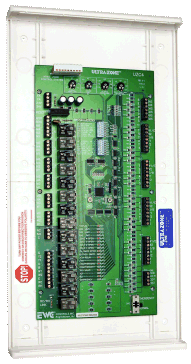

UZC-6 | UZC-6 Zone/Cntrl Pnl 2Stclg/3Stg Ht | EWC Controls

NCO-UZC-6-EWC-Controls: Enhancing Industrial Automation with Precision The NCO-UZC-6-EWC-Controls is a robust six-zone control panel engineered by EWC Controls for sophisticated industrial automation systems. This highly accurate panel features an auto-changeover function, seamlessly switching between control modes to maintain optimal performance. Its advanced design ensures precise control and efficient operation of critical industrial processes. Crafted with premium components, the NCO-UZC-6-EWC-Controls provides exceptional durability and reliability even in demanding industrial environments. Its compact design allows for flexible installation, making it an ideal solution for space-constrained applications. With its user-friendly interface and intuitive controls, this control panel empowers industrial engineers and maintenance professionals with precise command over their systems. The NCO-UZC-6-EWC-Controls is an essential tool for optimizing industrial operations, enhancing productivity, and maximizing uptime. Our HVAC supply store offers the NCO-UZC-6-EWC-Controls at competitive prices, ensuring you get the best value for your investment. Our fast shipping ensures minimal downtime, allowing you to quickly enhance your industrial automation capabilities.

Specifications

INPUT VOLTAGE: 19-30VAC 60 Hz Transformer 40-60VA MAX. NEC Class 2.

CURRENT DRAW: Max 14VA @ 24VAC.

OVER-CURRENT PROTECTION: 2.5 amp or 60 VA.

WIRING: 18 gauge Solid copper wire. Do not use Stranded or Shielded Cable.

TEMPERATURE: -20° to 160°F (-29° to 71°C).

HUMIDITY: 0% - 95% RH Non-Condensing.

Features

NUMBER OF ZONES:
2 - 3 Zones, Non-expandable.

COMPATIBLE EQUIPMENT:
Gas/Electric/Hydro – Up to 2 Stages Heating and 1 Stage Cooling.
Heat Pump Conventional – Up to 2 Stages Heating and 1 Stage Cooling.

COMPATIBLE THERMOSTATS:
Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat.

COMPATIBLE DAMPERS:
EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.

ACCESSORIES:
Model SAS – Supply air sensor (Included)
Model CPLS – Coil Protection Lockout Switch.

ADDITIONAL FEATURES:
*Staging via Adjustable On-board Timer (7 to 42 Minutes).
*Enhanced Hydro-Air capabilities, can delay fan activation on Heating demand.
*Supply Air Temperature Monitoring to help protect HVAC equipment.
*Adjustable Purge time (90 or 120 seconds).
*On Board LED’s indicate system operation.
