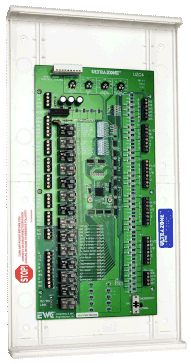

EWC Controls UZC-4 4 ZONE CONTROL PANEL AUTO CHNG The EWC Controls UZC-4 is a 4-zone control panel that provides automatic changeover between zones. This makes it ideal for applications where multiple zones need to be controlled independently but with a single panel. The UZC-4 is designed for use with EWC Controls zone dampers and is compatible with most other brands of dampers. The UZC-4 features a built-in controller that allows for easy setup and operation. The controller has a simple user interface with a backlit LCD display. The display shows the current zone settings and the status of the dampers. The controller also has a built-in timer that can be used to automatically change between zones at a specified time interval. The UZC-4 is constructed of heavy-duty steel and is designed for long-lasting performance. It is also UL listed and CSA certified. Do not let HVAC control issues interrupt your processes. Call our HVAC supply store today for the EWC Controls UZC-4-EWC.

FEATURES

• NUMBER OF ZONES: 2, 3, or 4 Zones, expandable to 22 zones using ZXM-2 expansion modules. See 090377A0144 rev. B.
• COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling. Heat Pump Conventional or Dual Fuel – Up to 4 Stages Heating and 2 Stages Cooling.
• COMPATIBLE THERMOSTATS: Any single or two stage Heat/Cool Thermostat or 4 Stage Heat, 2 Stage Cool Heat Pump Thermostat.
• COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper

ADDITIONAL FEATURES

• *Staging via Multi-Stage Thermostats, Adjustable On-board Timer, or Outdoor Air Sensor (7 to 42 Minutes or 7° to 42°F).
• *50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling.
• *Variable Speed Fan Reduction Control, if less than 25% of total zones are demanding cooling.
• *Fire Alarm Interlock feature, shuts down HVAC system and closes all connected dampers.
• *Enhanced Dehumidify Feature and Supply/Return Air Temperature Monitoring.
• *Fresh Air Damper Terminal Block with Indoor Blower Interlock. Activated by Co2 dry contact closure
