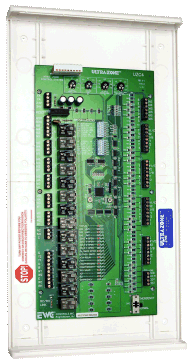

EWC Controls UZC-10: Advanced Zone Control for Industrial AutomationEWC Controls UZC-10 is a sophisticated 10-zone control panel designed to provide precise automation and monitoring in industrial settings. Its robust construction and advanced features make it an ideal solution for managing complex processes and equipment.Technical Specifications:Model: UZC-10Zones: 10Control Type: Programmable logic controller (PLC)Input/Output Ports: Multiple digital and analog I/O for connecting sensors, actuators, and other devicesPower Supply: 24 VAC or VDCFeatures and Benefits:User-friendly Programming: The PLC platform allows for easy programming using ladder logic or structured text, enabling customized control sequences.Real-Time Monitoring: The control panel continuously monitors process parameters, providing real-time data for decision-making and troubleshooting.Remote Access: Optional remote access capabilities allow for monitoring and control from anywhere with an internet connection.Enhanced Safety: Advanced safety features ensure reliable operation, preventing unauthorized access and protecting against electrical hazards.Versatile Applications: EWC Controls UZC-10 is suitable for a wide range of industrial applications, including automation of production lines, machinery, and environmental control systems.Conclusion:Harness the power of EWC Controls UZC-10 to elevate your industrial automation. Minimize downtime, optimize processes, and ensure safety with this advanced 10-zone control panel. Our HVAC supply store is your trusted partner for EWC Controls products, offering competitive prices and fast shipping. Upgrade your operations today!
Specifications
INPUT VOLTAGE: 24Vac 50/60 Hz Listed
TRANSFORMER 40-100Va MAX. NEC Class 2.
POWER DRAW: Max 23 VA @ 24VAC.
OVER-CURRENT PROTECTION:
PANEL: 4.0 amp or 100 VA
DAMPERS: 2.5 amp or 60VA.
WIRING: 18awg solid copper wire. Do not use
stranded wire. Shielded cable is unnecessary.
KNOCKOUTS: 3/4” available at Top, Bottom &
Back of molded Impact Resistant Housing.
TEMPERATURE: -20° to 160°F (-29° to 71°C).
HUMIDITY: 0% - 95% RH Non-Condensing.
Features
NUMBER OF ZONES: 2, 3, or 4 Zones, expandable to 22 zones using ZXM-2 expansion modules. See 090377A0144 rev. B.
COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling.
Heat Pump Conventional or Dual Fuel – Up to 4 Stages Heating and 2 Stages Cooling.
COMPATIBLE THERMOSTATS: Any single or two stage Heat/Cool Thermostat or 4 Stage Heat, 2 Stage Cool Heat Pump Thermostat.
COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper
