TW2XAXH | Veris TW2 Series Temperature Sensor, Wall, 10K Type 3 Thermistor | Veris Industries

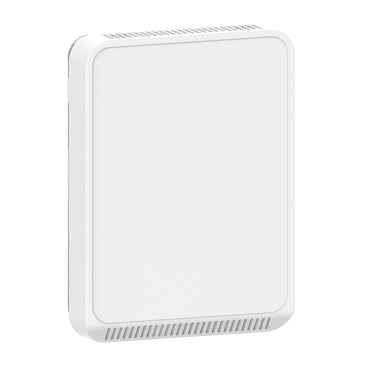

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2XAXH
Documents and manuals
Veris Industries TW2XAXH Documents
Overview
Details for TW2XAXH
WALL TEMP SENSOR 10K TYPE III [TW2XAXH]
Veris Industries' TW2XAXH is a wall-mounted temperature sensor designed to accurately measure and monitor the temperature of surfaces in various industrial environments. It features a durable construction and advanced sensing technology to provide reliable and precise temperature data.
Key Features:
- Wall-mounted design for easy installation and placement
- 10k ohm type III sensor for precise temperature measurement
- Measures temperatures up to 120°C (248°F)
- Compatible with most temperature monitoring systems
Applications:
- Monitoring surface temperatures in HVAC systems
- Industrial process control and automation
- Environmental monitoring
- Equipment health and maintenance
Benefits:
- Accurate and reliable temperature measurement
- Easy installation and maintenance
- Durable construction for harsh industrial environments
- Compatible with various monitoring systems
At our HVAC supply store, we offer the best prices and fast shipping for your industrial supply needs. Contact us today to place your order for the Veris Industries TW2XAXH wall temperature sensor and enhance your temperature monitoring capabilities. The Veris TW2 Series of temperature sensors for rooms is a versatile sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC, 0 to 10 V DC or resistive thermistor outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 10K Type 3 Thermistor element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Product or Component Type
- Sensor
- Type of Measurement
- Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Output Type
- Analog
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Relative Humidity
- 0…95 %
- Sensor Type
- 10 kOhm T3 thermistor
- Product name
- SpaceLogic Room Unit
- Function Available
- With temperature sensor
- Surface Finish
- Matte
- Range
- SpaceLogic
- Device presentation
- Complete product
- Communication Network Type
- Wired
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- Number of Outputs
- 1 fan, 1 configurable
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Material
- ABS (acrylonitrile butadiene-styrene)
- [Us] rated supply voltage
- 24 V AC 50-60 Hz, 20...30 V DC
- display type
- Without Display
- communication port protocol
- -
- measurement accuracy
- Typical +/- 0.2 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- measurement range
- 0...50 °C temperature
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- GTIN
- 3606481902559
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 2.20 lb(US) (1 kg)
