TW2XAXD | Veris TW2 Series Temperature Sensor, Wall, 10K Type 2 Thermistor | Veris Industries
$40.29
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Veris IndustriesSKU: TW2XAXD
Availability: Get a Quote
The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

TW2XAXD | Veris TW2 Series Temperature Sensor, Wall, 10K Type 2 Thermistor | Veris Industries

Veris Industries | TW2XAXD

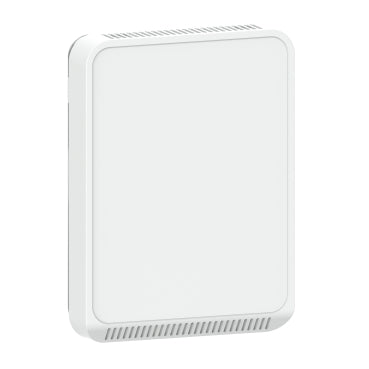

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2XAXD

Documents and manuals

Veris Industries TW2XAXD Documents

Overview

Details for TW2XAXD

Veris Industries' NCO-TW2XAXD Wall Temp Sensor is a top-of-the-line temperature sensing device designed for industrial applications. It features a 10k Type 2 sensor, providing accurate temperature readings in a wide range of environments. The NCO-TW2XAXD is designed for wall mounting, making it easy to install and position for optimal temperature monitoring. Its rugged construction ensures reliable operation in harsh industrial conditions. The sensor's compact size allows for easy integration into existing systems, while its high accuracy and fast response time make it an ideal choice for critical temperature monitoring applications. Trust Veris Industries' NCO-TW2XAXD Wall Temp Sensor for precise and reliable temperature monitoring in your industrial operations. Our HVAC supply store offers the best prices and fast shipping for your NCO-TW2XAXD sensor needs! The Veris TW2 Series of temperature sensors for rooms is a versatile sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC, 0 to 10 V DC or resistive thermistor outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 10K Type 2 Thermistor element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

Product or Component Type
Sensor
Type of Measurement
Temperature
Device Application
HVAC, Temperature control, Fan speed controller
Location
Living Space
Mounting Support
Wall Mount
Depth
0.94 in (24 mm)
Height
3.35 in (85 mm)
Width
4.53 in (115 mm)
Network Frequency
50 Hz, 60 Hz
Output Type
Analog
Standards
UL 916, FCC Part 15 class B
Color
White
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Relative Humidity
0…95 %
Sensor Type
10 kOhm T2 thermistor
Product name
SpaceLogic Room Unit
Function Available
With temperature sensor
Surface Finish
Matte
Range
SpaceLogic
Device presentation
Complete product
Communication Network Type
Wired
connections - terminals
Screw terminal - 2 AWG 24...AWG 18)
output voltage
0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
Number of Outputs
1 fan, 1 configurable
range compatibility
EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Material
ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage
24 V AC 50-60 Hz, 20...30 V DC
display type
Without Display
communication port protocol
-
measurement accuracy
Typical +/- 0.2 %
Temperature setting range
50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
measurement range
0...50 °C temperature
product certifications
CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
GTIN
3606481902542
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
2.20 lb(US) (1 kg)
