TW2LAXA | Veris TW2 Series Sensor, Wall, Temperature, Segmented LCD, Temperature Transmitter | Veris Industries

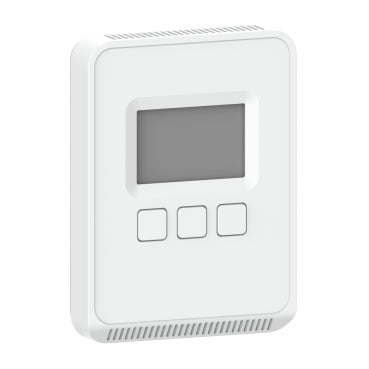

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2LAXA
Documents and manuals
Veris Industries TW2LAXA Documents
Overview
Details for TW2LAXA
Veris Industries 32-122F Wall Mount Temperature Sensor: Essential for Industrial Temperature MonitoringThe Veris Industries 32-122F Wall Mount Temperature Sensor is a reliable and accurate device designed for precise temperature measurement in industrial settings. This sensor is ideal for monitoring temperature in various applications, including HVAC systems, manufacturing processes, and environmental control.Key Features:Wall Mount Design: The sensor is designed for easy installation on walls, making it convenient to place in areas where temperature monitoring is crucial.Durable Construction: Built with robust materials, the sensor ensures longevity and resistance to harsh industrial environments.Accurate Measurement: Provides precise temperature readings within the range of -40°F to 150°F, ensuring reliable data for temperature monitoring.Applications:The Veris Industries 32-122F Wall Mount Temperature Sensor finds applications in diverse industries, including:HVAC Systems: Monitoring and controlling temperature levels in heating, ventilation, and air conditioning systems.Manufacturing Processes: Ensuring optimal temperature conditions for production processes, such as temperature-sensitive materials handling.Environmental Control: Monitoring temperature in warehouses, storage facilities, and other areas where temperature control is essential.Maximize efficiency and reliability in your industrial operations with the Veris Industries 32-122F Wall Mount Temperature Sensor. Our HVAC supply store offers competitive prices and fast shipping for your industrial equipment needs. Shop now and enhance your temperature monitoring capabilities! The Veris TW2 Series of temperature sensors for rooms is a versatile sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC, 0 to 10 V DC or resistive thermistor outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Product or Component Type
- Sensor
- Type of Measurement
- Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Display size
- 2 inch
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Output Type
- Analog
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Relative Humidity
- 0…95 %
- Sensor Type
- Transmitter
- Product name
- SpaceLogic Room Unit
- Function Available
- With temperature sensor
- Surface Finish
- Matte
- Range
- SpaceLogic
- Device presentation
- Complete product
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface
- Communication Network Type
- Wired
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- Number of Outputs
- 1 fan, 1 configurable
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- [Us] rated supply voltage
- 24 V AC 50-60 Hz, 20...30 V DC
- display type
- LCD display
- communication port protocol
- -
- measurement accuracy
- Typical +/- 0.2 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- measurement range
- 0...50 °C temperature
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- GTIN
- 3606481902368
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
