TSX3-500132 | Digital refrigeration temperature switch | three outputs | two temperature probe inputs | 115V supply power | with red display. | Dwyer Instruments

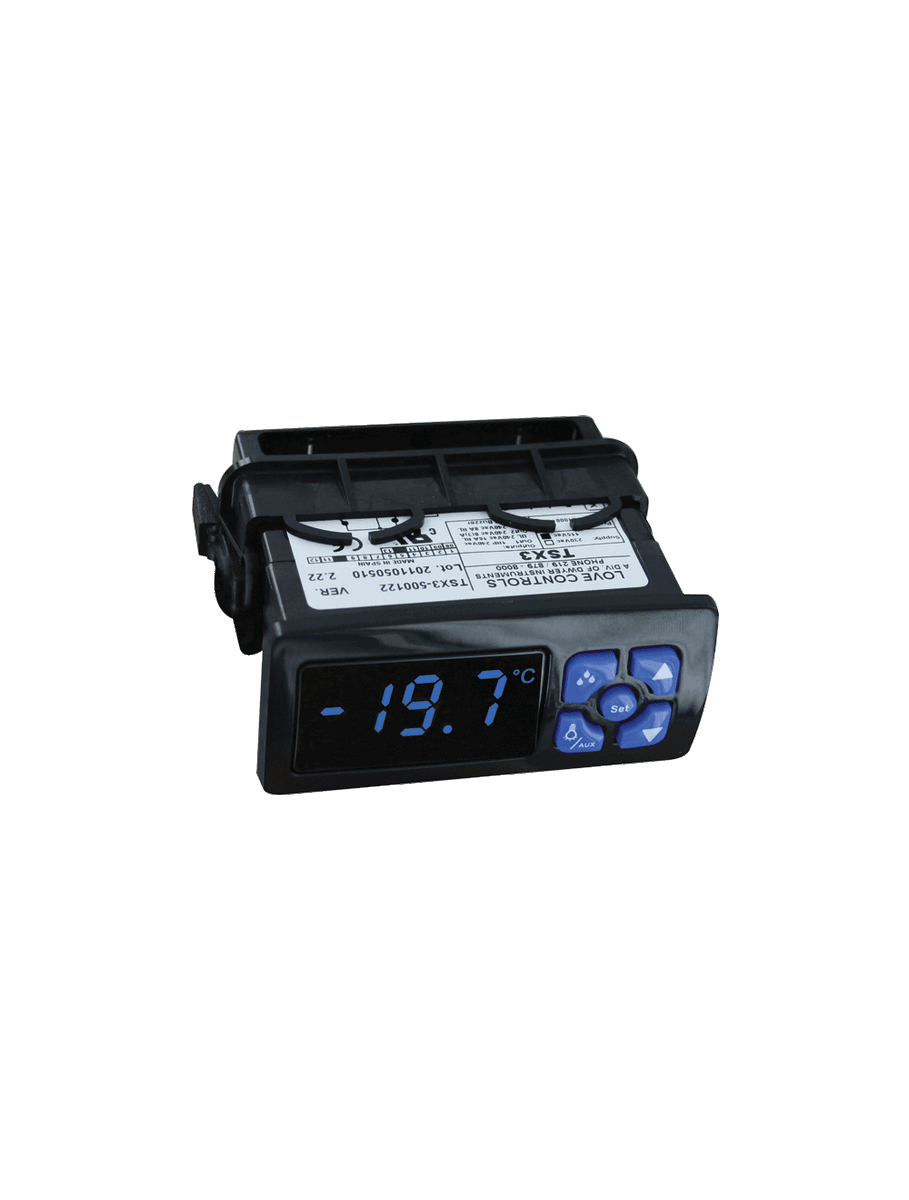

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSX3-500132

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSX3-500132 Documents

Instruction Manual Series TSX3 Catalog Page More Info

Overview

Details for TSX3-500132

The Dwyer Instruments TSX3-500132 is a versatile digital temperature switch designed to monitor and control temperature in industrial settings. Featuring a robust construction and advanced microprocessor technology, this switch ensures precise temperature regulation and reliable performance. Built with a rugged polycarbonate housing rated IP65, the TSX3-500132 withstands harsh industrial environments. Its wide temperature range of -40Â°F to 302Â°F (-40Â°C to 150Â°C) makes it suitable for various applications requiring precise temperature control. This switch offers adjustable hysteresis to minimize temperature cycling and prevent rapid switching. It utilizes a bright, backlit LCD display for clear visibility and ease of operation. The TSX3-500132 provides two SPDT relays for alarm and control functions. Applications for the TSX3-500132 include monitoring temperature in HVAC systems, industrial machinery, process control, food and beverage, and medical environments. Our HVAC supply store is your trusted source for the TSX3-500132 and other industrial automation products. We offer competitive pricing, fast shipping, and dedicated customer support. Contact us today to discuss your temperature control requirements!

SERIES TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH

Intelligent Defrost, HACCP Alarm Logging

The Series TSX3 Digital Refrigeration Temperature Switch was designed to control the compressor, fan, and defrost in refrigeration applications. This generation of controls has field selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked. A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures out of their set limits or loss of power. The Intelligent Defrost parameters manage the defrost cycle in order to save energy cost. The digital input can be used to remotely trigger a defrost cycle, monitor cooler door status, or act as an external alarm. For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.

Product Applications

Refrigerators

Field selectable °F or °C
Real time clock
HACCP alarm logging
Configuration key
2 or 3 output models for complete refrigerator control
2 temperature sensor and 1 digital contact inputs

Specifications

Series: TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC (1000 Ω @ 25°C); NTC (10K Ω @ 25°C); Digital Input Contact.
Output: All models SPST NO relay resistive load 16 A; inductive load 5 A; 10 FLA; 60 LRA @ 240 VAC; dual output models also include 8 A resistive; 3 A inductive SPDT @ 240 VAC; three output models also include 8 A resistive SPST NO @ 240 VAC; 5 A resistive SPST NO @ 240 VAC.
Horsepower Rating: 1HP @ 240 VAC.
Control Type: On/Off.
Power Requirement: 115 VAC; 230 VAC; 12 VAC/VDC; 24 VAC/DC (±10%) depending on model.
Power Consumption: 3.6 VA (115/230/24 V); 1.5 VA (12 V).
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: 0.1°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 131°F (0 to 55°C).
Weight: 2.3 oz (65 g).
Front Protection: IP65 (NEMA 4X).
Agency Approvals: CE; cURus.
