TSW-260 | Weatherproof digital temperature switch | dual stage | 12 to 24 VAC/VDC power supply | Dwyer Instruments

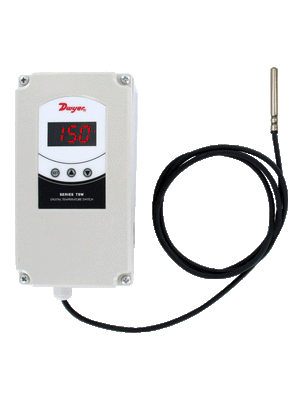

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSW-260

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSW-260 Documents

TSW-1 Instruction Manual TSW-2 Instruction Manual Series TSW Catalog Page TSW More Info

Overview

Details for TSW-260

Dwyer Instruments' TSW-260 is a temperature switch designed for precise temperature control in industrial applications. This versatile switch operates on 12-24VAC/VDC, making it suitable for various electrical systems. The TSW-260 features a rugged construction that ensures reliability and durability in harsh environments. With its compact design, it easily fits into limited spaces. The TSW-260 offers high accuracy and repeatability, ensuring consistent performance. Its adjustable temperature range allows for precise control over a wide range of temperature requirements. The switch provides excellent vibration and shock resistance, making it suitable for use in demanding conditions. Our HVAC supply store offers the TSW-260 at competitive prices with fast shipping. Trust us to provide you with the best products and services for your industrial needs. Shop now!

SERIES TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH

NEMA 4X Housing, Single or Dual Stage, 20 A Contact Rating

The Series TSW Weatherproof Digital Temperature Switch combines the trusted, reliable TS familyof temperature controls and an installation friendly weatherproof enclosure. Thebright, easy-to-read LED display shows the current output status and the temperaturemeasurement.

Product Applications

Chillers
Walk in cooler
Wood boilers
Brewing systems

Weatherproof housing
Single or dual stage models
Configuration key
Physical and passcode parameter setting protection
TS-8T temperature probe included

Specifications

Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Output: R1 SPDT relay resistive load:20 A @ 240 VAC; R2 SPDT relayresistive load: 8 A @ 240 VAC; Inductiveload: 3 A @ 240 VAC.
Horsepower Rating: R1 2HP @ 240VAC.
Control Type: On/off.
Power Requirements: 90 to 255 VAC or 12 to 24 VAC/VDC (±10%)depending on model.
Power Consumption: 3.6 VA.
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: Single stage: 1°; Dual stage: 0.1° < 100; 1° = 100°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 104°F (0 to 40°C).
Weight: 1.2 lbs (544 g).
Enclosure Rating: NEMA 4X (IP66).
Agency Approvals: CE; cURus.
