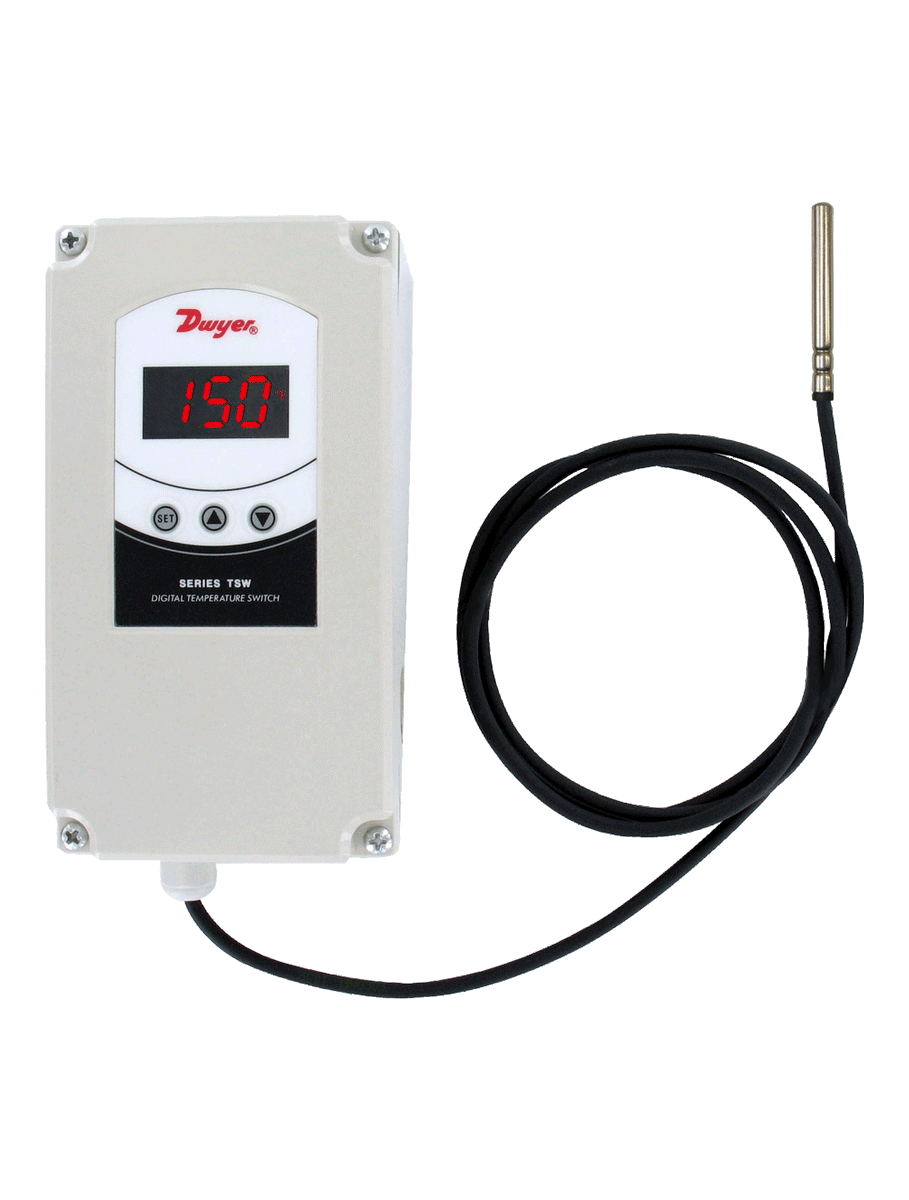

TSW-250 | Weatherproof digital temperature switch | dual stage | 90 to 255 VAC power supply | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSW-250

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSW-250 Documents

TSW-1 Instruction Manual TSW-2 Instruction Manual Series TSW Catalog Page TSW More Info

Overview

Details for TSW-250

The Dwyer Instruments TSW-250 is a temperature switch with a wide temperature range of 90-255VAC. It features a compact design and is easy to install. The TSW-250 is ideal for use in a variety of applications, including temperature control, process monitoring, and safety systems. Key Features: * Temperature range: 90-255VAC * Compact design * Easy to install * Versatile applications * Durable construction Benefits: * Provides precise temperature control * Helps to prevent equipment damage * Ensures safety * Reduces downtime * Improves productivity Applications: * Temperature control * Process monitoring * Safety systems * HVAC systems * Industrial equipment * Manufacturing Shop now at our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments TSW-250 temperature switch!

SERIES TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH

NEMA 4X Housing, Single or Dual Stage, 20 A Contact Rating

The Series TSW Weatherproof Digital Temperature Switch combines the trusted, reliable TS familyof temperature controls and an installation friendly weatherproof enclosure. Thebright, easy-to-read LED display shows the current output status and the temperaturemeasurement.

Product Applications

Chillers
Walk in cooler
Wood boilers
Brewing systems

Weatherproof housing
Single or dual stage models
Configuration key
Physical and passcode parameter setting protection
TS-8T temperature probe included

Specifications

Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Output: R1 SPDT relay resistive load:20 A @ 240 VAC; R2 SPDT relayresistive load: 8 A @ 240 VAC; Inductiveload: 3 A @ 240 VAC.
Horsepower Rating: R1 2HP @ 240VAC.
Control Type: On/off.
Power Requirements: 90 to 255 VAC or 12 to 24 VAC/VDC (±10%)depending on model.
Power Consumption: 3.6 VA.
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: Single stage: 1°; Dual stage: 0.1° < 100; 1° = 100°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 104°F (0 to 40°C).
Weight: 1.2 lbs (544 g).
Enclosure Rating: NEMA 4X (IP66).
Agency Approvals: CE; cURus.
