TSW-160 | Weatherproof digital temperature switch | single stage | 12 to 24 VAC/VDC power supply | Dwyer Instruments

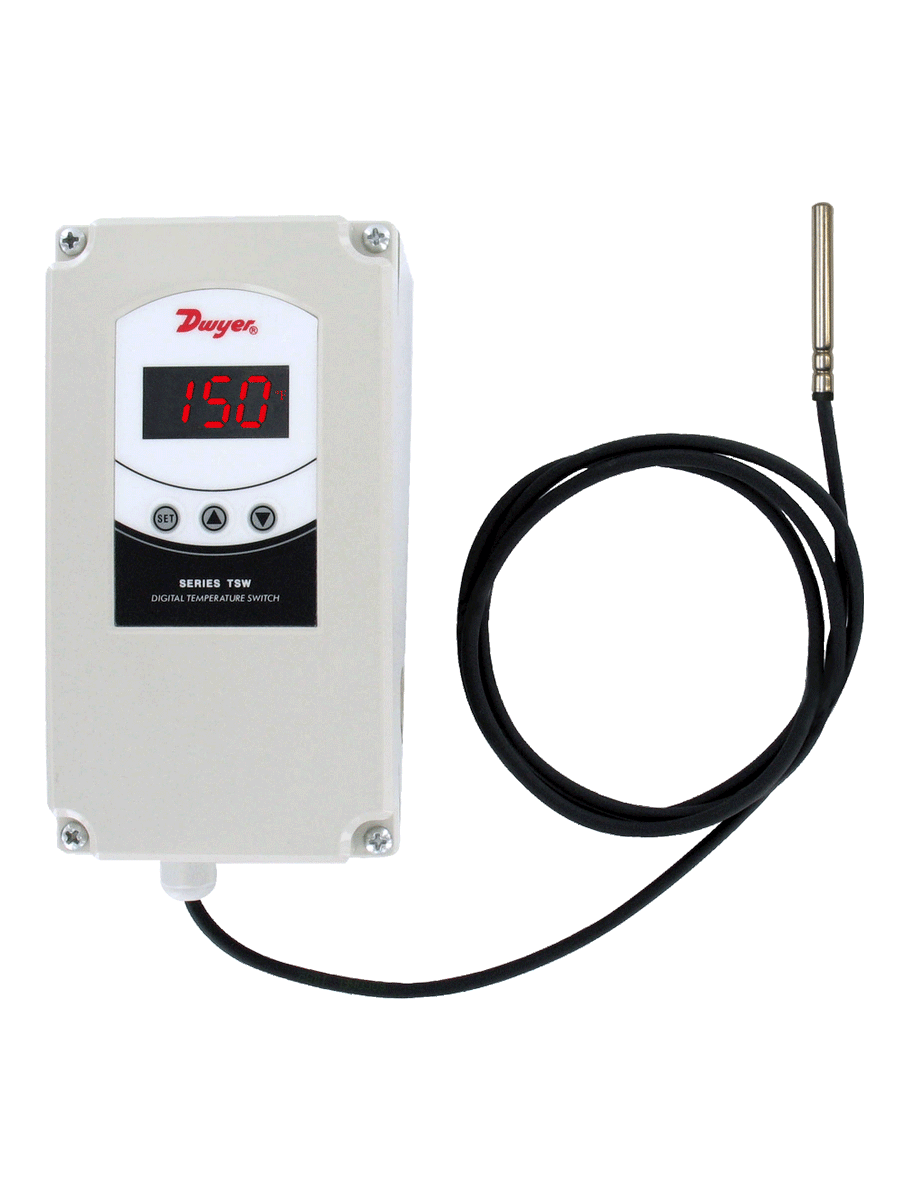

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSW-160

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSW-160 Documents

TSW-1 Instruction Manual TSW-2 Instruction Manual Series TSW Catalog Page TSW More Info

Overview

Details for TSW-160

Dwyer Instruments TSW-160: 1-Stage Digital Temperature Switch with Weatherproof Enclosure The Dwyer Instruments TSW-160 is a compact and reliable temperature switch designed to meet the demands of industrial applications. Its weatherproof enclosure ensures durability and protection against harsh environmental conditions, making it ideal for outdoor or indoor use. The switch features a single-stage design and a digital display for precise temperature monitoring and control. Key Features and Benefits: 1. Weatherproof Enclosure: The rugged enclosure protects the switch from rain, dust, and other elements, ensuring reliable operation in outdoor environments. 2. Digital Display: The easy-to-read digital display provides clear and accurate temperature readings for convenient monitoring. 3. Single-Stage Design: The switch offers a simple and straightforward operation with a single set point for temperature control. 4. Compact Size: Its compact dimensions make it suitable for installation in confined spaces or on equipment where space is limited. 5. Industrial Applications: The TSW-160 is ideal for temperature monitoring and control in various industrial settings, such as manufacturing, HVAC, and process control systems. Shop this versatile temperature switch from our HVAC supply store today and benefit from our competitive prices and fast shipping!

SERIES TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH

NEMA 4X Housing, Single or Dual Stage, 20 A Contact Rating

The Series TSW Weatherproof Digital Temperature Switch combines the trusted, reliable TS familyof temperature controls and an installation friendly weatherproof enclosure. Thebright, easy-to-read LED display shows the current output status and the temperaturemeasurement.

Product Applications

Chillers
Walk in cooler
Wood boilers
Brewing systems

Weatherproof housing
Single or dual stage models
Configuration key
Physical and passcode parameter setting protection
TS-8T temperature probe included

Specifications

Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Output: R1 SPDT relay resistive load:20 A @ 240 VAC; R2 SPDT relayresistive load: 8 A @ 240 VAC; Inductiveload: 3 A @ 240 VAC.
Horsepower Rating: R1 2HP @ 240VAC.
Control Type: On/off.
Power Requirements: 90 to 255 VAC or 12 to 24 VAC/VDC (±10%)depending on model.
Power Consumption: 3.6 VA.
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: Single stage: 1°; Dual stage: 0.1° < 100; 1° = 100°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 104°F (0 to 40°C).
Weight: 1.2 lbs (544 g).
Enclosure Rating: NEMA 4X (IP66).
Agency Approvals: CE; cURus.
