TSS2-2410 | Dual stage temperature switch | °C | 24 VAC/DC. | Dwyer Instruments

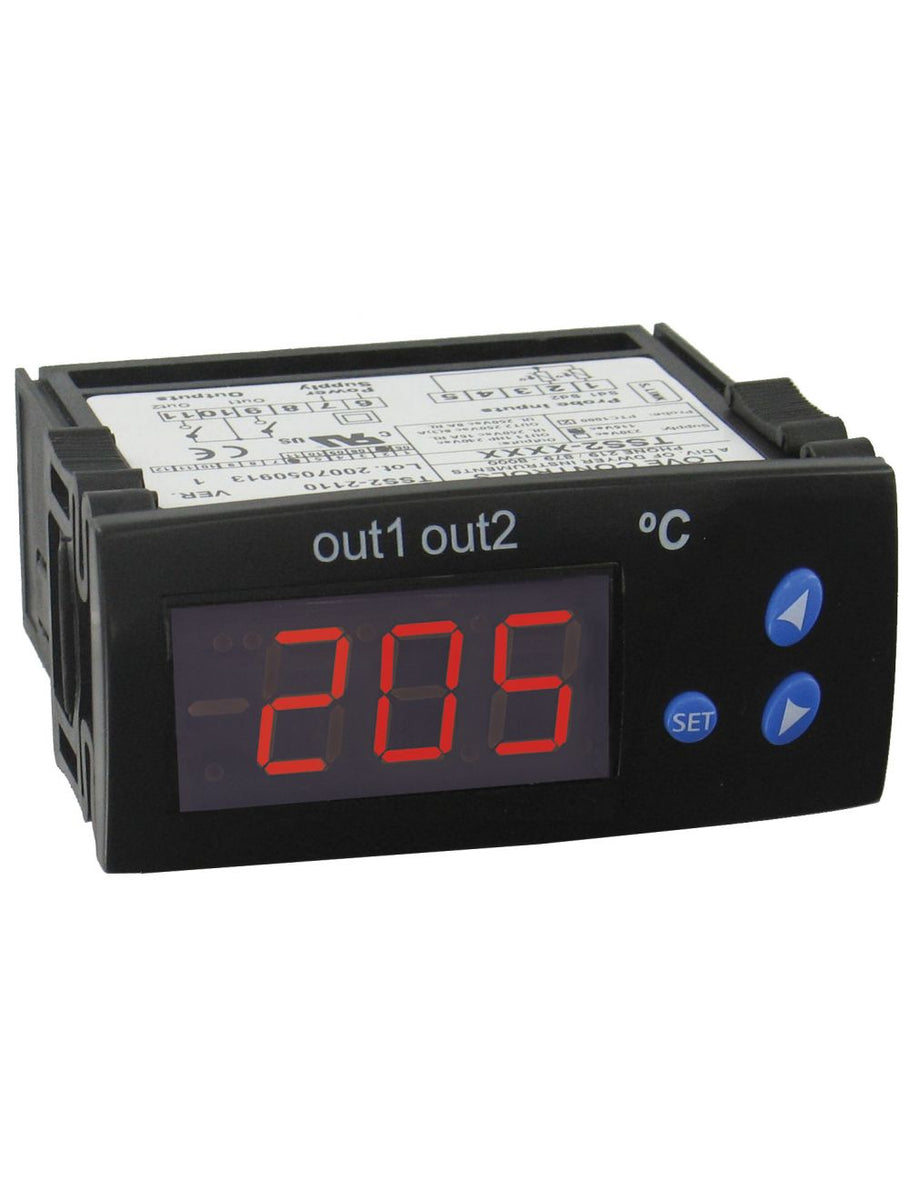

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSS2-2410

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSS2-2410 Documents

Instruction Manual Series TSS2 Catalog Page More Info

Overview

Details for TSS2-2410

Dwyer Instruments TSS2-2410 Dual Stage Temperature Switch The TSS2-2410 from Dwyer Instruments is a highly reliable dual stage temperature switch designed for industrial applications. It features a dual-stage design, providing two independent control points for precise temperature monitoring. With a compact size and rugged construction, the TSS2-2410 is suitable for a wide range of temperature control scenarios. Key Features: * Dual-stage design allows for two independent setpoints * Heavy-duty construction ensures durability and longevity * Highly accurate and reliable temperature monitoring * Adjustable setpoints for precise control * Compact size for easy installation * Operates on 24VAC Applications: * Industrial temperature control systems * Process heating and cooling * HVAC systems * Liquid and gas temperature monitoring * Boiler temperature control Technical Specifications: * Temperature Range: 0Â°F to 230Â°F (-18Â°C to 110Â°C) * Accuracy: Â±2Â°F (Â±1Â°C) * Repeatability: Â±1Â°F (Â±0.5Â°C) * Differential: Adjustable 0.1Â°F to 2.0Â°F (0.05Â°C to 1.0Â°C) * Electrical Rating: 10A @ 24VAC Our HVAC supply store is your trusted supplier of Dwyer Instruments products. Contact us today for the best prices and fast shipping.

SERIES TSS2 DUAL STAGE TEMPERATURE SWITCH

Two Independent Relay Outputs, Heating or Cooling Control

The Series TSS2 Dual Stage Temperature Switch features two independent sensor inputs and control outputs in one device.

Product Applications

Refrigerators
Chillers
Food service equipment
Medical sterilizers or equipment

Simple to use dual temperature control device
Configuration key

Specifications

Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Probe Range: PTC: - 58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Outputs: OUT1=SPDT relay rated 16 A @ 240 VAC resistive; OUT2=SPDT relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP (OUT1).
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Accuracy: ±1% of FS.
Display: 3-digit and sign; red LED.
Resolution: 0.1° (<100°); 1° (≥100°).
Memory Backup: Nonvolatile memory.
Temperature Limit: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Dimensions: 3 x 1-27/64 x 2-7/16 in.
Front Panel Rating: IP64.
Weight: 2.3 oz (65 g).
Agency Approvals: CE; cURus.
