TSS2-2400 | DUAL STAGE TEMP SWITCH 24VAC | Dwyer Instruments

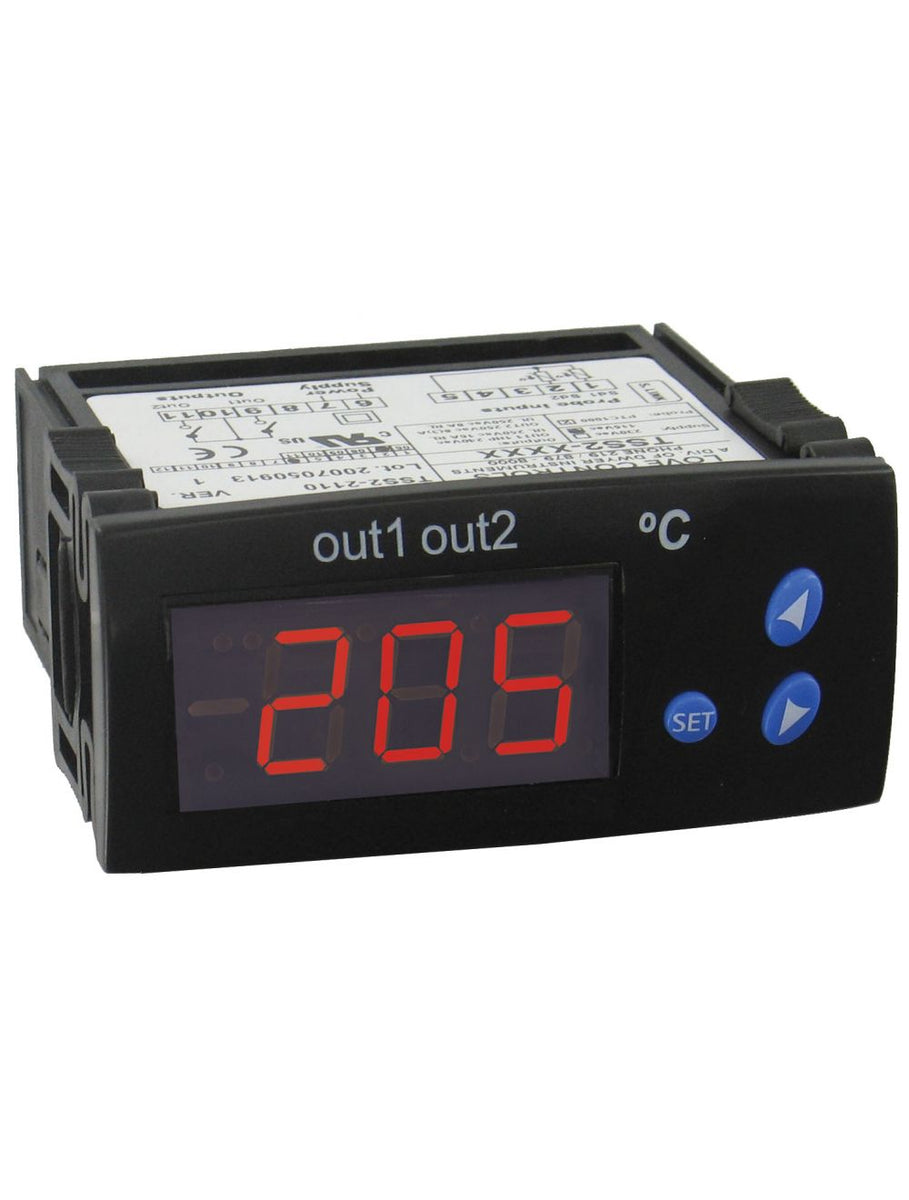

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSS2-2400

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSS2-2400 Documents

Instruction Manual Series TSS2 Catalog Page More Info

Overview

Details for TSS2-2400

Dwyer Instruments TSS2-2400 DUAL STAGE TEMP SWITCH 24VACThe Dwyer Instruments TSS2-2400 is a dual stage temperature switch designed for industrial applications. It features a compact design and rugged construction, making it suitable for use in harsh environments. The TSS2-2400 offers precise temperature control and monitoring with its adjustable set points and SPDT contacts.Technical Specifications: - Model: TSS2-2400 - Brand: Dwyer Instruments - Temperature Range: -40 to 240Â°F (-40 to 115Â°C) - Temperature Differential: Adjustable - Set Point Accuracy: Â±2Â°F (Â±1Â°C) - Electrical Rating: 24VAC, 10A - Contact Type: SPDT - Enclosure Rating: NEMA 4X - Approvals: UL, CSA Applications: - Industrial machinery - HVAC systems - Process control - Thermal equipment our HVAC supply store offers the best prices and fast shipping for your products!

SERIES TSS2 DUAL STAGE TEMPERATURE SWITCH

Two Independent Relay Outputs, Heating or Cooling Control

The Series TSS2 Dual Stage Temperature Switch features two independent sensor inputs and control outputs in one device.

Product Applications

Refrigerators
Chillers
Food service equipment
Medical sterilizers or equipment

Simple to use dual temperature control device
Configuration key

Specifications

Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Probe Range: PTC: - 58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Outputs: OUT1=SPDT relay rated 16 A @ 240 VAC resistive; OUT2=SPDT relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP (OUT1).
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Accuracy: ±1% of FS.
Display: 3-digit and sign; red LED.
Resolution: 0.1° (<100°); 1° (≥100°).
Memory Backup: Nonvolatile memory.
Temperature Limit: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Dimensions: 3 x 1-27/64 x 2-7/16 in.
Front Panel Rating: IP64.
Weight: 2.3 oz (65 g).
Agency Approvals: CE; cURus.
