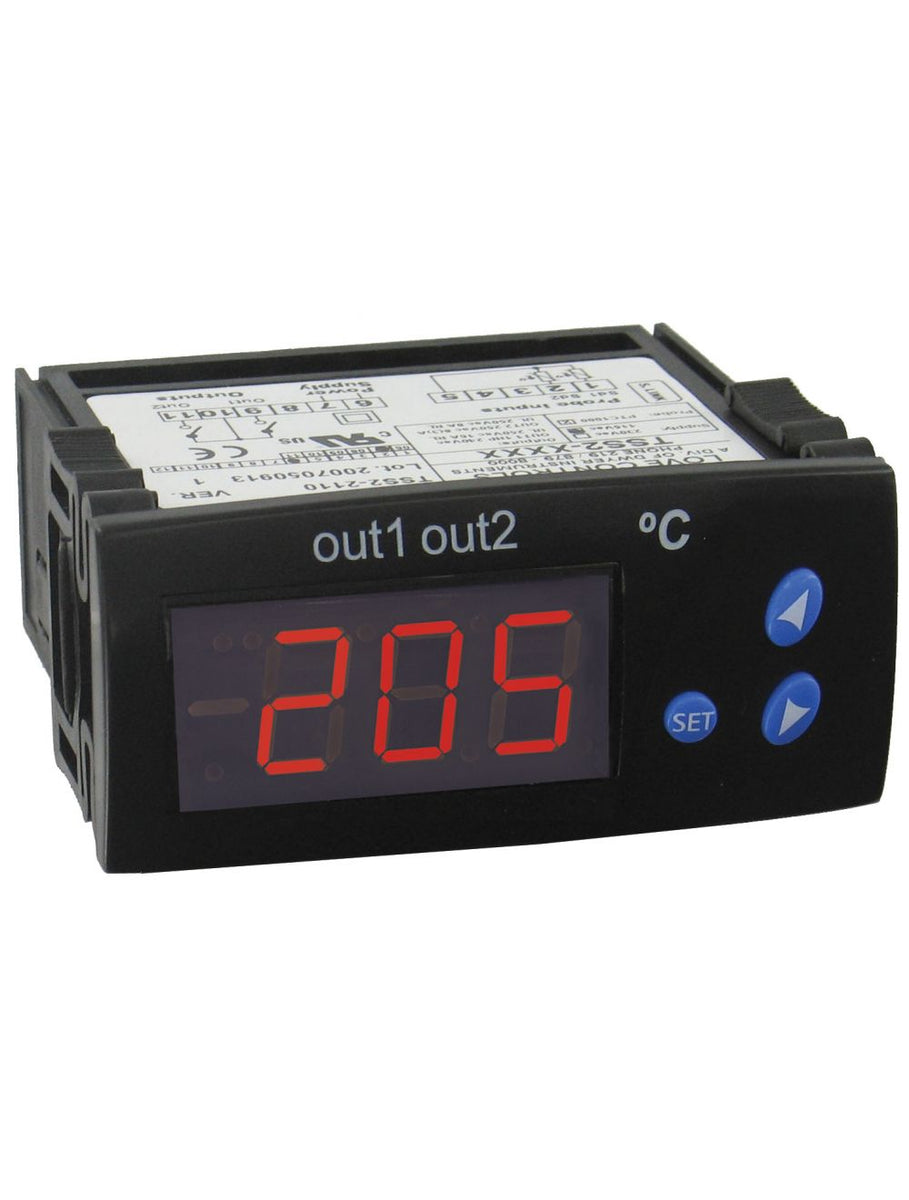

TSS2-2100 | Dual stage temperature switch | °F | 115 VAC. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSS2-2100

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSS2-2100 Documents

Instruction Manual Series TSS2 Catalog Page More Info

Overview

Details for TSS2-2100

TSS2-2100 Dual Stage Temperature Switch The TSS2-2100 by Dwyer Instruments is a dual stage temperature switch designed for precise temperature control in industrial applications. This versatile switch features two adjustable set points, allowing for independent control of two separate temperature ranges. Constructed with durable materials, the TSS2-2100 offers reliable performance in harsh environments. Its compact design and wide operating temperature range make it suitable for a variety of applications, including temperature monitoring of process lines, machinery, and HVAC systems. Key Features: * Dual stage design provides independent control of two temperature ranges * Adjustable set points allow for precise temperature regulation * Wide operating temperature range from -65Â°C to 150Â°C * Compact size and rugged construction for harsh environments * LED indicators for clear status monitoring Applications: * Process temperature monitoring * Equipment temperature control * HVAC system temperature regulation * Industrial automation and control Shop now at our HVAC supply store for the best prices and fast shipping!

SERIES TSS2 DUAL STAGE TEMPERATURE SWITCH

Two Independent Relay Outputs, Heating or Cooling Control

The Series TSS2 Dual Stage Temperature Switch features two independent sensor inputs and control outputs in one device.

Product Applications

Refrigerators
Chillers
Food service equipment
Medical sterilizers or equipment

Simple to use dual temperature control device
Configuration key

Specifications

Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Probe Range: PTC: - 58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Outputs: OUT1=SPDT relay rated 16 A @ 240 VAC resistive; OUT2=SPDT relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP (OUT1).
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Accuracy: ±1% of FS.
Display: 3-digit and sign; red LED.
Resolution: 0.1° (<100°); 1° (≥100°).
Memory Backup: Nonvolatile memory.
Temperature Limit: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Dimensions: 3 x 1-27/64 x 2-7/16 in.
Front Panel Rating: IP64.
Weight: 2.3 oz (65 g).
Agency Approvals: CE; cURus.
