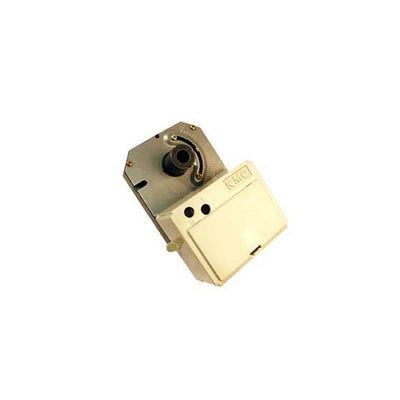

TSP-5002 | Actuator: Proportional with Airflow Trans, 50 in-lbs, 18 degress/min | KMC Controls

KMC Controls TSP-5002 AirFlowTran: The Precise Airflow Control Solution The KMC Controls TSP-5002 AirFlowTran is an industrial-grade airflow control device that provides precise and reliable airflow management for various applications. Engineered with a 2-10vdc input and an airflow rate of 18'/minute, this AirFlowTran offers exceptional accuracy and efficiency. Its robust construction ensures durability and longevity in harsh industrial environments. The TSP-5002 is ideal for applications requiring precise airflow control, such as ventilation systems, HVAC systems, and process control applications. Features: - Accurate airflow control with 2-10vdc input - Fast response time of 18'/minute - Durable construction for industrial environments - Compact design for easy installation and maintenance Applications: - Ventilation systems - HVAC systems - Process control applications - Manufacturing and industrial machinery - Environmental control systems Our HVAC supply store offers the best prices and fast shipping for your KMC Controls TSP-5002 AirFlowTrans. Shop now and experience the precision and reliability of KMC Controls airflow control solutions!

These combination air flow transducers and actuator units are designed primarily for variable air volume terminal units controlled via Direct Digital Control (DDC) systems such as KMC’s Digital System. They can be used in slave or dual duct tracking applications. Air flow is sensed by utilizing a single or multi-point differential (velocity) pressure measuring station or pitot tube. Air flow sensing is accomplished utilizing twin platinum resistance temperature detectors. Velocity measurement is maintained at 3% accuracy over the range of 0 to 3,300 feet per minute (FPM). Each unit mounts directly to a 1/2″ diameter or 3/8″ square damper shaft, or a 3/8″ diameter shaft (HFO-0011 shaft adaptor required). Damper control is provided by an 18°/minute or 60°/minute actuator. The actuator is controlled by an SPDT “floating” input (on the TSP-5003/5023) or 2 to 10 VDC proportional input (on the TSP-5002/5022). A minimum of 50 in-lbs. torque is provided. Both minimum and maximum stops are standard to limit the rotation. A gear disengagement feature allows positioning the damper and/or gear-train without energizing the actuator. A 10,000 ohm, 1/3 watt feedback potentiometer is standard on the TSP-5003/5023 (only).
