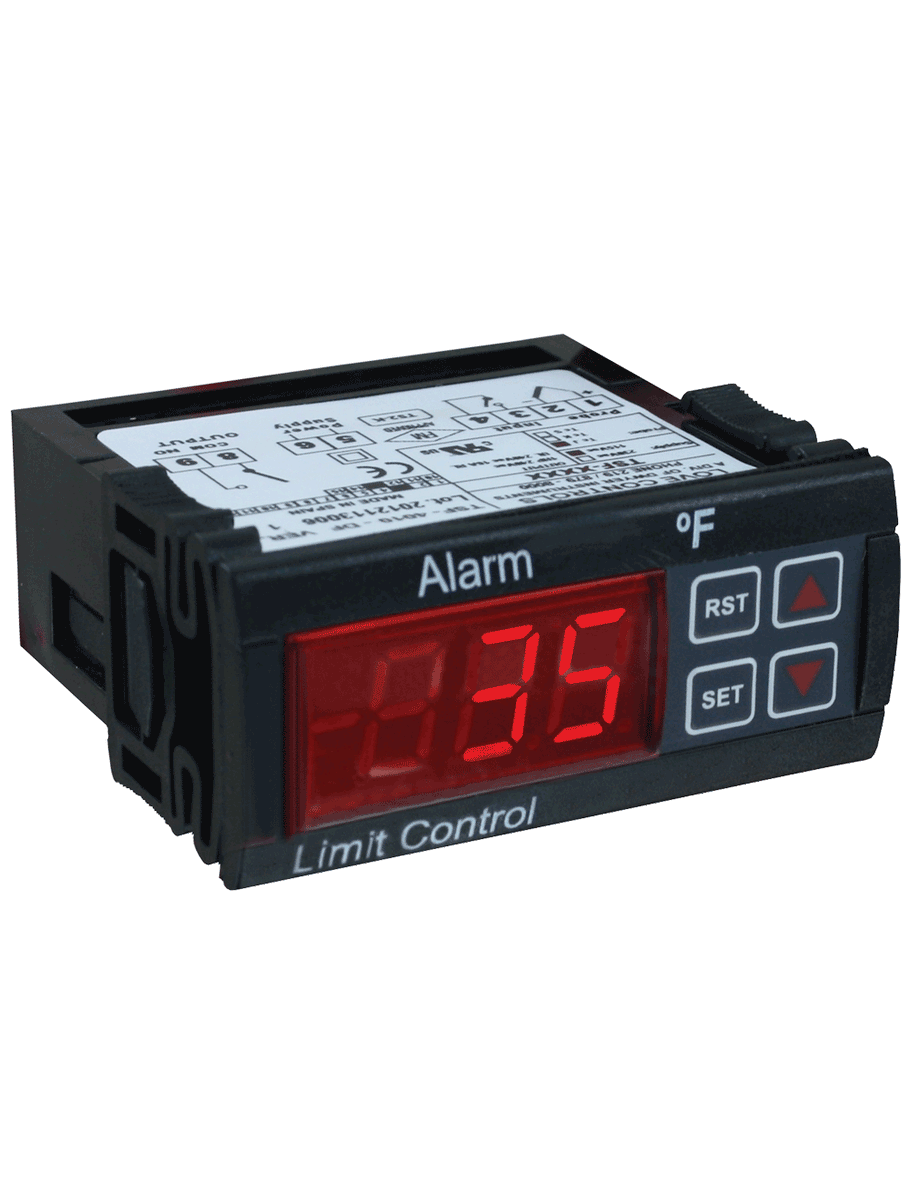

TSF-4040 | Thermocouple limit control | type J/K/S input | 24 VAC/VDC | °F. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSF-4040

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSF-4040 Documents

Instruction Manual Series TSF Catalog Page More Info

Overview

Details for TSF-4040

THERMOCOUPLE, LIMIT TYPE J/K/S [TSF-4040]Dwyer Instruments The TSF-4040 thermocouple from Dwyer Instruments is a Type J/K/S thermocouple with a temperature range of -200Â°F to 1500Â°F. It has a 1/16" diameter, 304 stainless steel sheath, and a 48" lead wire. The TSF-4040 is ideal for use in a variety of applications, including temperature measurement, process control, and environmental monitoring. This thermocouple is constructed of high-quality materials and is built to withstand harsh conditions. The 304 stainless steel sheath provides excellent corrosion resistance, and the 48" lead wire allows for easy installation. The TSF-4040 is also NIST traceable, ensuring accurate and reliable temperature measurements. Technical Specifications: * Type: J/K/S * Temperature Range: -200Â°F to 1500Â°F * Sheath Diameter: 1/16" * Sheath Material: 304 Stainless Steel * Lead Wire Length: 48" * Accuracy: Â±1.5% * Response Time: 1 second Our HVAC supply store is your best source for Dwyer Instruments products. We offer the best prices and fast shipping on all of our products. Shop now!

SERIES TSF THERMOCOUPLE LIMIT CONTROL

FM Approved Temperature Limit Control

The Series TSF Thermocouple Limit Control provides audible alarm status along with a relay output. Unit allows the user to easily select automatic or manual reset via a built in reset button on the front panel or an external contact.

Product Applications

Gas fired oven and burner control

FM approved temperature limiting control
Integral and remote reset capabilities

Specifications

Series: TSF THERMOCOUPLE LIMIT CONTROL
Category/Type: Temperature
Type: Switches
Series: TSF THERMOCOUPLE LIMIT CONTROL
Probe Range: 32 to 999°F (0 to 700°C) for Type J thermocouple; 32 to 999°F (0 to 999°C) for type K or S thermocouples.
Input: Type J; K or S thermocouple.
Output: SPDT relay rated 16 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF; manual/automatic reset.
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Power Consumption: 4 VA.
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: >Ambient: 32 to 150°F (0 to 65°C); Storage: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64 (NEMA 3R).
Agency Approvals: CE; FM; cURus.
