TSF-4011-DF | Limit Control Temp | Type J/K Input | 110V | °C | Dwyer Instruments

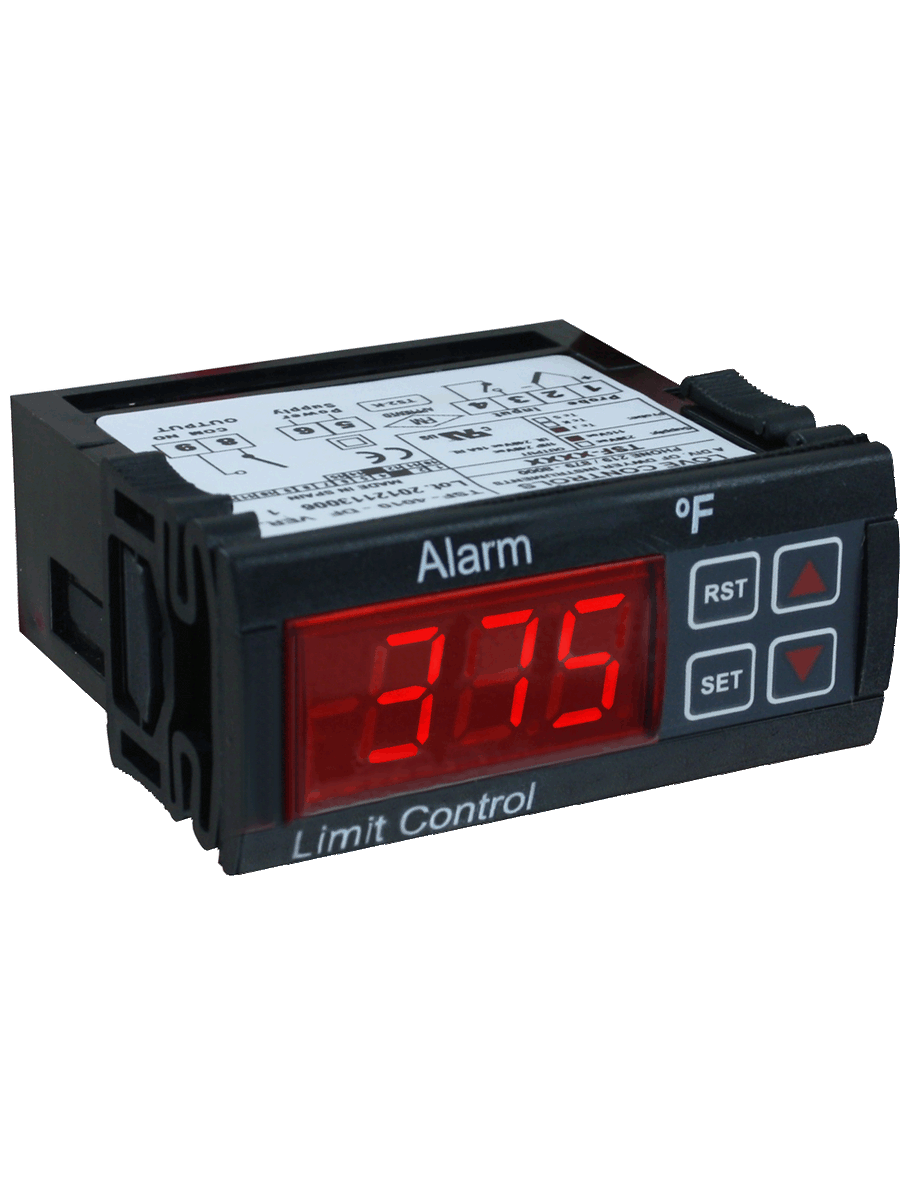

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSF-4011-DF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSF-4011-DF Documents

Instruction Manual TSF-DF Series TSF-DF Catalog Page TSF-DF More Info

Overview

Details for TSF-4011-DF

TSF-4011-DF Differential Pressure Transmitter: A Precise Monitoring Solution from Dwyer Instruments Dwyer Instruments' TSF-4011-DF Differential Pressure Transmitter provides reliable and accurate pressure measurement for industrial applications. With a differential pressure range of 0-1 to 0-100 inches of water column, it excels in measuring pressure differences in air or non-corrosive gases. The TSF-4011-DF employs a capacitive sensor for enhanced stability and temperature compensation, ensuring accurate readings over a wide temperature range. Featuring a compact design and rugged construction, the TSF-4011-DF seamlessly integrates into various industrial settings. Its 4-20 mA output signal allows for easy integration with controllers or data acquisition systems. The transmitter's NEMA 4 housing provides excellent protection against dust and water ingress, making it suitable for harsh environments. Versatile and user-friendly, the TSF-4011-DF offers field-adjustable zero and span settings, enabling simple configuration for specific application requirements. Its LED indicator provides visual feedback on the transmitter's status, allowing for quick troubleshooting. Industries utilizing the TSF-4011-DF include HVAC, pharmaceutical, food processing, and cleanroom applications. It effectively monitors pressure differences in ducts, filters, and process lines, ensuring optimal performance and compliance with industry regulations. Shop our HVAC supply store now for the best prices and fast shipping on the Dwyer Instruments TSF-4011-DF Differential Pressure Transmitter. Our commitment to quality and customer satisfaction ensures a seamless and satisfying purchasing experience.

SERIES TSF-DF THERMOCOUPLE LIMIT CONTROL

UL Approved Temperature Limit Control

The Series TSF-DF Thermocouple Limit Alarm is a UL approvedtemperature limit control that provides visual alarm status along with a relayoutput. The Series TSF-DF controls have a built in reset button on the front panel or canaccept an external reset signal.Program settings on model TSF-DF controls cannot be changed through the buttons on thedevice. It is necessary to purchase a model TSF-MDF and a model TS2-K in addition to themodel TSF-DF. Desired program parameters are entered on a TSF-MDF programmingcontrol. Using the TS2-K configuration key, the parameters can be easily copied from theTSF-MDF and transferred to the TSF-DF Limit Alarms.

Product Applications

Gas fired oven and burner control

UL approved limit control

Specifications

Series: TSF-DF THERMOCOUPLE LIMIT CONTROL
Category/Type: Temperature
Type: Switches
Series: TSF-DF THERMOCOUPLE LIMIT CONTROL
Probe Range: 32 to 999°F (0 to 700°C) for thermocouple J type; 32 to 999°F (0 to 999°C) for thermocouple K or S type.
Input: Type J; K; or S thermocouple.
Output: NO SPST relay rated 16 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF; manual/automatic reset.
Power Requirements: See model chart.
Power Consumption: 4 VA @ 230 VAC.
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Ambient Operating Temperature: 32 to 140°F (0 to 60°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; cURus. (DF models only).
