TSF-4010 | Thermocouple limit control | type J/K/S input | 110 V | °F. | Dwyer Instruments

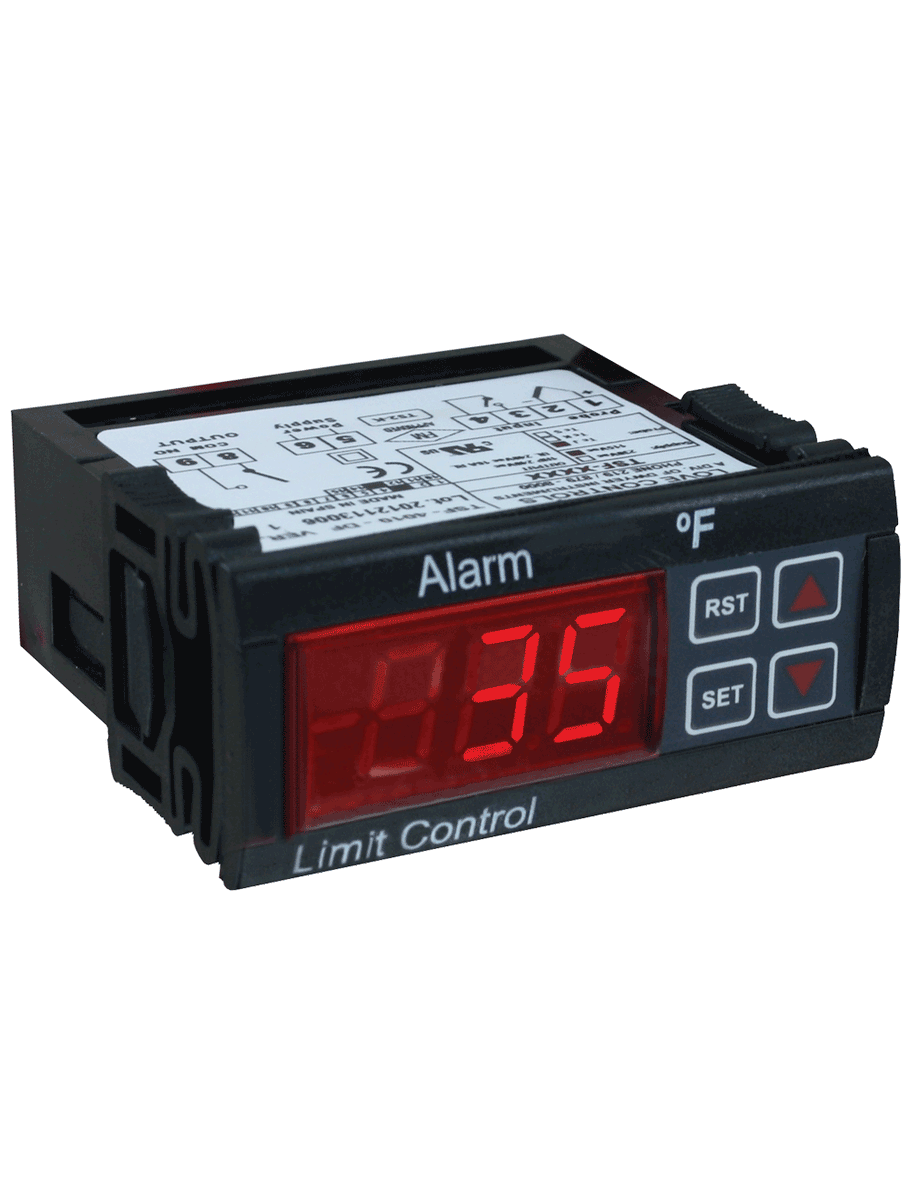

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSF-4010

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TSF-4010 Documents

Instruction Manual Series TSF Catalog Page More Info

Overview

Details for TSF-4010

110V 'F Thermocouple Lmt Cntrl (TSF-4010) Dwyer Instruments' TSF-4010 is a temperature limit control designed for precise monitoring and control of temperature in demanding industrial applications. Its 110V 'F thermocouple sensor provides accurate temperature readings, ensuring optimal process control and safety. The TSF-4010 features a durable construction with a heavy-duty housing, making it suitable for harsh environments. Its compact design allows for easy installation and maintenance. The control unit has adjustable dials for setting the desired temperature limits, providing versatility and flexibility for different applications. This limit control is ideal for controlling temperature in various industrial processes, such as ovens, furnaces, and manufacturing lines. It helps maintain consistent temperatures, prevent overheating, and ensure safety in temperature-critical environments. Shop our HVAC supply store for the best prices and fast shipping on the TSF-4010 and other Dwyer Instruments products!

SERIES TSF THERMOCOUPLE LIMIT CONTROL

FM Approved Temperature Limit Control

The Series TSF Thermocouple Limit Control provides audible alarm status along with a relay output. Unit allows the user to easily select automatic or manual reset via a built in reset button on the front panel or an external contact.

Product Applications

Gas fired oven and burner control

FM approved temperature limiting control
Integral and remote reset capabilities

Specifications

Series: TSF THERMOCOUPLE LIMIT CONTROL
Category/Type: Temperature
Type: Switches
Series: TSF THERMOCOUPLE LIMIT CONTROL
Probe Range: 32 to 999°F (0 to 700°C) for Type J thermocouple; 32 to 999°F (0 to 999°C) for type K or S thermocouples.
Input: Type J; K or S thermocouple.
Output: SPDT relay rated 16 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF; manual/automatic reset.
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Power Consumption: 4 VA.
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: >Ambient: 32 to 150°F (0 to 65°C); Storage: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64 (NEMA 3R).
Agency Approvals: CE; FM; cURus.
