TS2-010 | Digital temperature switch | 110 VAC | °F display. | Dwyer Instruments

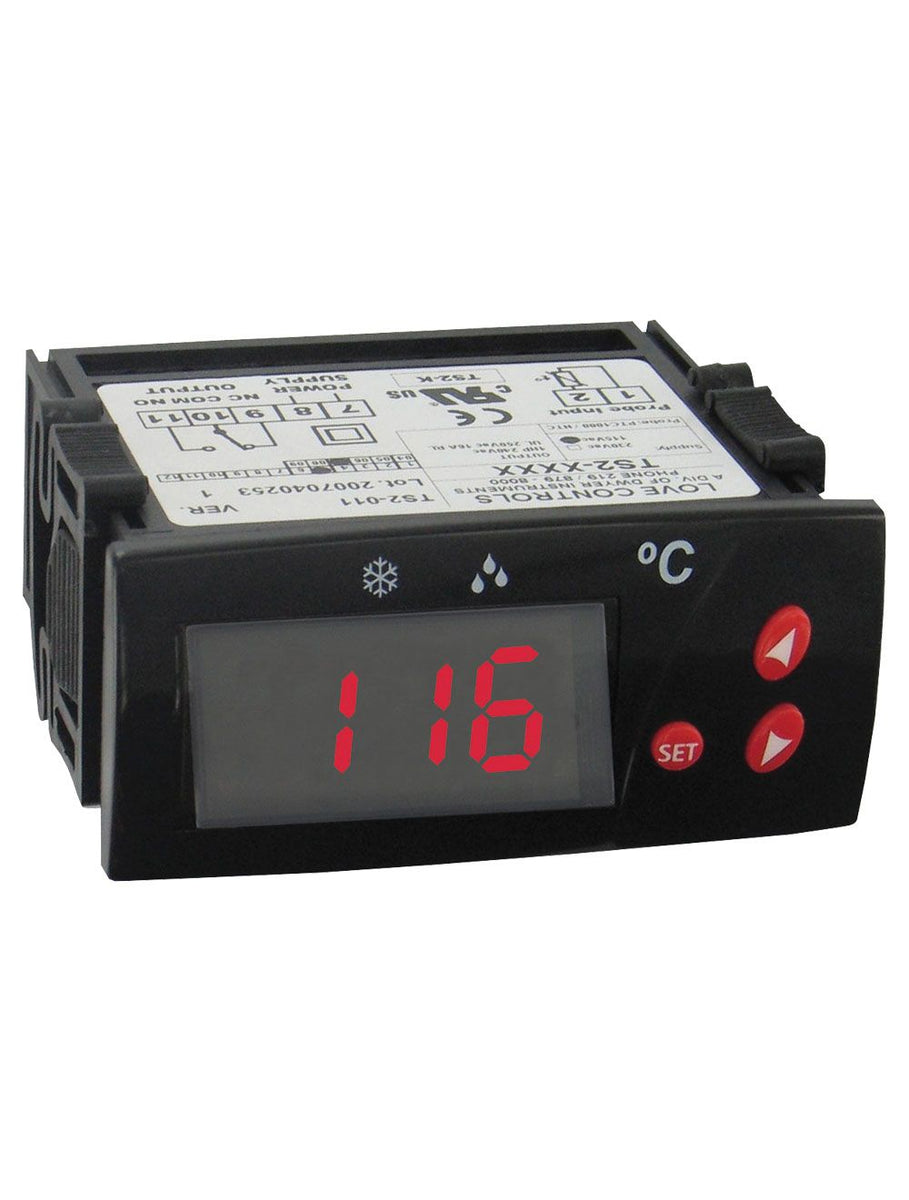

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS2-010

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TS2-010 Documents

Instruction Manual Series TS2 Catalog Page More Info

Overview

Details for TS2-010

The Dwyer Instruments TS2-010 is a 110V SPDT Digital Temp Switch designed for industrial temperature control applications. Its compact design and rugged construction make it suitable for use in harsh environments. The TS2-010 features a backlit LCD display for easy and accurate temperature readings. It has an adjustable temperature range of -58 to 302Â°F (-50 to 150Â°C), which can be set and calibrated using the built-in keypad. The switch also includes a programmable hysteresis function to prevent rapid cycling. The TS2-010's SPDT (Single Pole Double Throw) contact configuration allows it to control heating and cooling systems directly. It has a maximum switching capacity of 10 amps at 120VAC. The switch also features a built-in LED indicator to show the status of the output relay. Our HVAC supply store offers the Dwyer Instruments TS2-010 Digital Temp Switch at competitive prices with fast shipping. Order now for reliable and accurate temperature control in your industrial applications.

SERIES TS2 DIGITAL TEMPERATURE SWITCH

Easy Multi-Unit Programming, 16 A SPDT Relay Output

Monitor and control temperature for heating and cooling applications with the Series TS2 Digital Temperature Switch. The Series TS2 offers twelve programmable functions to customize the unit to fit application requirements. Use the 15(5) Amp SPDT relay output to drive a motor, compressor, or fan. Designed with the OEM in mind, the TS2 offers the ability to configure multiple units with the touch of a button.

Programming multiple units is quick and easy. Simply program one switch with the desired parameter settings and connect the configuration key (sold separately) to the back of the unit. Press the button on the configuration key and download the parameter settings. Connect the key to the other switches to upload the stored settings with the push of a button.

The TS2 features set point adjustments, static defrost timing, compressor mean time, hysteresis, and ambient probe adjustment. Security protection is offered using a password code. The Series TS2 Digital Temperature Switches are designed to operate with PTC (1000Ω @ 25°C) probes sold separately.

Note: Minimum order of 50 pcs for configured models.

Product Applications

Refrigerators
Chillers
Food service equipment
Medical sterilizers or equipment

Simple to use temperature control device
Configuration key
