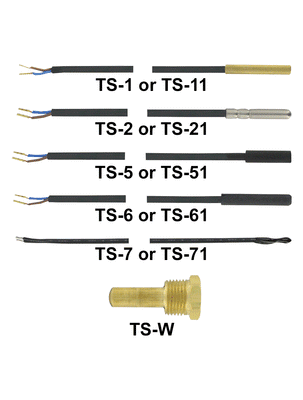

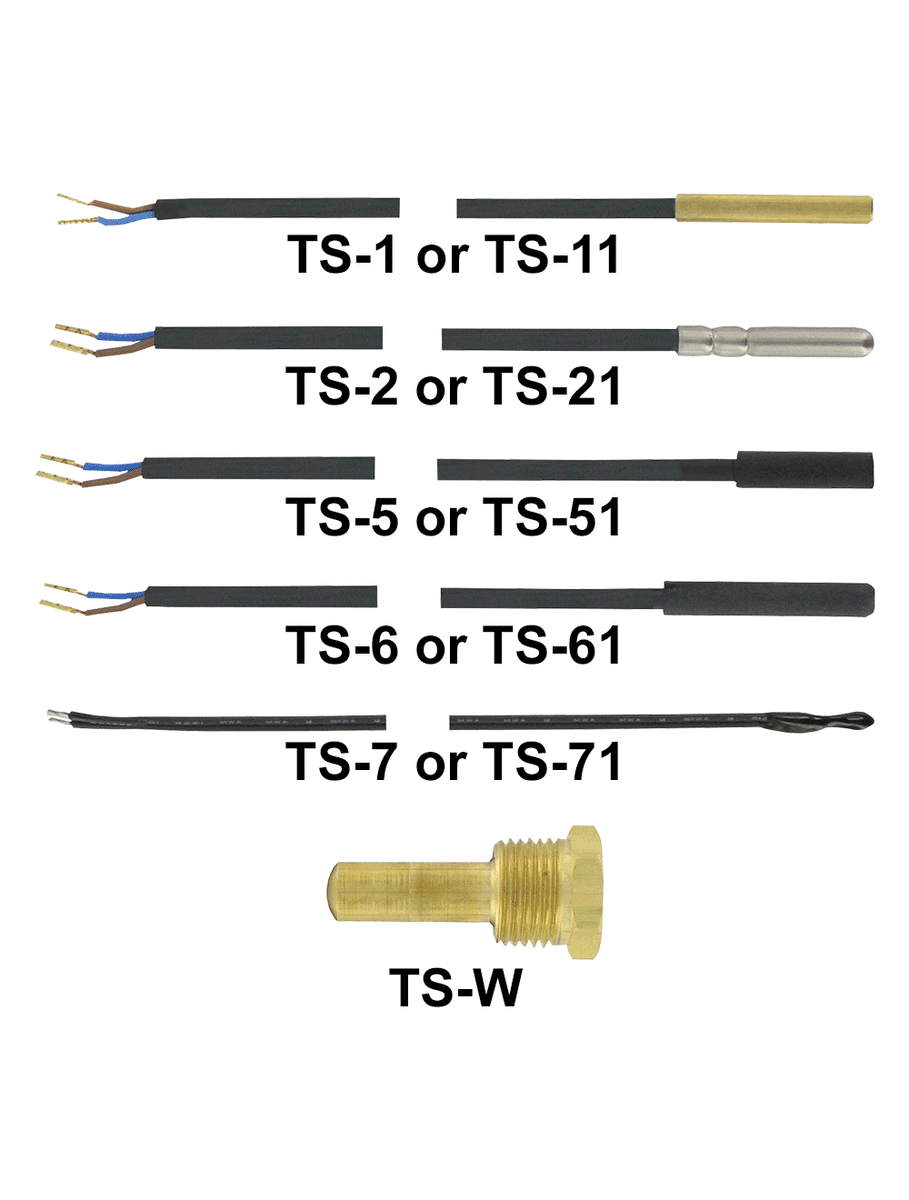

TS-6 | PTC Sensor | Polyamide Resin Coated Brass Sheath | 5 ft (1.5 m) cable. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS-6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TS-6 Documents

Series TS-PROBES Catalog Page More Info

Overview

Details for TS-6

TEMP PROBE W/5'CABLE The Dwyer Instruments TS-6 is a temperature probe designed for measuring temperatures in various industrial applications. It features a 5' cable for extended reach and is compatible with a wide range of temperature measurement devices. Key Features: * Durable construction for harsh industrial environments * 5' cable for increased reach and flexibility * Compatible with various temperature measurement devices Applications: * Measuring temperature in HVAC systems * Monitoring process temperatures in industrial plants * Verifying equipment operating temperatures Technical Specifications: * Temperature range: -58 to 392Â°F (-50 to 200Â°C) * Cable length: 5' * Probe material: Stainless steel * Connector type: Mini-DIN [CTA]: Trust our HVAC supply store for the best prices and fast shipping on your industrial products. Order now!

Series TS-PROBES Digital Temperature Switch Probes and Accessories main

Probes to be used with TS, TS2, TSS2, TSWB, TSW, TS3, TSX3, and 40M

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Refrigerated cabinets
Walk in coolers
Food service equipment
Medical sterilizers or equipment
Wood or pellet boilers
Brewing systems

5 or 10 foot cable lengths
PTC or NTC temperature curves

Specifications

Series: TS-PROBES Digital Temperature Switch Probes and Accessories main
Category/Type: Temperature
Type: Sensors
Series: TS-PROBES Digital Temperature Switch Probes and Accessories main
Sensor: See model chart on catalog page.
Operating Temperature: PTC or NTC: -58 to 221°F (-50 to 105°C); J-type: 32 to1400°F (0 to 760°C); K-type: 32 to 2300°F (0 to 1200°C).
Accuracy: ±2°C at 25°C.
Response Time: 15 seconds (in air).
Cable: PTC and NTC models: PVC; J-type and K-type models: FEP.
Protection: IP67 (NEMA 6).
