TS-13030 | Digital temperature switch | 12 VAC/VDC | 16 A | °F display. | Dwyer Instruments

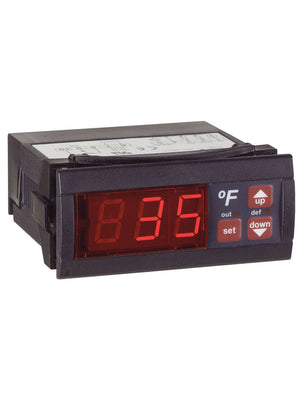

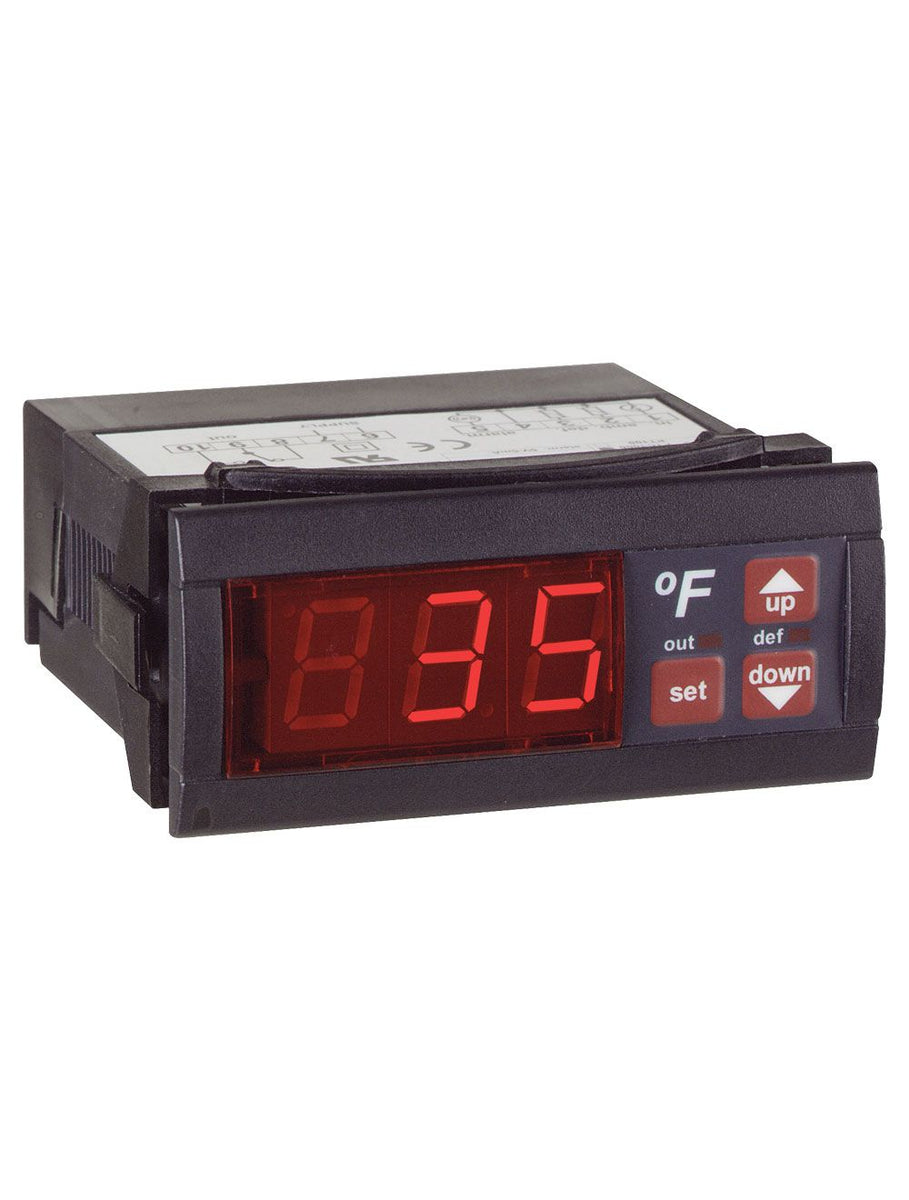

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS-13030

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TS-13030 Documents

TS Series TS Catalog Page More Info

Overview

Details for TS-13030

Dwyer Instruments TS-13030 Digital Temperature Switch The Dwyer Instruments TS-13030 is a versatile digital temperature switch designed to monitor and control temperature in various industrial applications. It features a compact design, making it suitable for space-constrained installations. Key Features: * Â±1% Accuracy over calibrated range * SPDT contact rated for 10 amps at 125 VAC * Adjustable temperature set point * LED status indicator * Temperature range: -30Â°F to 220Â°F (-34Â°C to 104Â°C) Benefits: * Reliable temperature monitoring and control * Simple and easy installation * Clear indication of temperature status * Durable construction for industrial environments * Versatile temperature range and switch capacity Applications: The Dwyer Instruments TS-13030 Digital Temperature Switch is ideal for: * HVAC systems * Process control * Industrial machinery * Environmental monitoring * Refrigeration and cooling systems Choose our HVAC supply store for the best prices and fast shipping on Dwyer Instruments temperature switches and other industrial products!

SERIES TS DIGITAL TEMPERATURE SWITCH

3-Digit Display, Heating/Cooling Control, 8 or 16 Amp Relay

The Series TS Digital Temperature Switch is designed to regulate many heating and cooling applications. Easy programming via the tactile front keypad enables quick setup of the 12 parameters for simple, reliable operation. The user can define set point, heating/cooling regulation, hysteresis, cycle time, ambient probe adjustment and defrosting time. The unit features error or alarm messaging and password protection. View probe temperature on the bright red, 3-digit LED display. Select between temperature display in °F or °C, and 110 VAC, 230 VAC, or 12 VDC power supplies. The Series TS includes a thermistor with 5 ft (1.5 m) cable, fitting clips for panel mounting, gasket, rear terminal cover, and instruction manual.

Product Applications

Industrial chillers
Environmental chambers
Walk-ins and freezers
Heat sealers
Sterilizers
Beer and wine chillers
Mug frosters
Coolers
Display cases and cabinets
Warmers
Meat and produce storage
Floral preservation
Refrigerated transportation
Laboratories
Food service equipment
Ovens and dryers
Tobacco preservation
Hot melt glue stichers for case erectors
Cool rooms
Burn-in rooms and chambers
Cold water citrus packing

Specifications

Series: TS DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TS DIGITAL TEMPERATURE SWITCH
Probe Range: -58 to 302°F (-50 to 150°C).
Input: 1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5 ft (1.5 m) cable.
Output: 16A SPDT relay @ 250 VAC resistive.
Horsepower Rating (HP): 1 HP for 16A.
Control Type: ON/OFF.
Power Requirements: 110 VAC; 230 VAC or 12 VAC/VDC (depending on model). 4VA (230V).
Accuracy: ±1°C.
Display: 3-digit; red; 1/2" digits.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; ULc; UL.
