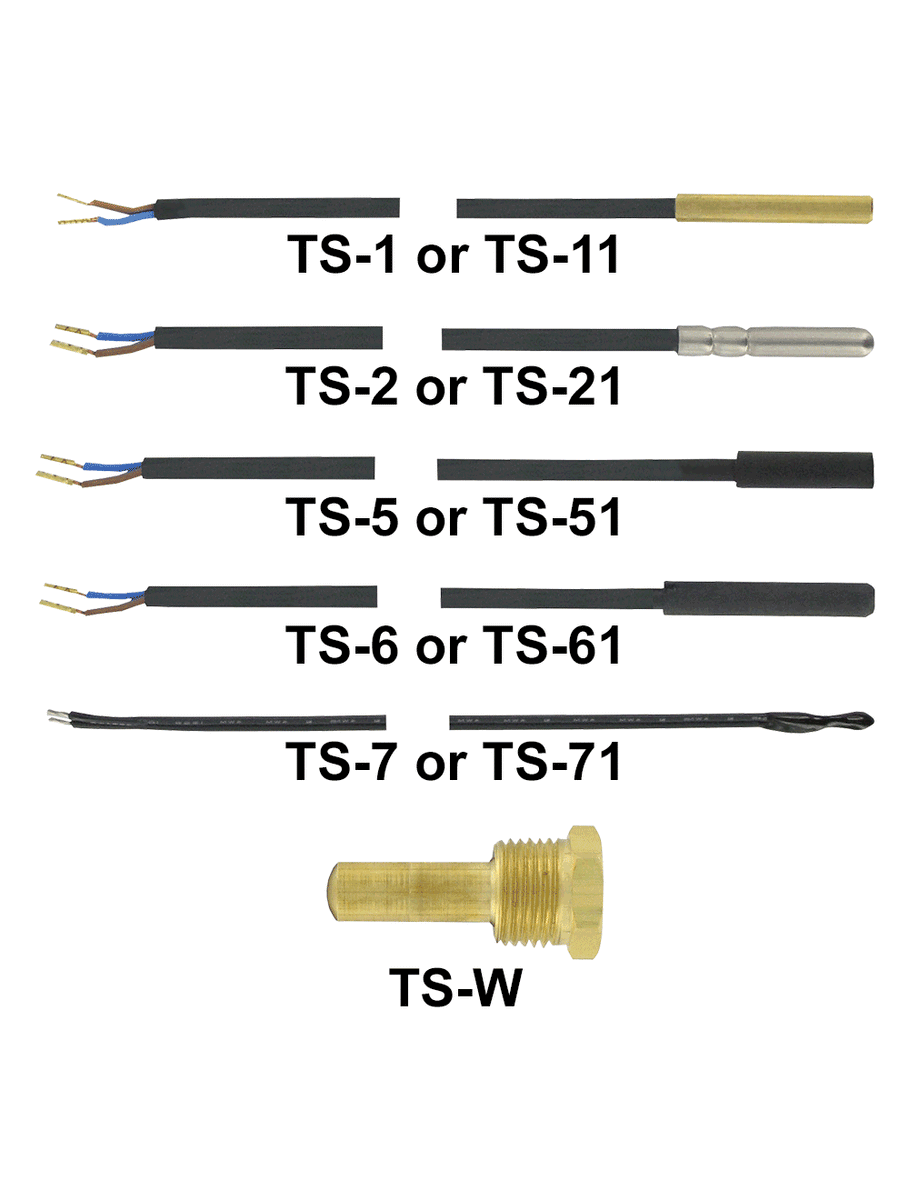

TS-1 | PTC Sensor | Brass Sheath | PVC Cable | 5 ft. (1.5 m) length | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TS-1 Documents

Series TS-PROBES Catalog Page More Info

Overview

Details for TS-1

Dwyer Instruments TS-1 Brass Sheath PTC Probe Dwyer Instruments' TS-1 Brass Sheath PTC Probe is a highly accurate and reliable temperature sensor designed for industrial and commercial applications. It features a durable brass sheath for corrosion resistance and long-lasting performance. Key Features: - Brass sheath for excellent corrosion resistance - Wide temperature range: -58Â°F to 302Â°F (-50Â°C to 150Â°C) - High accuracy: Â±0.5% full scale - Fast response time - Compact size for easy installation Benefits: - Durable and reliable temperature measurement - Suitable for various industrial applications - Fast and precise temperature monitoring - Easy to install and maintain Applications: The Dwyer Instruments TS-1 Brass Sheath PTC Probe is ideal for temperature monitoring in: - HVAC systems - Process control - Equipment monitoring - Environmental monitoring Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Series TS-PROBES Digital Temperature Switch Probes and Accessories main

Probes to be used with TS, TS2, TSS2, TSWB, TSW, TS3, TSX3, and 40M

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Refrigerated cabinets
Walk in coolers
Food service equipment
Medical sterilizers or equipment
Wood or pellet boilers
Brewing systems

5 or 10 foot cable lengths
PTC or NTC temperature curves

Specifications

Series: TS-PROBES Digital Temperature Switch Probes and Accessories main
Category/Type: Temperature
Type: Sensors
Series: TS-PROBES Digital Temperature Switch Probes and Accessories main
Sensor: See model chart on catalog page.
Operating Temperature: PTC or NTC: -58 to 221°F (-50 to 105°C); J-type: 32 to1400°F (0 to 760°C); K-type: 32 to 2300°F (0 to 1200°C).
Accuracy: ±2°C at 25°C.
Response Time: 15 seconds (in air).
Cable: PTC and NTC models: PVC; J-type and K-type models: FEP.
Protection: IP67 (NEMA 6).
