TRI-75-50 | Tridicator gage | range 0-75 psi (0-500 kPa) | 1/2" NPT CBM. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TRI-75-50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TRI-75-50 Documents

Series TRI Catalog Page More Info

Overview

Details for TRI-75-50

TRI-75-50: 0-75# (0-500kPa) Differential Pressure Transmitter by Dwyer InstrumentsThe TRI-75-50 is a differential pressure transmitter manufactured by Dwyer Instruments. It is designed to measure the pressure difference between two points, with a range of 0-75# (0-500kPa). This versatile transmitter is ideal for various industrial applications, including HVAC, airflow monitoring, and liquid level measurement. Key Features: - Differential pressure measurement range: 0-75# (0-500kPa) - Accuracy: Â±1% of full scale - Output: 4-20 mA - Compact design for easy installation - Durable construction for industrial environments Benefits: - Accurate and reliable pressure measurement - Industry-standard 4-20 mA output for easy integration with control systems - Versatile applications in HVAC, airflow monitoring, and liquid level measurement - Robust construction for long-lasting operation Applications: - Differential pressure measurement in air ducts for HVAC systems - Airflow monitoring in industrial processes - Liquid level measurement in tanks and vessels - Pressure monitoring in industrial machinery Shop our HVAC supply store for the best prices and fast shipping on the TRI-75-50 differential pressure transmitter from Dwyer Instruments. Our commitment to providing high-quality products and excellent customer service makes us the preferred choice for industrial engineers and maintenance professionals.

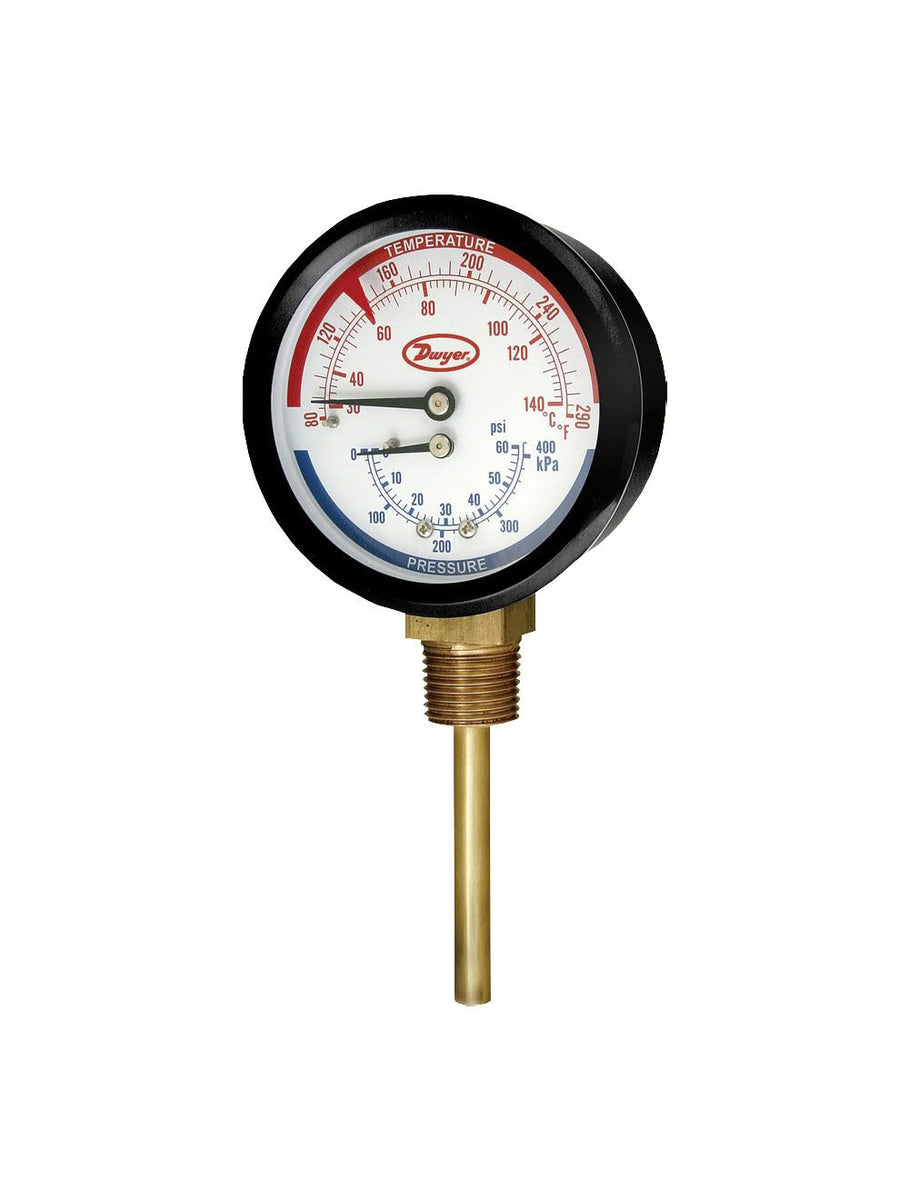

SERIES TRI TRIDICATOR GAGE

Combination Pressure/Temperature Gage

The Series TRI combines the value of an individual pressure gage and thermometer in one instrument. These tridicators simplify installation which reduces time and saves money. The movable dial with blue pressure markings and red temperature markings make the instrument easy to read. Pressure is indicated in both psi and kPa, while temperature is measured in both Fahrenheit and Celsius. Series TRI comes in three different connection options including lower mount, center back mount, and center back mount with extension shank.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Boiler Monitoring

Specifications

Series: TRI TRIDICATOR GAGE
Category/Type: Pressure
Type: Single Pressure
Series: TRI TRIDICATOR GAGE
Service: Compatible gases and liquids.
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.
Housing: Drawn Steel; black finish.
Accuracy: Pressure ±3-2-3%; Temperature ±1 scale division.
Temperature Range: All models: 80 to 290°F (30 to 140°C).
Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C); Process: 80 to 290°F (30 to 140°C).
Pressure Limits: Full scale range.
Size: 3" (76 mm)
Process Connections: 1/2" male NPT back or bottom; 1/4" male NPT back connection.
Weight: 12.3 oz (348.7 g).
