TRI-100-50 | Tridicator gage | range 0-100 psi (0-700 kPa) | 1/2" NPT CBM. | Dwyer Instruments

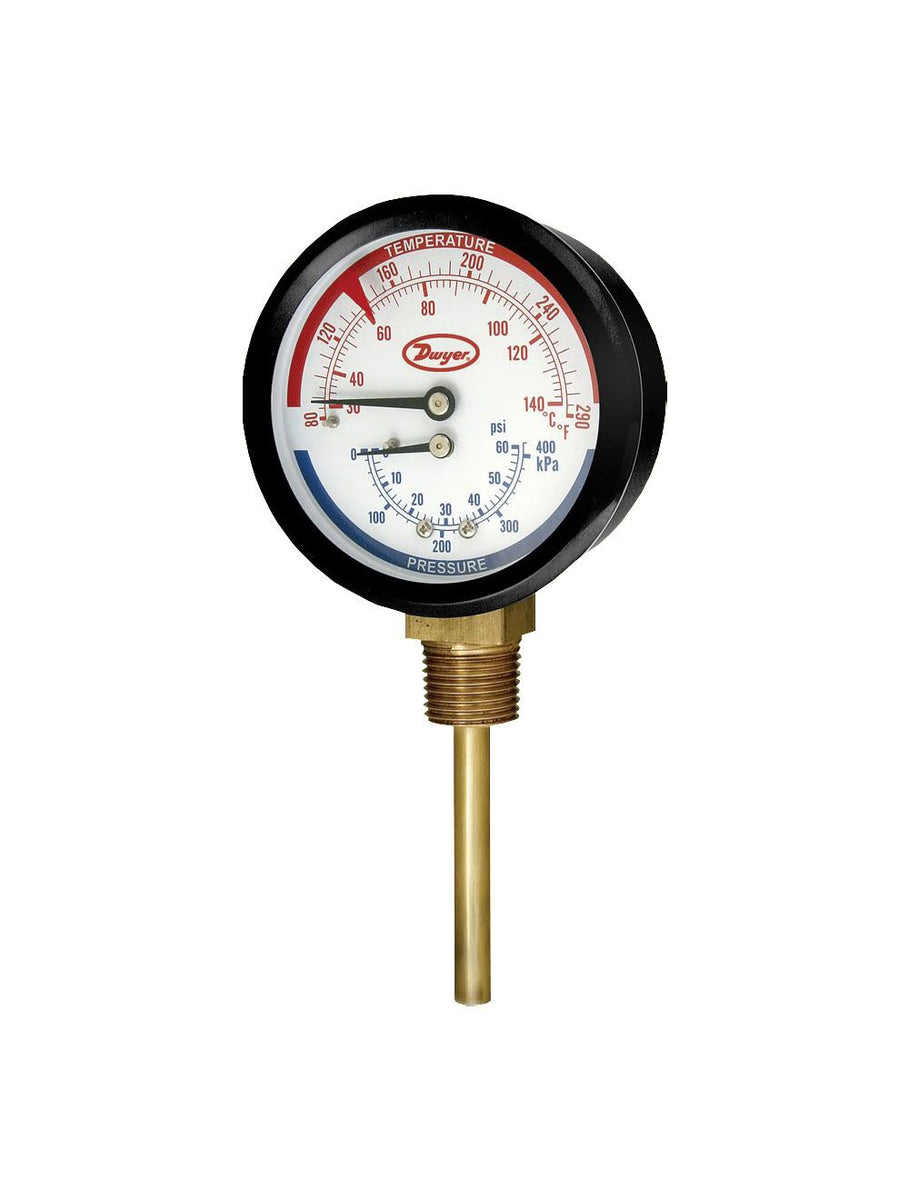

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TRI-100-50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TRI-100-50 Documents

Series TRI Catalog Page More Info

Overview

Details for TRI-100-50

Dwyer Instruments TRI-100-50: Precision for Industrial Measurement The Dwyer TRI-100-50 is an accurate and reliable bottom-connected gage designed for measuring fluid pressure in industrial applications. This gauge boasts a measuring range of 0-100 psi and a temperature range of 80-290Â°F, making it suitable for various fluids. With a 3" dial size and a 1/2" bottom connection, it provides easy reading and convenient installation. Crafted with precision, this gage features a rugged construction to withstand harsh industrial environments. Its stainless steel case and brass wetted parts ensure durability and corrosion resistance, ensuring long-lasting performance. The low friction movement provides smooth and precise readings, even under demanding conditions. The Dwyer TRI-100-50 is a versatile instrument widely used in various applications. Its accuracy and reliability make it ideal for monitoring fluid pressure in hydraulic systems, pneumatic systems, and chemical processing plants. It also finds applications in power generation, manufacturing, and HVAC systems. Our HVAC supply store is your trusted source for the Dwyer TRI-100-50 pressure gage. We offer competitive prices, fast shipping, and knowledgeable support. Get yours today and enhance your industrial measurement capabilities!

SERIES TRI TRIDICATOR GAGE

Combination Pressure/Temperature Gage

The Series TRI combines the value of an individual pressure gage and thermometer in one instrument. These tridicators simplify installation which reduces time and saves money. The movable dial with blue pressure markings and red temperature markings make the instrument easy to read. Pressure is indicated in both psi and kPa, while temperature is measured in both Fahrenheit and Celsius. Series TRI comes in three different connection options including lower mount, center back mount, and center back mount with extension shank.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Boiler Monitoring

Specifications

Series: TRI TRIDICATOR GAGE
Category/Type: Pressure
Type: Single Pressure
Series: TRI TRIDICATOR GAGE
Service: Compatible gases and liquids.
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.
Housing: Drawn Steel; black finish.
Accuracy: Pressure ±3-2-3%; Temperature ±1 scale division.
Temperature Range: All models: 80 to 290°F (30 to 140°C).
Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C); Process: 80 to 290°F (30 to 140°C).
Pressure Limits: Full scale range.
Size: 3" (76 mm)
Process Connections: 1/2" male NPT back or bottom; 1/4" male NPT back connection.
Weight: 12.3 oz (348.7 g).
