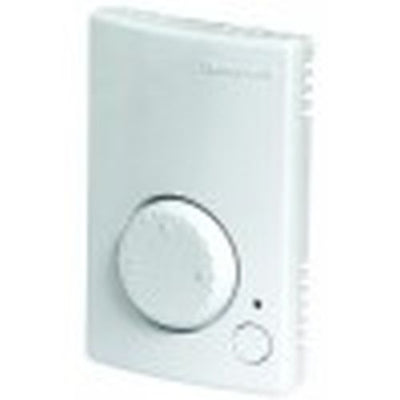

TR22 Temperature Sensor Honeywell 20KOHM TEMP 55-85F W/LONThe TR22 Temperature Sensor Honeywell 20KOHM TEMP 55-85F W/LON is a highly accurate and reliable temperature sensor designed for industrial applications. Manufactured by Honeywell, a leading name in industrial automation and control systems, this sensor provides precise temperature measurements within a range of 55-85°F (13-29°C). With a resistance of 20 Kohm and a long lead wire, it offers excellent signal transmission and flexibility in installation.The TR22 sensor is constructed with durable materials and features a robust design that ensures longevity and reliability in demanding industrial environments. Its compact size and lightweight make it easy to integrate into existing systems and applications. The sensor's wide temperature range and high accuracy make it suitable for various applications, including temperature monitoring in HVAC systems, industrial machinery, and manufacturing processes. By providing accurate and timely temperature data, the TR22 sensor helps maintain optimal operating conditions, prevent equipment failures, and improve overall process efficiency. Our HVAC supply store offers the best prices and fast shipping on the TR22 Temperature Sensor Honeywell 20KOHM TEMP 55-85F W/LON. Order now and experience the quality and reliability of Honeywell's temperature sensing technology.

Description

The TR21, TR22, TR23, and TR24 are a family of direct-wired wall modules for use with:

• Spyder Unitary Controllers: PUL, PVL
• Excel 10 W7750, W7751a, W7752, and W7753 controllers
• Honeywell Excel 800, 600, 500, 100, and 80 (all fully programmable) controllers
• W7761 Controller
• ComfortPoint LON Controllers: CP-UL, CP-VL

All models have a space temperature sensor. Some models have a temperature dial, setpoint adjustment, LONWORKS bus jack, override (bypass) with LED, and fan switch.

NOTE: Refer to the TR21, TR22, TR23, and TR24 Wall Modules – Specification Data, form 63-1321, for specific model features and additional information.

Features

The TR21, TR22, TR23, and TR24 family of wall modules include:

• Models with setpoint adjustment.
• Models with humidity output.
• Models with occupied/unoccupied override (bypass) with LED.
• Models with 3-position (auto/0/1) or 5-position (auto/0/1/2/3 speed) fan switch.
• LONWORKS® bus jack on all models except the TR21 and TR21-A models.
• Locking cover on all models.
• Operating range 45° to 99° F (7° to 37° C).
• Models (TR22 and TR23) with user-selectable temperature setpoint dials in Fahrenheit, Celsius, and Relative (- to +).
