KMC Controls TPE-1475-21 Differential Pressure Sensor The KMC Controls TPE-1475-21 Differential Pressure Sensor is a highly accurate and reliable sensor designed to measure the difference in pressure between two points. It features a rugged construction and a wide operating range, making it suitable for various industrial applications. Key Features: * Measures differential pressure accurately and reliably * Rugged construction ensures durability in harsh environments * Wide operating range allows for use in various applications * Compact size enables easy integration into systems Benefits: * Improves process control by accurately monitoring pressure differences * Reduces downtime and maintenance costs by providing reliable pressure measurements * Enhances safety by preventing overpressure or underpressure situations * Optimizes energy consumption by enabling precise pressure regulation Applications: * Hydraulic and pneumatic systems * Process control and automation * Filter and pump monitoring * HVAC systems Technical Specifications: * Pressure range: 0-25 psi * Accuracy: ±1% of full scale * Response time: <10 ms * Output signal: 4-20 mA * Power supply: 12-36 VDC Upgrade your pressure monitoring systems with the KMC Controls TPE-1475-21 Differential Pressure Sensor. Our HVAC supply store offers the best prices and fast shipping for your industrial needs!

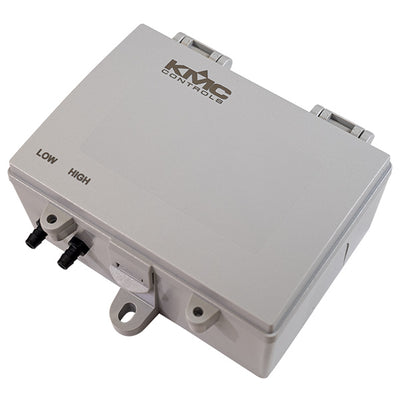

These low pressure transducers can be used to measure positive, negative, or differential pressure. The TPE-1475-xx series models have both pressure ports on the side. The TPE-1477-xx series models have an integrated duct probe and one pressure port on the side.

The piezoresistive sensor is ideal for monitoring the pressure of air or other clean inert gases. Typical HVAC applications include monitoring of filter differential pressure or duct pressure.

The models feature selectable pressure ranges and output signal options for the most flexible applications. The output signal is factory-calibrated and temperature-compensated for highest start-up accuracy and trouble-free operation.

They can be powered from a 20 to 28 volt AC or DC power source.

They incorporate a high-impact polycarbonate UL94-V0, IP65 (NEMA 4X) enclosure. The enclosure has a standard 1/2-inch conduit opening and may be installed with either conduit and a conduit coupler or a cable-gland-type fitting.

Features include:

• Selectable voltage or current outputs of 4–20 mA (2-wire) or 0–10 VDC (3-wire)
• Measures positive, negative, or differential pressures
• Selectable pressure ranges (see the chart in the data sheet)
• Powered by 20 to 28 VAC or VDC
• Push-button auto-zero

NOTE: These specifications are for models that started shipping April 2020. For specifications of earlier models, see Rev. B of the data sheet.
