TFP-LP04 | Liquid turbine flow meter | range .32 to 3.2 GPH (0.02 to 0.2 LPM) | 1/4" OD connection. | Dwyer Instruments

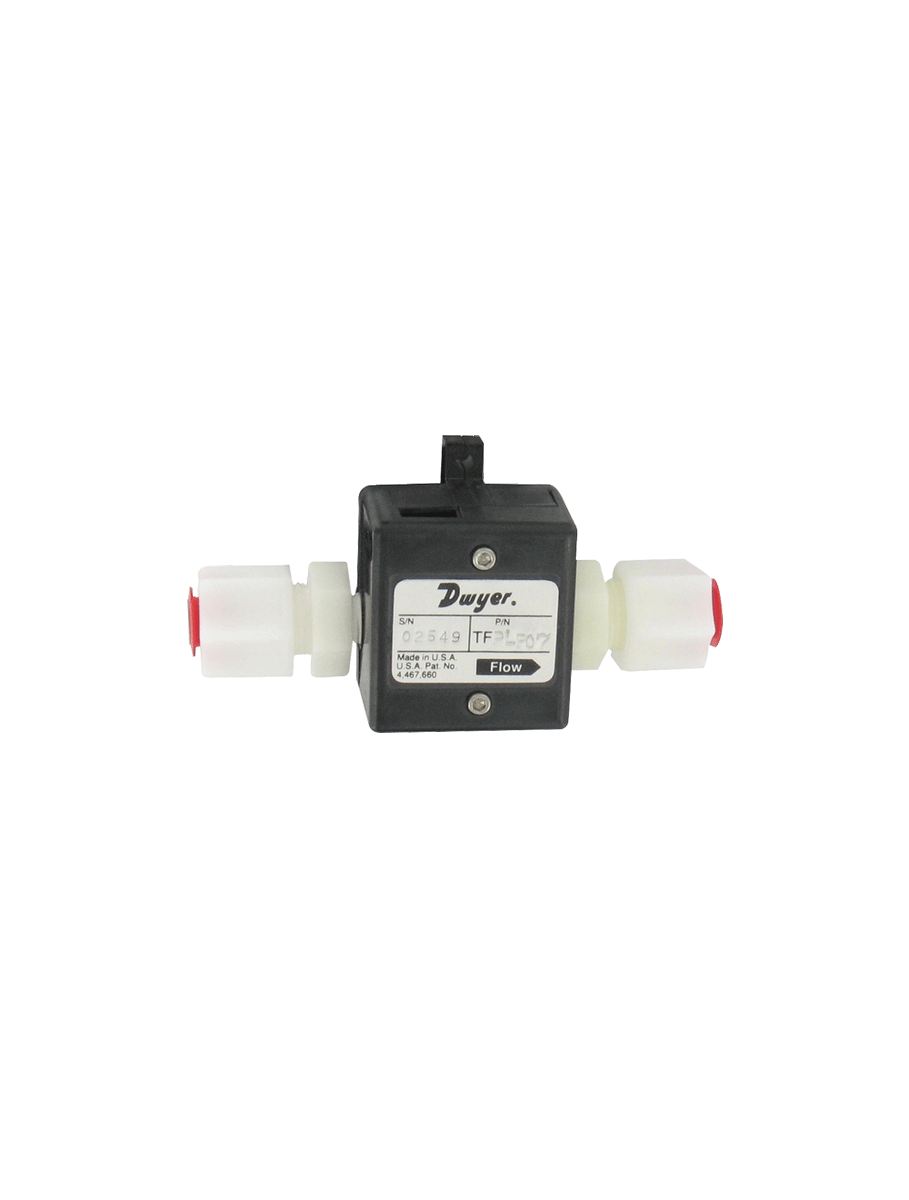

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFP-LP04

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TFP-LP04 Documents

TFP-LP Series TFP-LP Catalog Page More Info

Overview

Details for TFP-LP04

Precise Flow Measurement: Dwyer Instruments TFP-LP04 FlowmeterThe Dwyer Instruments TFP-LP04 Flowmeter is an accurate and reliable device designed to measure liquid flow rates ranging from 0.26 to 2.64 GPH. Its precise measurements make it ideal for industrial and maintenance applications where accurate flow monitoring is critical. Durable Design: The TFP-LP04 is constructed with a rugged, glass-filled polycarbonate body and a 316 stainless steel metering tube, ensuring durability and resistance to harsh chemicals. Its compact design allows for easy installation in tight spaces. Versatile Applications: This versatile flowmeter can be used in a wide range of applications, including: - Chemical processing - Food and beverage production - Pharmaceutical manufacturing - Water treatment - Automotive testing Technical Specifications: - Flow Range: 0.26-2.64 GPH (10-100 mL/min) - Accuracy: Â±2% of full scale - Pressure Drop: 1 PSI at max flow - Temperature Range: 32 to 140Â°F (0 to 60Â°C) - Connection Size: 1/4 NPT Trust Dwyer Instruments for Precision Flow Measurement: Dwyer Instruments is a leading manufacturer of flow measurement solutions, known for their accuracy, reliability, and durability. The TFP-LP04 Flowmeter is a testament to their commitment to providing high-quality products for industrial applications. Shop Now at our HVAC supply store: Get the best prices and fast shipping for your TFP-LP04 Flowmeter. We offer a wide range of industrial supplies and equipment, ensuring you have the tools you need to succeed.

Series TFP-LP Liquid Turbine Flow Meter

PPS Body, 0 to 5 VDC and Pulse Outputs

Series TFP-LP Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. Couple this unit with a Series TM2 Flow Totalizer for a remote flow monitoring display. A power adapter or mating cable assembly is required for operation.

Specifications

Series: TFP-LP Liquid Turbine Flow Meter
Category/Type: Flow
Type: Flow Transmitters
Series: TFP-LP Liquid Turbine Flow Meter
Service: Clean liquids compatible with wetted materials.
Wetted Materials: PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy: ±1% of full scale.
Linearity: ±1% of full scale.
Repeatability: ±0.2% of full scale.
Temperature Limits: 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
Pressure Limits: 100 psig (6.8 bar).
Process Connection: Compression fitting; see Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.19 lb (85 g).
Agency Approvals: CE.
