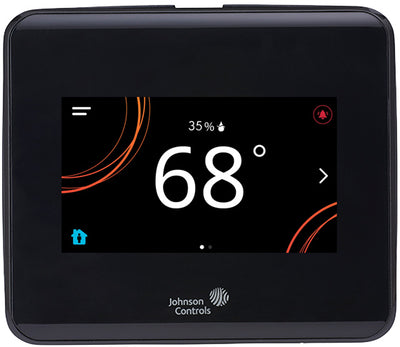

TEC3630-13-000 | TSTAT, MSTP OR N2, RTU/HEAT PUMP WITH ECONFULL COLOR, BLACK, JCI LOGO | Johnson Controls

The Johnson Controls TEC3630-13-000 MSTP/N2 RTU/HP Black Thermostat is a reliable and efficient temperature control solution for industrial applications. Engineered to withstand the demands of harsh environments, this thermostat features a rugged construction for long-lasting performance. Its intuitive controls allow for precise temperature management, ensuring optimal performance of your HVAC system. The TEC3630-13-000 is a versatile choice, compatible with a wide range of heating and cooling systems. Its compact design makes it easy to install and maintain, minimizing downtime and maximizing efficiency. Trust Johnson Controls for reliable temperature control solutions that meet the specific demands of industrial environments. Contact our HVAC supply store today for the best prices and fast shipping on the TEC3630-13-000 thermostat.

Introduction/overview

• The TEC3000 Color Series Thermostat Controllers are wireless, stand-alone, and field-selectable BACnet® MS/TP or N2 networked devices that provide on/off, floating, and proportional control of the following:
•  Local hydronic reheat valves
•  Pressure-dependent VAV equipment with or without local reheat
•  Two- or four-pipe fan coils
•  Cabinet unit heaters
•  Other zoning equipment using an on/off, floating, or 0 to 10 VDC proportional control input
•  Single- or two-stage control of unitary rooftop units (RTUs)
•  Single- or two-stage control of RTUs with economizers
•  Single- or two-stage control of heat pumps
•  Single- or two-stage control of heat pumps with economizers

You can remote monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostat controllers through the building automation system, for efficient space temperature control. The wireless thermostat controllers feature a connection to the ZFR Pro wireless network. All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostat Controllers is non-volatile.

Some models feature a built-in occupancy sensing capability. These thermostat controllers use additional standby setpoints to maximize up to 30% energy savings in high-energy usage commercial buildings, such as schools and hotels, during occupied times. A bright, high-definition capacitive touchscreen display provides responsive feedback and improved readability of text and icons. The home screen is configurable to Modern and Classic, and Light and Dark themes. Models are available in modern black or white highgloss designs with or without the Johnson Controls® logo.

• The following fan configurations are supported for fan coil equipment types:
•  Single-speed
• Multi-speed (two or three discrete speeds)
•  Variable-speed/EC motors (0 to 10 VDC control)

All models support dehumidification on two-pipe fan coil units with reheat, and four-pipe fan coil units with or without reheat. When no heating is required and mechanical cooling is available, the thermostat controller monitors space humidity and activates dehumidification control as necessary. Heat or reheat is used as required to maintain the space temperature.

For optimal dehumidification performance, use a fan coil unit that includes a multi-speed or variable-speed fan (VSF).
