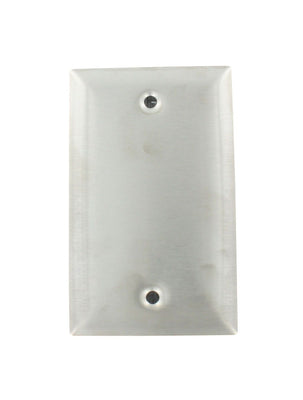

TE-WSS-D | SS wall plate | PT100 Ω RTD. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-WSS-D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TE-WSS-D Documents

TE-WSS TE-WND Resistance vs. Temperature Table More Info

Overview

Details for TE-WSS-D

TE-WSS-D Temperature Sensor: Precise and Reliable Temperature Monitoring for Industrial Applications The Dwyer Instruments TE-WSS-D Temperature Sensor delivers accurate and consistent temperature measurements for industrial engineers and maintenance professionals. Constructed with high-quality materials, this sensor ensures durability and reliability in demanding environments. Its precise sensing element provides real-time temperature data, enabling proactive monitoring and control. Features and Benefits: * Robust construction for harsh industrial conditions * High-accuracy sensing element for precise temperature readings * Compatible with various process control systems * Suitable for use in a wide range of temperatures and applications Applications: * Temperature monitoring in manufacturing processes * HVAC and environmental control systems * Process equipment and machinery * Data centers and server rooms Technical Specifications: * Type: Temperature Sensor * Sensing Element: Thermocouple * Temperature Range: -40Â°C to 800Â°C (-40Â°F to 1472Â°F) * Output Signal: 4-20 mA Trust our HVAC supply store for the best prices and fast shipping on high-quality industrial products like the Dwyer Instruments TE-WSS-D Temperature Sensor. Invest in reliable temperature monitoring for your critical operations!

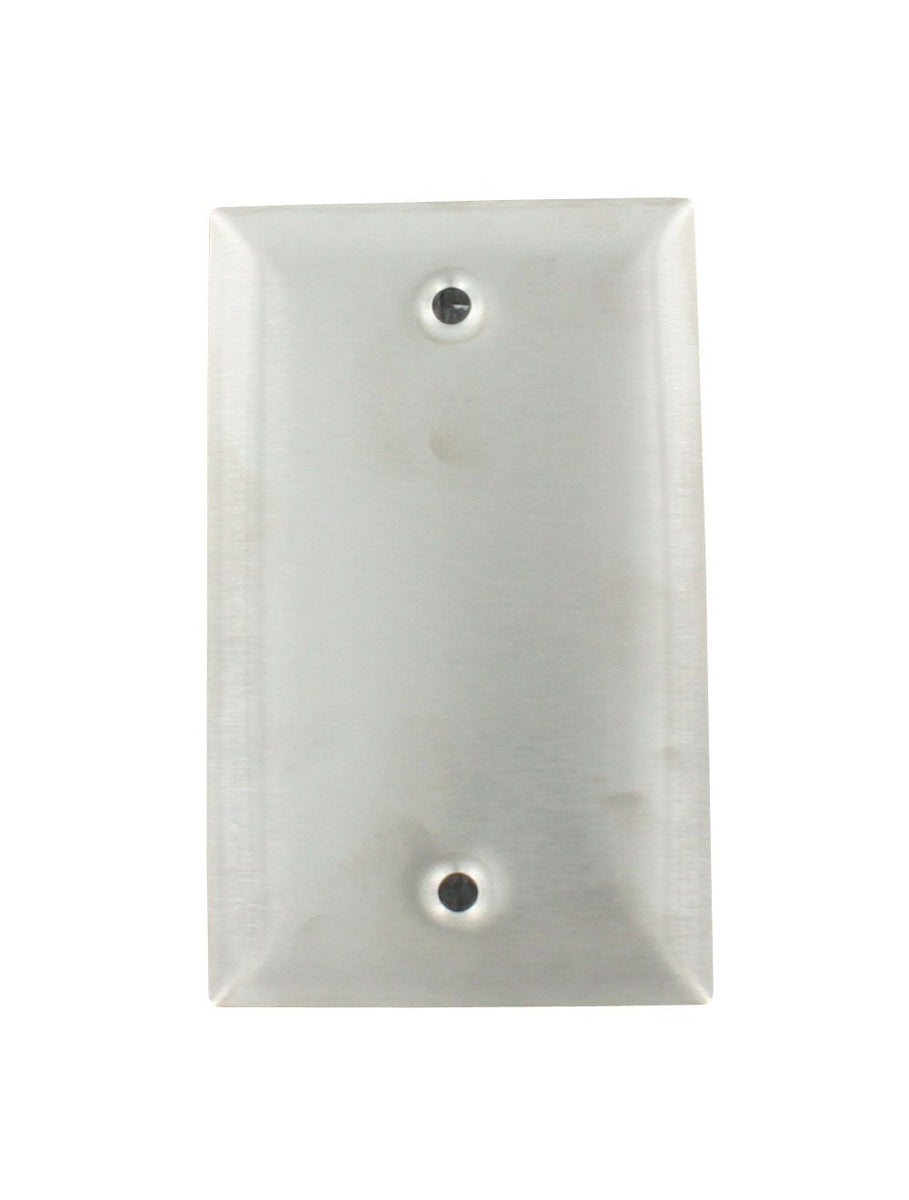

Series TE-WSS Stainless Steel Wall Plate Temperature Sensor

Screw Terminal Connection, Suitable for Wash Down Applications

The Series TE-WSS Stainless Steel Wall Plate Temperature Sensor measures the ambient air temperature in classrooms and industrial environments. By having a flush mount design, the temperature sensor can withstand a wash down. A foam gasket prevents ambient temperature from behind the wall plate from skewing the temperature measurements. The discrete stainless steel wall plate sensor also hides the sensor to prevent tampering. Each sensor comes with a terminal block and two mounting screws for quick installation.

Note: For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

TE-WND, no longer available.

Product Applications

Building automation
Room temperature monitoring
Wash down environments

SS flush plate design
Standard single gang junction box cover plate mounting

Specifications

Series: TE-WSS Stainless Steel Wall Plate Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: TE-WSS Stainless Steel Wall Plate Temperature Sensor
Accuracy: Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B ±0.3°C @ 0°C.
Temperature LImits: Operating -40 to 140°F (-40 to 60°C).
Sensor Curves: See Resistance vs. Temperature Table (page 299).
Housing Material: 304SS.
Weight: 2.3 oz (65 g).
: Resistance Curves for TE Series.
