TE-RND-E | Outside air temperature sensor with radiation shield | Pt1000 Ω RTD sensor | Dwyer Instruments
$132.16
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Dwyer InstrumentsSKU: TE-RND-E
List Price
$396.00
$132.16
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

TE-RND-E | Outside air temperature sensor with radiation shield | Pt1000 Ω RTD sensor | Dwyer Instruments

Dwyer Instruments | TE-RND-E
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TE-RND-E

Documents and manuals

Overview

Details for TE-RND-E

TE-RND-E Outside Air Sensor with Radiation Shield by Dwyer Instruments The TE-RND-E Outside Air Sensor from Dwyer Instruments provides accurate and reliable temperature measurements for your HVAC and industrial applications. Enclosed in a durable, radiation-shielded enclosure, this sensor protects the sensing element from direct sunlight and radiant heat, ensuring accurate readings even in harsh outdoor conditions. Technical Specifications: * Accuracy: ±0.5°F (±0.28°C) * Measurement Range: -40°F to 150°F (-40°C to 65°C) * Housing Material: UV-resistant polycarbonate * Element: Precision thermistor * Dimensions: 2.75" diameter x 4" length Benefits and Applications: * Precise temperature measurement in outdoor environments * Radiation shield minimizes errors caused by solar and radiant heat * Compatible with most HVAC and industrial control systems * Ideal for monitoring temperature in greenhouses, cleanrooms, and other controlled environments Order your TE-RND-E Outside Air Sensor today at our HVAC supply store! We offer competitive prices, fast shipping, and exceptional customer service. Enhance your temperature monitoring capabilities with the reliable and accurate TE-RND-E Outside Air Sensor.

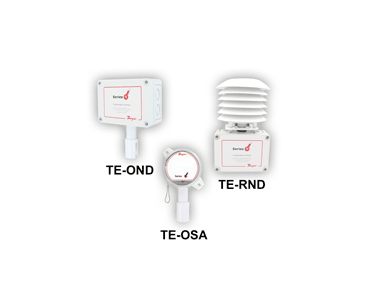

Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors

Protection Against Radiated Heat, Weatherproof Housing

The Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.

Specifications

Series
TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Category/Type
Temperature
Type
Sensors
Series
TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Accuracy
Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits
Operating: -40 to 302°F (-40 to 150°C).
Sensor Curves
See Resistance vs. Temperature Table.
Housing Material
Polycarbonate.
Enclosure Rating
TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R(IP54).
Weight
0.65 lb (295 g).
