TE-RND-B | Outside air temperature sensor with radiation shield | 10K Ω Type II thermistor | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-RND-B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TE-RND-B Documents

Instruction Manual Unpriced Resistance vs. Temperature Table More Info

Overview

Details for TE-RND-B

10K OHM OUTDOOR TEMP SENSOR: Dwyer Instruments TE-RND-BThe Dwyer Instruments TE-RND-B is a robust and precise temperature sensor designed for outdoor applications. It features a 10K OHM resistance, providing accurate temperature measurements in a wide range of environments.The sensor is constructed with durable materials to withstand harsh outdoor conditions, including extreme temperatures, moisture, and vibration. Its compact design allows for easy installation in various locations, making it suitable for monitoring temperatures in industrial, commercial, and residential settings.The TE-RND-B is ideal for monitoring outdoor temperatures for HVAC systems, greenhouses, cold storage facilities, and environmental monitoring applications. Its high accuracy and reliability make it a valuable tool for maintaining optimal temperature levels and ensuring efficient operation of equipment and processes.Shop now at our HVAC supply store for the best prices and fast shipping!

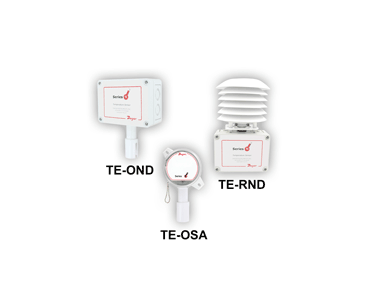

Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors

Protection Against Radiated Heat, Weatherproof Housing

The Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.

Specifications

Series: TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
Sensor Curves: See Resistance vs. Temperature Table.
Housing Material: Polycarbonate.
Enclosure Rating: TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R(IP54).
Weight: 0.65 lb (295 g).
