TE-RND-A | Outside air temperature sensor with radiation sheild | 10K Ω Type III thermistor | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-RND-A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TE-RND-A Documents

Instruction Manual Unpriced Resistance vs. Temperature Table More Info

Overview

Details for TE-RND-A

TE-RND-A Dwyer Instruments Outdoor Air Sensor The TE-RND-A outdoor air sensor from Dwyer Instruments accurately measures temperature and humidity levels in outdoor environments. It is ideal for monitoring conditions in various applications, including HVAC, agriculture, and industrial settings. This sensor features a rugged, weatherproof construction, ensuring reliable performance in harsh conditions. Its integrated temperature and humidity elements provide precise measurements, even in extreme temperatures and humidity levels. The sensor's compact size allows for easy installation in tight spaces. Benefits: - Accurate temperature and humidity measurements - Weatherproof construction for durability - Compact design for convenient installation - Suitable for a wide range of outdoor applications Specifications: - Temperature Range: -40Â°F to 158Â°F (-40Â°C to 70Â°C) - Humidity Range: 0 to 100% RH - Accuracy: Â±1.8Â°F (Â±1Â°C), Â±3% RH - Output: 4-20 mA - Dimensions: 2.4" x 1.9" x 1.9" (61 mm x 48 mm x 48 mm) Order your TE-RND-A Dwyer Instruments Outdoor Air Sensor today for accurate and reliable environmental monitoring. Our HVAC supply store offers competitive prices and fast shipping.

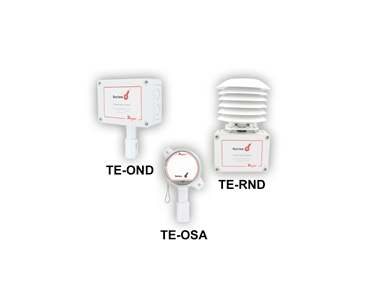

Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors

Protection Against Radiated Heat, Weatherproof Housing

The Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.

Specifications

Series: TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Category/Type: Temperature
Type: Sensors
Series: TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
Sensor Curves: See Resistance vs. Temperature Table.
Housing Material: Polycarbonate.
Enclosure Rating: TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R(IP54).
Weight: 0.65 lb (295 g).
