TE-DFG-B1244-00 | Air Duct Temperature Sensor | 12 inch probe | 10K Ohm Type II Thermistor | GP housing. | Dwyer Instruments

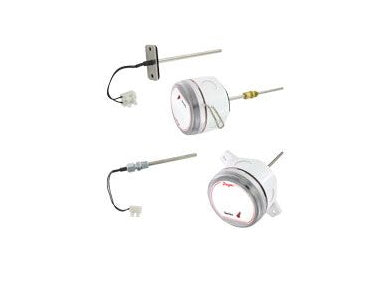

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-DFG-B1244-00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TE-DFG-B1244-00 Documents

Unpriced Resistance vs. Temperature Table More Info

Overview

Details for TE-DFG-B1244-00

TE-DFG-B1244-00 Thermistor by Dwyer Instruments Dwyer Instruments' TE-DFG-B1244-00 is a 12-inch, 10K Ohm thermistor of type 2. This thermistor is designed to measure temperature changes in a wide range of industrial applications. Its sturdy construction and reliable performance make it a valuable tool for temperature monitoring and control systems. Key Features: * Type 2 thermistor * Resistance: 10K Ohm * Length: 12 inches * Durable construction * Accurate and reliable measurements Applications: The TE-DFG-B1244-00 thermistor is ideal for various industrial applications, including: * HVAC systems * Refrigeration equipment * Process control * Energy management * Research and development Our HVAC supply store offers competitive prices and fast shipping on Dwyer Instruments products, including the TE-DFG-B1244-00 thermistor. Trust Our HVAC supply store for all your industrial supply needs!

Series TE Duct and Immersion Building Automation Temperature Sensor main

Available up to 18" Probe Length, Thermistor or RTD Outputs

The Series TE Duct and Immersion Temperature Sensor can be used to monitor air or water temperature throughout a building management system or an air handler unit. Flanged duct sensors monitor the supply or return air and provide a thermistor or RTD output to the digital controller. Immersion sensors which are supplied with compression fittings are typically used to monitor the hot or chilled water lines throughout a building. Thermowells are recommended, but not required on the immersion sensors.

For variable air volume applications, the Series TE can be configured to have 8' plenum rated cable with flying leads. Standard units come with 4" leads with an integral terminal block to eliminate carrying extra wire nuts. For housing models, multiple knockouts provide easy conduit access to any side of the housing. The 1/4 turn lid comes with a chain to prevent it from being lost during installation.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Building automation
VAV temperature sensing
Chiller or boiler loops
AHU monitoring

Easy to mount external tab housing and flange options for duct applications
1/4 turn housing cover with chain to prevent dropping
Multiple conduit knockouts for easy installation positioning
8´ plenum rated cable option
Terminal connector eliminates need for wire nuts

Specifications

Series: TE Duct and Immersion Building Automation Temperature Sensor main
Category/Type: Temperature
Type: Sensors
Series: TE Duct and Immersion Building Automation Temperature Sensor main
Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor DIN Class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
Sensor Curves: See Resistance vs. Temperature Table.
Cable Rating: Plenum option includes UL listed plenum cable.
Housing Material: Meets UL; 94 V-O polycarbonate plastic.
Housing Rating: NEMA 4X (IP66) (DFW; IBW only).
Weight: 5.3 oz (150.3 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
