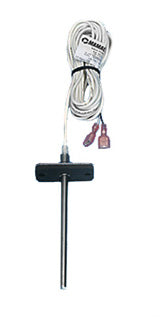

TE-701-BX-3-B | 1000 ohm (2 wire) | Duct Temperature Sensor | Sensor Length: 6 inch | Included Wire Length: 12 feet | MAMAC Systems

TE-701-BX-3-B 6" 1K Ohm RTD VAV Air TempSen by MAMAC Systems Monitor and control airflow with precision using the TE-701-BX-3-B 6" 1K Ohm RTD VAV Air TempSen from MAMAC Systems. This robust sensor is engineered for reliable and accurate measurement of air temperature in demanding industrial environments. Featuring a 6" stainless steel probe and a 1K Ohm RTD (Resistance Temperature Detector) element, the TE-701-BX-3-B provides precise and stable temperature readings. Its VAV (Variable Air Volume) capability allows for dynamic airflow control in ventilation and HVAC systems. The TE-701-BX-3-B is constructed with durable materials to withstand challenging conditions. Its 316 stainless steel probe ensures excellent corrosion resistance and longevity, while the epoxy-sealed construction protects against moisture and contamination. Designed with ease of installation in mind, the TE-701-BX-3-B is equipped with a 3/4" NPT male thread for secure mounting. Its compact size and low profile make it suitable for various applications, including air handling units, ductwork, and industrial machinery. Trust the TE-701-BX-3-B 6" 1K Ohm RTD VAV Air TempSen from MAMAC Systems to enhance the performance and efficiency of your industrial airflow systems. Our HVAC supply store offers the best prices and fast shipping for all your industrial equipment needs.

•  Designed for VAV discharge air temperature sensing. Comes with 12 feet of plenum rated cable and 1/4" quick disconnects for ease of installation to any VAV controller.
• 304 SS thin wall probe with a cold rolled hermetically sealed end forms a monolithic encapsulation cavity for the sensor and is immune to failures caused by high humidity, contamination, thermal shock and vibration.
• The flat probe end provides a large thermally sensitive area and the sensor is in direct thermal contact to this surface. As a result, extremely fast response is achieved to changes in temperature.
• Probe is crimped to the flange using a patented process to provide a rugged, reliable and low profile attachment for ease of installation.
• More than 16 types of interchangeable NTC thermistors, precision platinum, nickel or balco RTDs are available for universal compatibility.

TE-701-BX is an enhanced version of the popular TE-701-B duct temperature sensor. Plenum rated cable has been extended to 12 feet and 1/4" quick disconnects have been added to customize the sensor for VAV applications and to provide a low cost, labor saving solution for most of the VAV controllers in the industry. The sensor is available in 4 or 6 inch probe length to accommodate any size discharge air duct. For additional specifications please refer to the TE-701/702 data sheet.
