TDS122 | Thermal dispersion flow switch | PP/PPS wetted parts | 4.5" (11.4 cm) length. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TDS122

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TDS122 Documents

Instruction Manual Series TDS Catalog Page More Info

Overview

Details for TDS122

Thermal Dispersion Flow Switch â€“ TDS122 by Dwyer Instruments The TDS122 by Dwyer Instruments is a Thermal Dispersion Flow Switch designed for precise flow measurement of gases in various industrial applications. It features a rugged, compact design, ensuring reliable performance in demanding environments. Key Features: - Sensor Type: Thermal Dispersion - Output: SPDT Relay - Switch Point: Adjustable, 0.5 to 100 SFPM - Flow Range: 0.5 to 2000 SFPM - Response Time: 0.2 seconds - Pressure Rating: 300 psig - Temperature Rating: 300Â°F (150Â°C) Benefits: - High Accuracy and Repeatability: Provides precise flow measurement with a repeatability of Â±1% of reading. - Compact Design: Compact and lightweight construction allows for easy installation in space-constrained areas. - Rugged Construction: Durable stainless steel construction ensures long-term operation in harsh industrial environments. - Versatile Application: Suitable for various applications including air flow measurement in HVAC systems, leak detection, and process control. Applications: - HVAC system monitoring and control - Process flow monitoring - Air flow measurement - Leak detection - Industrial automation Shop our HVAC supply store for the Best Prices! our HVAC supply store offers competitive prices, fast shipping, and a wide selection of industrial products. Contact us today for a quote or to place an order.

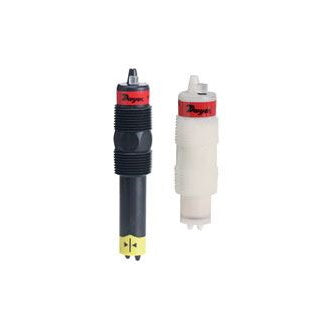

Series TDS Thermal Dispersion Flow Switch

Adjustable Switch Point, LED Indication

The Series TDS Thermal Dispersion Flow Switch offers solid state flow detection of non-coating liquids for pump and processprotection. SPDT output allows for interfacing with remote PLC or relay control device. The adjustable switch point is factory calibrated at 0.2 fps with LED indication of flow and calibration status. Units feature selectable NO or NC operation and are not damaged by over-ranging flow velocities.

Specifications

Series: TDS Thermal Dispersion Flow Switch
Category/Type: Flow
Type: Flow Switches
Series: TDS Thermal Dispersion Flow Switch
Service: Liquids.
Wetted Materials: Polypropylene/PPS or Polyvinylidene Fluoride.
Range: Range: 0.04 to 10 fps (1.2X10-2 to 3.05 m/s)
Temperature Limits: 32 to 140°F (0 to 60°C).
Pressure Limits: 150 psi (10 bar) @ 77°F (25°C); derated @ 1.667 psi (.113 bar) per °C above 25°C.
Repeatability: ±5% of setpoint.
Switch Type: SPDT.
Electrical Rating: 60 VAC/60 VDC @ 1 A.
Electrical Connections: 22 AWG 3-wire; 10 ft (3 m) length.
Process Connections: 3/4" male NPT.
Mounting Orientation: Any orientation; for pipe sizes 3/4" to 1-1/2" use 3.0" (7.6 cm) length switch; for 2" to 16" pipe sizes use 4.5" (11.4 cm) length switch.
Setpoint Adjustment: 0.04 to 3 fps (1.2X10-2 to .91 m/s).
Setpoint Drift: 0.5% of setpoint.
Response Time: 1-10 seconds.
Viscosity Range: 1 to 200 centipoise.
Supply Voltage: 12 to 36 VDC.
Consumption: 50 mA (nominal).
Indication: LED for flow status.
Weight: 3 oz (94 g).
Agency Approvals: CE.
