TCS-4010 | Thermocouple temperature switch | type J/K/S Input | 110 V | °F. | Dwyer Instruments

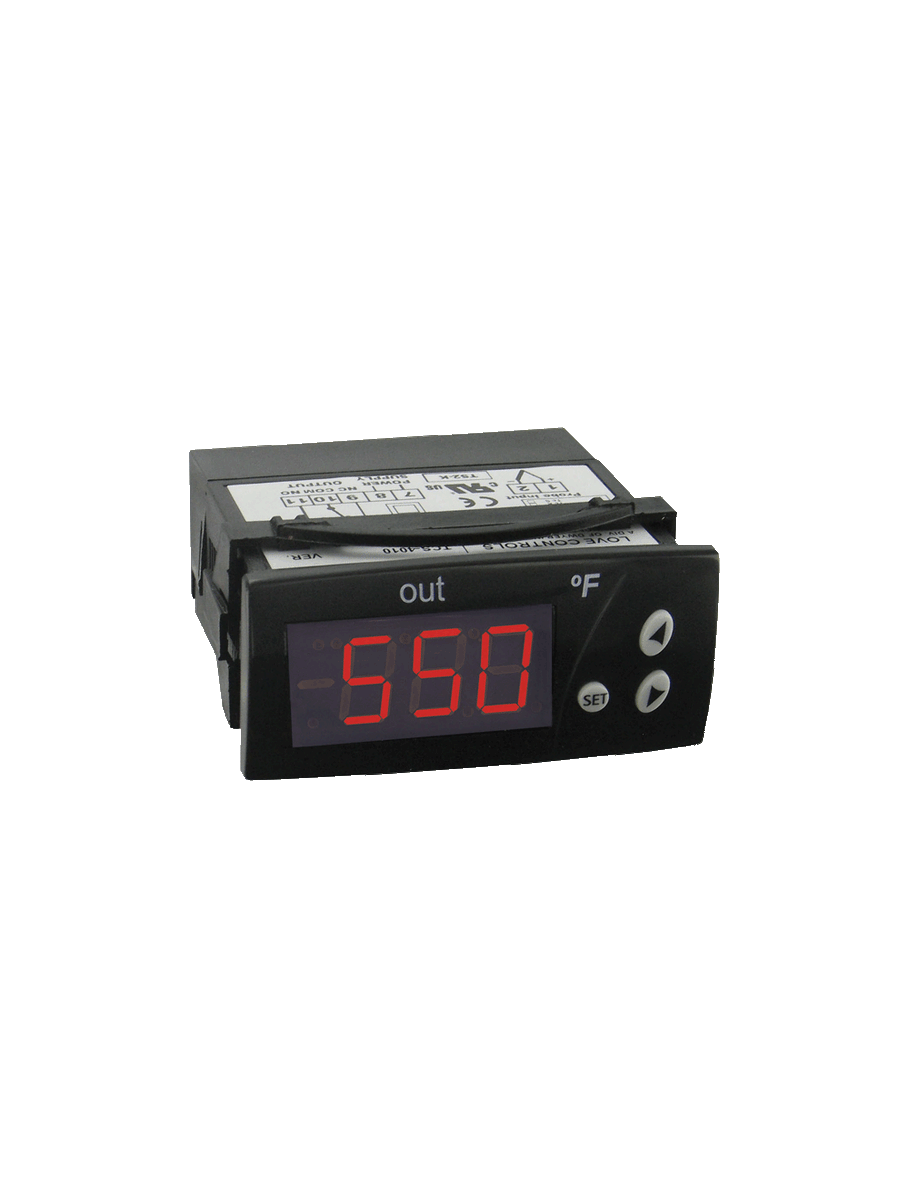

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TCS-4010

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TCS-4010 Documents

Instruction Manual Series TCS Catalog Page TCS More Info

Overview

Details for TCS-4010

Dwyer Instruments TCS-4010 Temperature Switch The Dwyer Instruments TCS-4010 is a versatile temperature switch compatible with Type J, K, and S thermocouples. It provides accurate and reliable temperature monitoring for various industrial applications. Key Features: * Wide temperature range: -328 to 2,400Â°F (-200 to 1,315Â°C) * Adjustable setpoint and deadband for precise control * Two 10-Amp SPDT switches for flexibility in control configurations * DIN rail mountable for easy installation and space optimization * 1/2 DIN size with clear LED indicators for visual status monitoring Applications: * Temperature monitoring and control in HVAC systems * Industrial process control * Food and beverage processing * Power generation * Environmental monitoring Benefits: * Enhanced temperature accuracy and reliability * Customizable control settings for specific application requirements * Space-saving design for efficient panel mounting * Clear visual indication for quick status checks * Trusted Dwyer Instruments brand for quality and performance Specifications: * Type: Temperature switch * Thermocouple compatibility: Type J/K/S * Temperature range: -328 to 2,400Â°F (-200 to 1,315Â°C) * Setpoint range: Adjustable within temperature range * Deadband range: Adjustable * Output: Two 10-Amp SPDT switches * Mounting: DIN rail * Size: 1/2 DIN * Power supply: 24 VAC/VDC For your industrial temperature monitoring needs, choose the Dwyer Instruments TCS-4010 Temperature Switch. Trust our HVAC supply store for the best prices and fast shipping on all your industrial products.

SERIES TCS THERMOCOUPLE TEMPERATURE SWITCH

Heating and Cooling Control, 16 Amp Rating, Two Alarms

The Series TCS Thermocouple Temperature Switch monitors and controlstemperature while offering a wide temperature range, two selectable alarm sets, andan internal buzzer indicating alarm condition or error.

Product Applications

Food service equipment
Industrial process control

Heating or cooling modes
Internal alarm buzzer
Configuration key to quickly load parameters from one unit to another

Specifications

Series: TCS THERMOCOUPLE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TCS THERMOCOUPLE TEMPERATURE SWITCH
Probe Range: 32 to 999°F (0 to700°C) for Type J thermocouple; 32 to999°F (0 to 999°C) for Type K or Sthermocouples.
Input: Type J or K thermocouple.
Output: SPDT relay rated 16 A @ 240VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF.
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC; or 24 VAC/VDC(depending on model).
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to 70°C); Storage: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; cURus.
