TAC-L | Contact/Non-Contact Digital Tachometer | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TAC-L

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TAC-L Documents

Instruction Manual Model TAC-L Catalog Page More Info

Overview

Details for TAC-L

Dwyer Instruments TAC-L Digital Tachometer: Precision Measurement for Industrial Applications The Dwyer Instruments TAC-L Digital Tachometer is a highly accurate and reliable instrument designed to measure the rotational speed of moving objects. With a compact and handheld design, the TAC-L is ideal for industrial engineers and maintenance professionals who require precise measurements during equipment testing, troubleshooting, and maintenance. The TAC-L features a large, dual-line LCD display that conveniently displays the rotational speed in revolutions per minute (RPM). The contact mode allows users to directly measure the speed of rotating shafts, while the optical mode utilizes a non-contact laser for remote measurements. With its robust construction and durable components, the TAC-L withstands the demands of industrial environments. Its ergonomic design ensures comfortable and extended use. The TAC-L is powered by a 9-volt battery and provides extended battery life for extended use before replacement. In conclusion, the Dwyer Instruments TAC-L Digital Tachometer is an indispensable tool for industrial engineers and maintenance professionals seeking precision, reliability, and ease of use. Our HVAC supply store offers the best prices and fast shipping to meet your industrial equipment needs. Upgrade your measurement capabilities today and experience the accuracy and efficiency of the TAC-L Digital Tachometer.

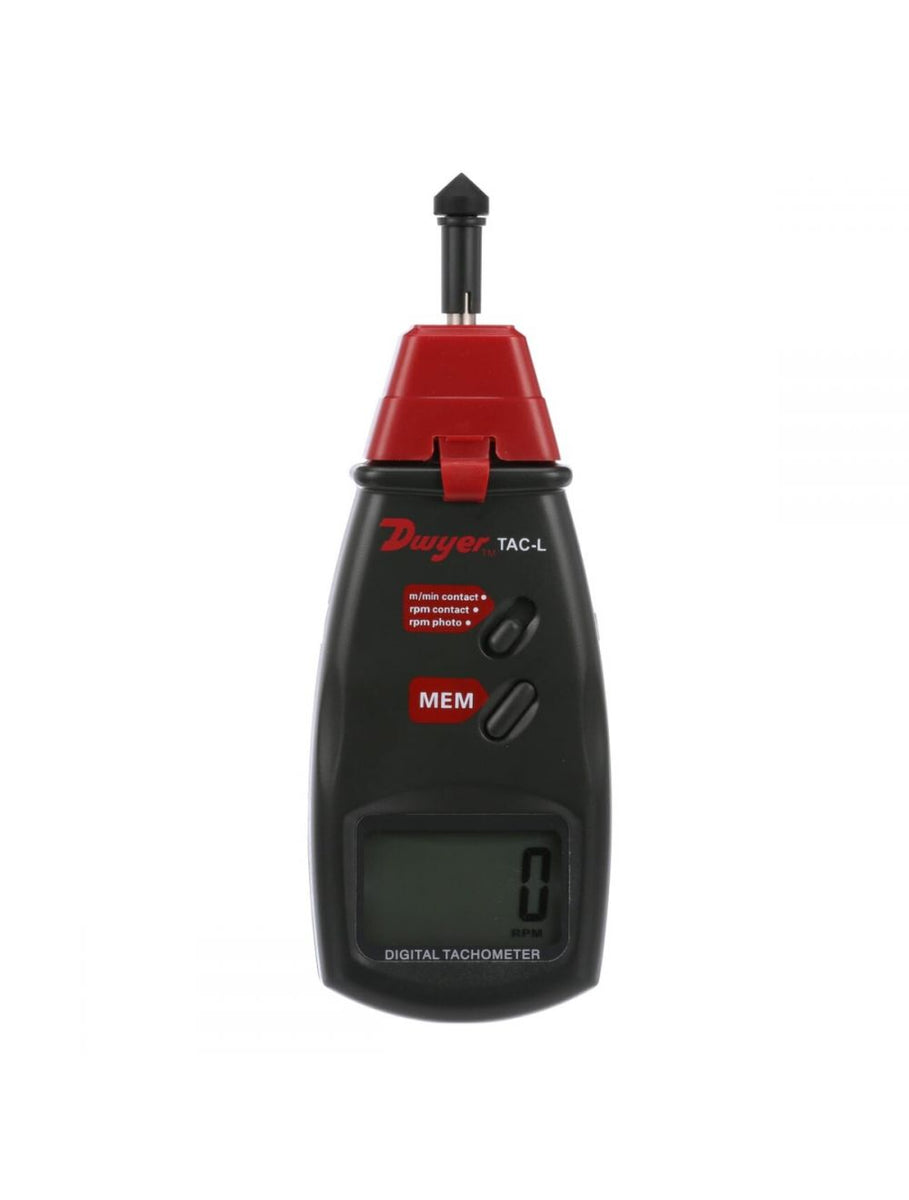

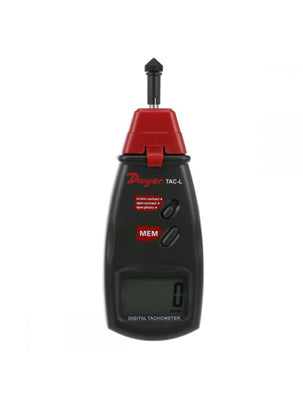

MODEL TAC-L PORTABLE DIGITAL TACHOMETER

Contact or Photo Non-Contact Operation, Backlit LCD

Model TAC-L Portable Digital Tachometer measures rotational speedeither by contacting a rotatable head to the shaft of the object, or using photosensor to detect the reflections from the laser. The laser target can record froma distance of up to 20 inches and gives a more accurate measurement than LEDtargeting. Model TAC-L includes a large LCD with a backlight for use in darkareas. This tachometer is made of a strong, lightweight ABS plastic housing,which is designed to comfortably fit in the hand of the user. Supplied with thismodel are 3 contact rotational heads, a contact surface wheel, and a protectivecarrying case.

Product Applications

HVAC fan motors
Powder and bulk conveyor belts

Non-contact operation can record from a distance of up to 20 inches
Memory function recalls records since last power off
Large backlit LCD for visibility in dark areas

Specifications

Accuracy: ±(0.05% + 1 digit).
Display: Backlit LCD; 5 digits; 7 segments; 0.7" (1.8 cm) H.
Range: Non-contact (RPM): 2.5 to 99;999 RPM;Contact (RPM): 0.5 to 19;999 RPM;Surface Speed (m/min): 0.05 to 1999.9 m/min.
Resolution: Non-contact (RPM): 0.1 RPM (2.5 to 999.9 RPM);1 RPM (1000 to 99;999 RPM);Contact (RPM): 0.1 RPM (0.5 to 999.9 RPM);1 RPM (1000 to 19;999 RPM);Surface Speed (m/min): 0.01 m/min (0.05 to 99.99 m/min);0.1 m/min (100.0 to 1999.9 m/min).
Non-contact Measuring Distance Range: 2 to 20" (5 to 50 cm).
Sampling Time: 0.8 s.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: (4) 1.5 V AA alkaline batteries; not provided; user replaceable.
Weight: 1.37 lb (.620 kg).
Agency Approvals: CE; RoHS.
