TABKIT-NIST | Complete NIST calibrated Test | Adjust and Balance Kit with a hard carrying case. | Dwyer Instruments

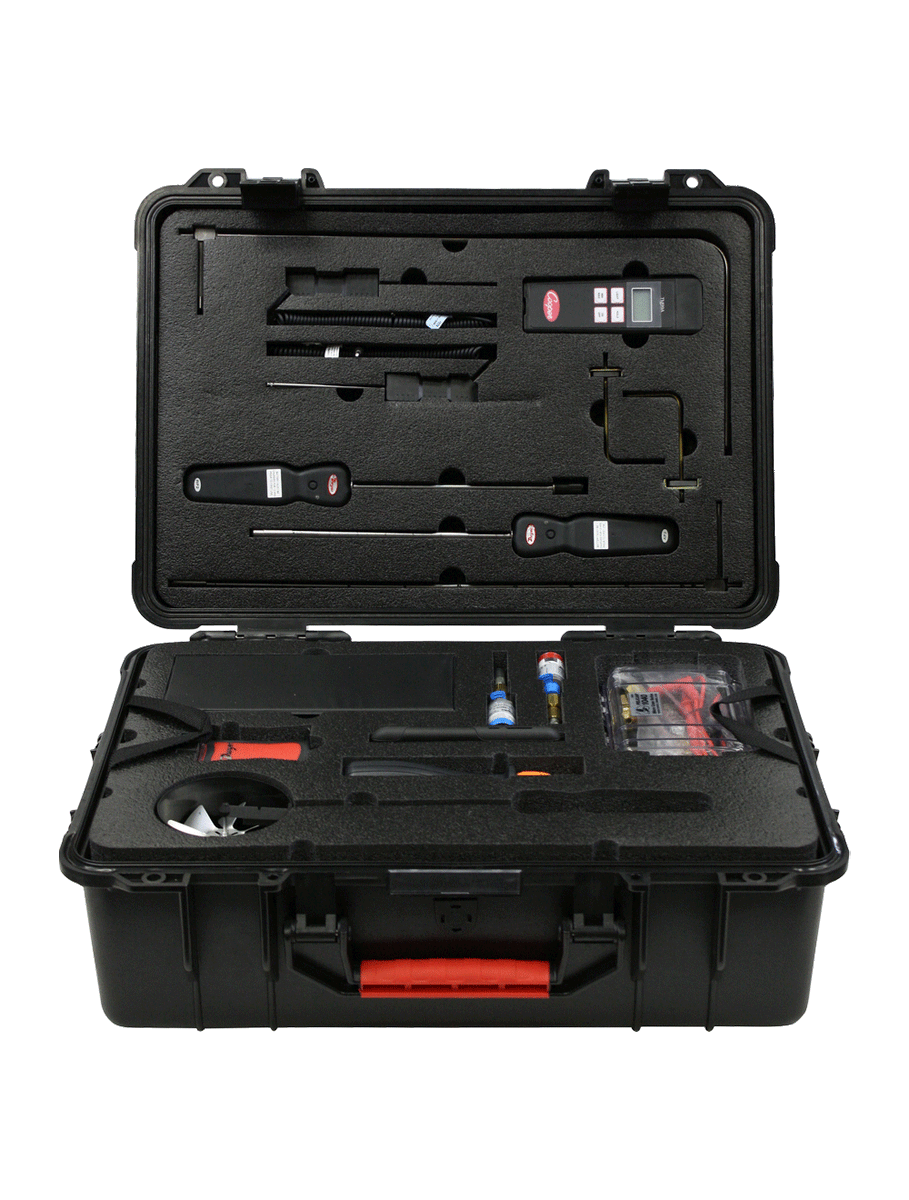

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TABKIT-NIST
Documents and manuals
Overview
Details for TABKIT-NIST
NIST Calibrated TestAdjBalKit: The TABKIT-NISTfrom Dwyer Instruments is a high-precision testing and adjustment kit designed for HVAC/R professionals. It includes a NIST-traceable digital manometer, a digital temperature probe, and a set of precision adjustment tools. The kit is used to calibrate and adjust pressure switches, transmitters, and other HVAC/R components. The digital manometer features a large, backlit display, a built-in pressure sensor, and a variety of pressure units. The digital temperature probe is used to measure temperature in Fahrenheit or Celsius. The kit also includes a set of precision adjustment tools, including a screwdriver, a hex key, and a set of Allen wrenches. Our HVAC supply store offers the best prices and fast shipping on all Dwyer Instruments products!
Complete Kit Includes:
California Residents: Click Here for Proposition 65 WARNING.
SERIES TABKIT TEST, ADJUST, AND BALANCE KIT
A Complete Balancing Technician Solution
The Series TABKIT Test, Adjust, and Balance Kit combines all essential air, water,temperature, humidity, and electrical test instruments are included in this kit, creatingthe ultimate air and water balancing solution. The Series TABKIT has everything abalancing technician needs in a single case. A certificate of NIST calibration is includedfor each instrument inside the kit, ensuring accurate, durable, repeatable, and reliablemeasurements every time. When the products need to be recalibrated, save time bysending everything back to Dwyer. Our lab is able to service all equipment within thekit, and ensure they’re as accurate as the day you originally received them.
Complete Kit Includes:
- Model 160G Averaging Air Flow Grid
- Model DP3 Bluetooth-Enabled Wireless Differential Pressure Module
- Model AP3 Bluetooth-Enabled Wireless Thermo-Anemometer Probe
- Model RP3 Bluetooth-Enabled Wireless Thermo-Hygrometer Probe
- Model VP3 Bluetooth-Enabled Wireless 100 mm Vane Thermo-Anemometer Probe
- Model TAC-L Portable Digital Tachometer
- Model CM-1 Digital Clamp Meter
- Series 490W Wireless Hydronic Differential Pressure Manometer
- Model 160F 18" Straight Stainless Steel Pitot Tube
- Model 160-18 18" Stainless Steel Pitot Tube
- Two Model A-303 Static Pressure Tips with Magnetic Mounting
- Cooper-Atkins Model TM99A Thermistor Temperature Instrument
- Cooper-Atkins Model 1075 General Purpose Puncture Probe
- Hard Case
Product Applications
- Building balancing
- Building commissioning
- Testing HVAC equipment performance
- Everything a balancing technician needs in a single case
- Best in class low flow velocity readings
- Repeatable measurements
Specifications
- Series
- TABKIT TEST; ADJUST; AND BALANCE KIT
- freeship
- Category/Type
- Test Equipment
- Type
- HVAC Balancing Instruments
- Series
- TABKIT TEST; ADJUST; AND BALANCE KIT
- AIR
- Series DP3
- Accuracy*
- ±0.5% FS span @ 25°C(includes non linearity; hysteresis; and nonrepeatability).
- Pressure Limits
- ±10 in w.c. (±2.5 kPa).
- Temperature Limits
- Operating: -4 to140°F (-20 to 60°C); Storage: -40 to 185°F(-40 to 85°C).
- Model AP3
- Range
- Air velocity: 0 to 6000 FPM (0 to 30 m/s); Volumetric air: 999;999 in selected flow units; Temperature: -20 to212°F (-29 to 100°C).
- Accuracy
- Air velocity*: ±3% FS withintemperature range of 40 to 90°F (4 to32°C) -TAB option: 50 to 3900 FPM (0.25to 20 m/s); Temperature: ±0.5°F (±0.28°C).
- Model VP3
- Range
- Air velocity: 40 to 5000 FPM (0.2to 25 m/s); Volumetric air: 999;999 inselected flow units; Temperature: -20 to212°F (-29 to 100°C); Relative humidity: 0to 100% RH.
- Accuracy
- Air velocity*: 0.25 to 10m/s: ±1.5% of reading ±20 FPM (±0.1m/s); 10 to 20 m/s: 1.5% of reading±40 FPM (±0.2 m/s); 20 to 25 m/s:±1.5% of reading ±60 FPM (±0.3 m/s);Temperature: ±0.54°F @ 77°F (±0.3°C@ 25°C); Relative humidity: ±2% @ 77°F(25°C) (10 to 90% RH); ±4% (0 to 10% RHand 90 to 100%).
- Resolution
- 1 FPM (0.001 m/s).
- TEMPERATURE
- TM99A and 1075
- Range
- 0 to 200°F (-20 to 100°C).
- Accuracy*
- ±0.5% of reading + 2.0°F (±0.5% of reading + 1.0°C).
- Resolution
- 0.1°F (0.1°C).
- HUMIDITY
- Model RP3
- Range
- RH: 0 to 100% (noncondensing);Temperature: -22 to 140°F(-30 to 60°C).
- Accuracy
- RH*: ±2% @ 25°C (10 to90% RH); ±4% (0 to 10; 90 to 100% RH);Temperature: ±0.54°F @ 77°F (±0.3°C).
- ELECTRICAL
- Model CM-1
- AC Voltage
- 0.1-600 V ± (1.0% + 5 dgt).
- DC Voltage
- 0.1-600 V ± (1.0% + 3 dgt).
- AC Current
- 0.1-400 A ± (2.0% + 10 dgt).
- Resistance
- 0.1-400 Ω ± (1.0% + 5 dgt).
- ROTATION
- Model TAC-L
- Range
- Non-contact (RPM): 2.5 to99;999 RPM; Contact (RPM): 0.5 to19;999 RPM; Surface speed (m/min):0.05 to 19;999 m/min.
- Resolution
- Non-contact* (RPM): 0.1RPM (2.5 to 999.9 RPM); 1 RPM (1000to 19;000 RPM); Surface speed (m/min):0.01 m/min (0.05 to 99.99 m/min); 0.1 m/min (100.0 to 1999.9 m/min).
- HYDRONIC
- A-490W-6
- Range
- 0.4 to 200 psi; 3 to 1400 kPa. 0.4 to 75 psi; 3 to 500 kPa.
- Accuracy
- 2% of reading ±1 psi; 2% of reading ±7 kPa. 2% of reading ±0.5 psi; 2% of reading ±3.5 kPa.
- Resolution
- 0.1 psi; 1.0 kPa. 0.01 psi; 0.1 kPa.
- *NIST calibrated.
