SSV-S7F1 | 2-way 316SS solenoid valve | 1-1/4" | 0.5-8 bar | fkm seal | 110 VAC | Dwyer Instruments

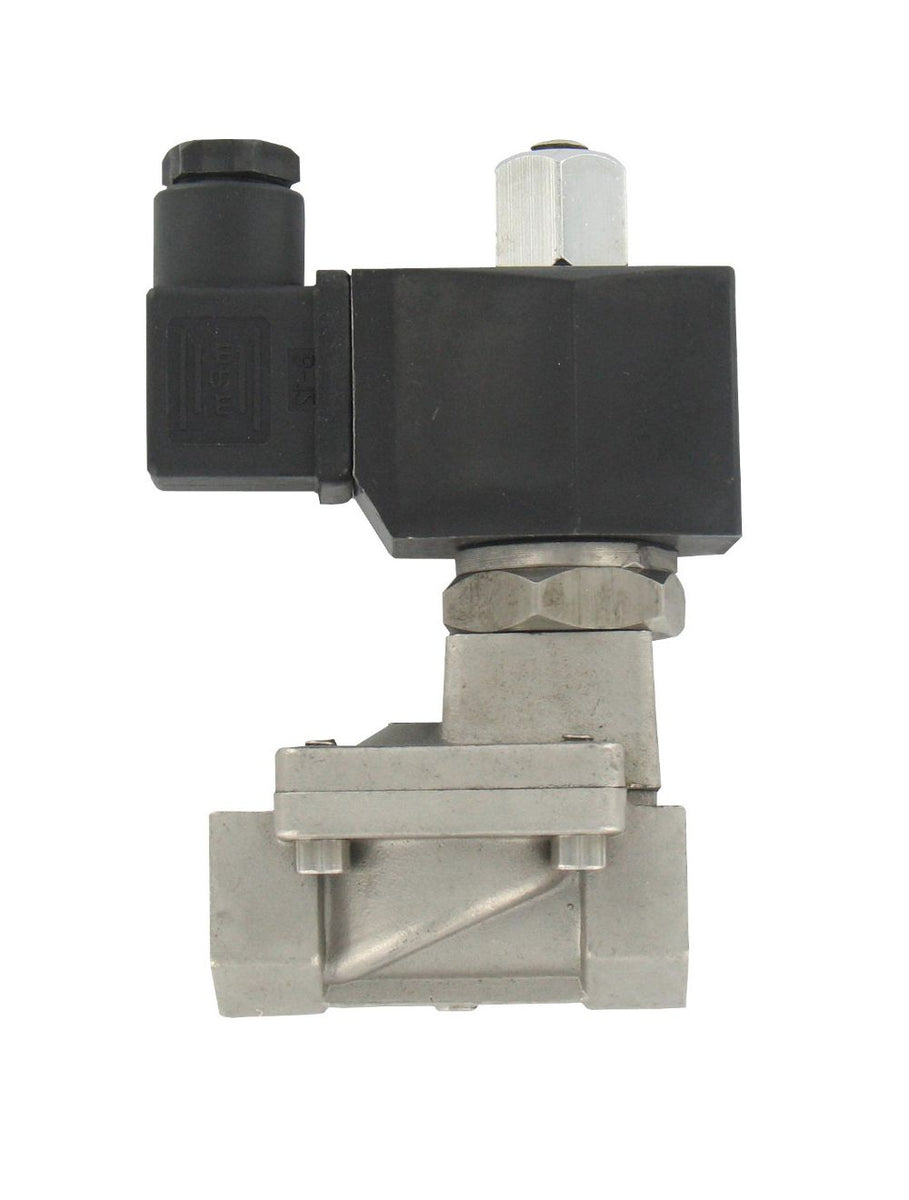

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSV-S7F1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SSV-S7F1 Documents

Instruction Manual Series SSV-S Catalog Page More Info

Overview

Details for SSV-S7F1

The SSV-S7F1 solenoid valve from Dwyer Instruments is a 1 1/4" stainless steel valve designed for industrial applications requiring durability and reliability. Its robust construction ensures long-lasting performance, while its high flow capacity makes it suitable for demanding applications. Ideal for use in corrosive environments, this solenoid valve is commonly used in fluid power systems, chemical processing, and other industrial settings. Technical Specifications: * Size: 1 1/4" * Material: Stainless steel * Voltage: 120VAC, 24VAC, or 24VDC * Pressure Range: 0-150 PSI * Flow Rate: Up to 100 GPM * Temperature Range: 32-180Â°F * Media: Air, water, and other compatible fluids With its superior quality and dependable performance, the Dwyer Instruments SSV-S7F1 solenoid valve is an excellent choice for your industrial fluid control needs. Shop now at our HVAC supply store for the best prices and fast shipping!

Series SSV-S SS Solenoid Valves – 2-Way Guided NO

Compact Design, Immune to Mounting Orientation

The Series SSV-S Solenoid Valves is compact, general-service, two-way guide type solenoid valves for air, gas, water, and other liquid applications. They are available in stainless steel with a normally open design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SSV-S valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure: 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar);3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar).
Pressure Limit: 174 psi (12 bar).
Wetted Material: Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer.
Temperature Limits:: Process: 248°F (120°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements: Standard: 110 VAC; Optional: 220 VAC; 24 VDC consultfactory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically above valve.
Weight: See table on catalog page.
Type of Operation: NO.
Agency Approvals: CE.
