SSV-S5F1 | 2-way 316SS solenoid valve | 3/4" | 0.5-8 bar | fkm seal | 110 VAC | Dwyer Instruments

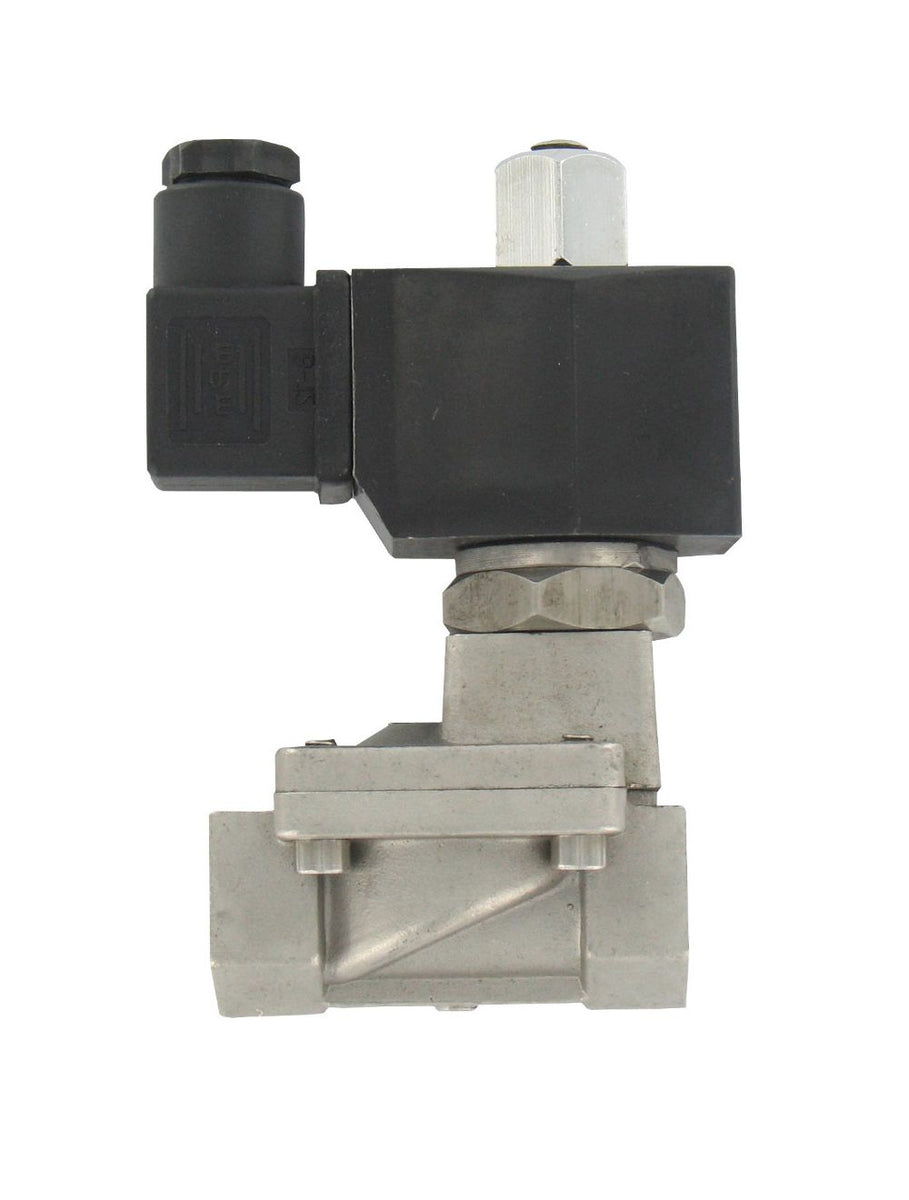

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSV-S5F1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SSV-S5F1 Documents

Instruction Manual Series SSV-S Catalog Page More Info

Overview

Details for SSV-S5F1

2W 316SS 3/4" SOLENOID VALVE [SSV-S5F1] by Dwyer Instruments The SSV-S5F1 by Dwyer Instruments is a 2-way, 3/4-inch solenoid valve constructed from durable 316 stainless steel. This valve is suitable for use in demanding industrial environments and applications requiring high corrosion resistance. Key Features: * Media: Liquid or Gas * Connection Size: 3/4-inch NPT * Pressure Range: 0 to 150 psi * Temperature Range: -40Â°F to 180Â°F * Coil Voltage: 24 VAC, 120 VAC, 240 VAC Benefits: * Fast and reliable operation * Tight shutoff * Long service life * Suitable for a wide range of media Applications: * Process control * Instrumentation * Chemical injection * Water treatment Trust our HVAC supply store for the best prices and fast shipping on Dwyer Instruments' SSV-S5F1 solenoid valve. Order now and experience the exceptional quality and performance of this industrial-grade product!

Series SSV-S SS Solenoid Valves – 2-Way Guided NO

Compact Design, Immune to Mounting Orientation

The Series SSV-S Solenoid Valves is compact, general-service, two-way guide type solenoid valves for air, gas, water, and other liquid applications. They are available in stainless steel with a normally open design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SSV-S valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure: 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar);3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar).
Pressure Limit: 174 psi (12 bar).
Wetted Material: Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer.
Temperature Limits:: Process: 248°F (120°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements: Standard: 110 VAC; Optional: 220 VAC; 24 VDC consultfactory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically above valve.
Weight: See table on catalog page.
Type of Operation: NO.
Agency Approvals: CE.
