SSV-S4F1 | 2-way 316SS solenoid valve | 1/2" | 0.5-8 bar | fkm seal | 110 VAC | Dwyer Instruments

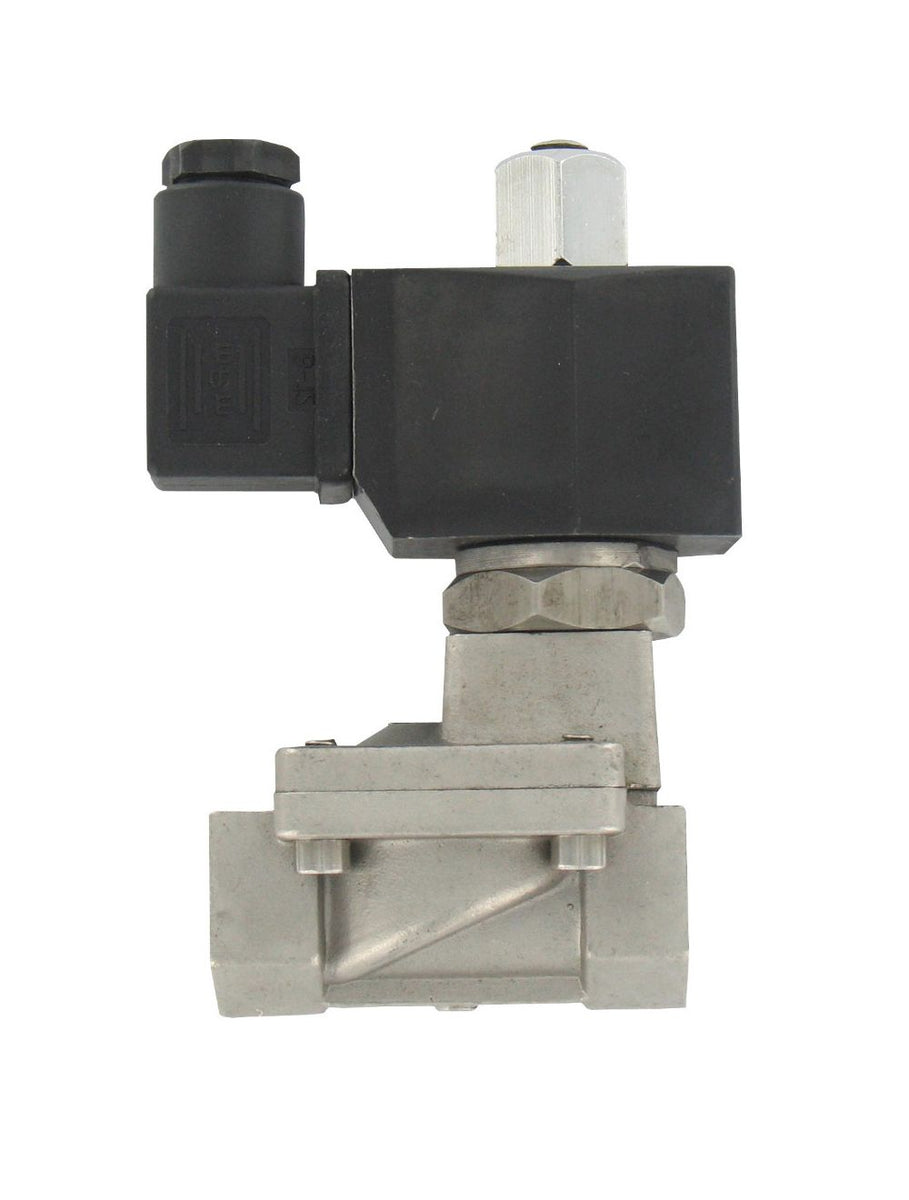

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSV-S4F1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SSV-S4F1 Documents

Instruction Manual Series SSV-S Catalog Page More Info

Overview

Details for SSV-S4F1

Dwyer Instruments SSV-S4F1 Solenoid Valve: Precision Flow Control for Industrial Applications The Dwyer Instruments SSV-S4F1 solenoid valve is engineered for precise flow control in industrial settings. This 2-way, 1/2" valve boasts a wide operating range of 0.5-8 BAR, ensuring accurate regulation of fluid flow. Crafted from durable materials, the SSV-S4F1 valve features a stainless steel body and stem, providing exceptional corrosion resistance and longevity. Its compact design allows for easy installation and minimal space requirements. The valve's solenoid actuator operates on a 2-position, normally closed (NC) configuration and has a voltage range of 24 VAC/VDC. It offers fast response times and reliable operation, making it ideal for applications that require precise flow control and quick cycle rates. The Dwyer Instruments SSV-S4F1 solenoid valve excels in various industrial applications, including chemical processing, water treatment, HVAC systems, and pneumatic controls. Its robust construction and reliable performance make it an excellent choice for demanding industrial environments. Our HVAC supply store offers the SSV-S4F1 solenoid valve at the best prices with fast shipping. Trust us for your industrial supply needs!

Series SSV-S SS Solenoid Valves – 2-Way Guided NO

Compact Design, Immune to Mounting Orientation

The Series SSV-S Solenoid Valves is compact, general-service, two-way guide type solenoid valves for air, gas, water, and other liquid applications. They are available in stainless steel with a normally open design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SSV-S valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SSV-S SS Solenoid Valves – 2-Way Guided NO
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure: 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar);3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar).
Pressure Limit: 174 psi (12 bar).
Wetted Material: Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer.
Temperature Limits:: Process: 248°F (120°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements: Standard: 110 VAC; Optional: 220 VAC; 24 VDC consultfactory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically above valve.
Weight: See table on catalog page.
Type of Operation: NO.
Agency Approvals: CE.
