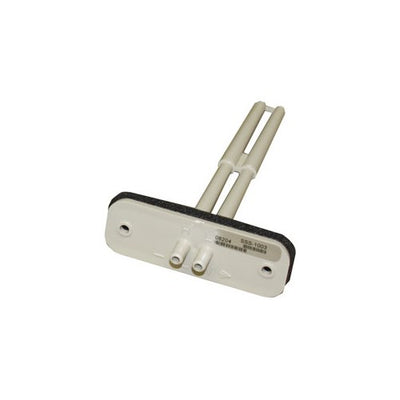

SSS-1002 | Sensor: Differential Pressure, 3-5/32" | KMC Controls

Diff#FlwSnsr 3-5/32" 1/4" Conn (SSS-1002) by KMC Controls: Experience exceptional control and precision with KMC Controls' Diff#FlwSnsr 3-5/32" 1/4" Conn (SSS-1002). This sensor offers accurate differential flow monitoring for various industrial applications. Its rugged construction ensures optimal performance and longevity in demanding operating conditions. Key Features: * Precision measurement of differential flow * Robust design for harsh environments * 3-5/32" and 1/4" connection sizes for versatile integration Benefits: * Optimize process control with accurate flow measurements * Increase reliability with durable construction * Enhance operational efficiency with simplified installation Applications: * Process monitoring and control * Industrial automation * Energy management systems Trust our HVAC supply store for the largest selection and best prices on industrial products. Order your Diff#FlwSnsr 3-5/32" 1/4" Conn (SSS-1002) today and experience superior flow monitoring solutions!

KMC SSS-10xx pickup tubes are designed to help sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to help sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These pickup tubes are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x pickup tubes with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the pickup tubes and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the pickup tubes and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x pickup tubes.

SSS-100x (light gray) models have 1/4″ connections for 3/8″ OD polyethylene tubing; SSS-101x (light almond) models have 3/16″ connections for 1/4″ OD polyethylene tubing.
