SSE-2011 | Sensor: Duct Airflow and Temp, 4", Conformal Coat | KMC Controls

SSE-2011 5-Wire Sensor by KMC Controls The SSE-2011 is a precision 5-Wire Sensor designed for accurate measurement in a wide range of industrial applications. With its compact design and robust construction, it is ideal for monitoring critical parameters in demanding environments. Key Features: * 4" Insertion depth * High accuracy and repeatability * Durable construction with IP67 rating * Wide operating temperature range (-40°F to +250°F) * Compatible with a variety of controllers Applications: * Temperature measurement in harsh environments * Monitoring of temperature-sensitive processes * Automotive and aerospace testing * HVAC systems * Industrial machinery Technical Specifications: * Sensor Type: Thermocouple * Insertion Depth: 4" * Accuracy: ±1.8°F (0.1°C) * Repeatability: ±0.9°F (0.05°C) * Operating Temperature Range: -40°F to +250°F (-40°C to +121°C) Benefits: * Provides reliable and precise temperature measurement * Robust design withstands harsh conditions * Compatible with various controllers for versatility Our HVAC supply store offers the best prices and fast shipping for all your industrial supply needs. Contact us today for more information and to place your order!

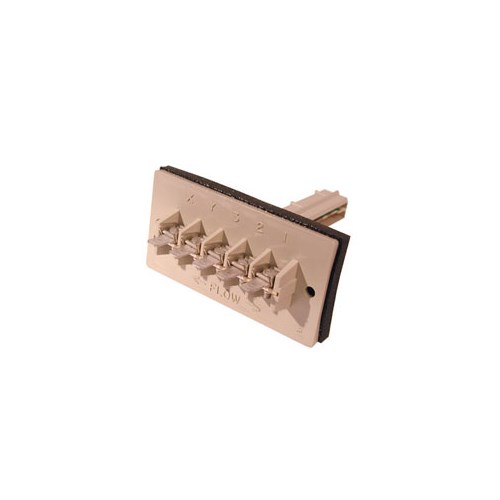

The SSE-1000/2000 Duct Flow Sensors are designed for use with VAV terminal units in HVAC systems. They are used in conjunction with the CEP series of controller-actuators to maintain the desired airflow to an occupied space. The CEP model must be ordered separately. (Refer to the CEP-4000 data sheet for related model numbers and the application guide for usage.)

Two sensor lengths are available to accommodate various box inlet sizes. Sensors are inserted into the inlet collar of the box, and the foam backing on the sensor head protects against conditioned air leakage.

The SSE-20xx models incorporate two additional terminals (“X” and “Y”) which allow duct temperature sensing for items such as the REE-1005/1014 heating-cooling change-over relay. In addition, the airflow portion of the signal is fully compensated for changes in temperature for accurate control of delivered air.

SSE-1011/1012/2011/2012 have conformal silicone coatings for air streams that may be contaminated with corrosive materials or high humidity.
