SPPM-35-C | Smart Programmable Panel Meter with 0-50 mA input with 3.5" display | Dwyer Instruments

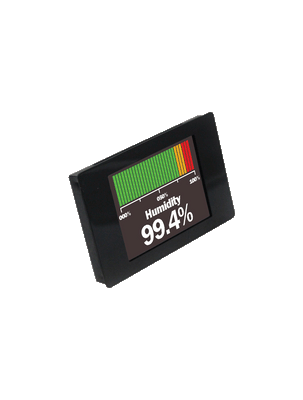

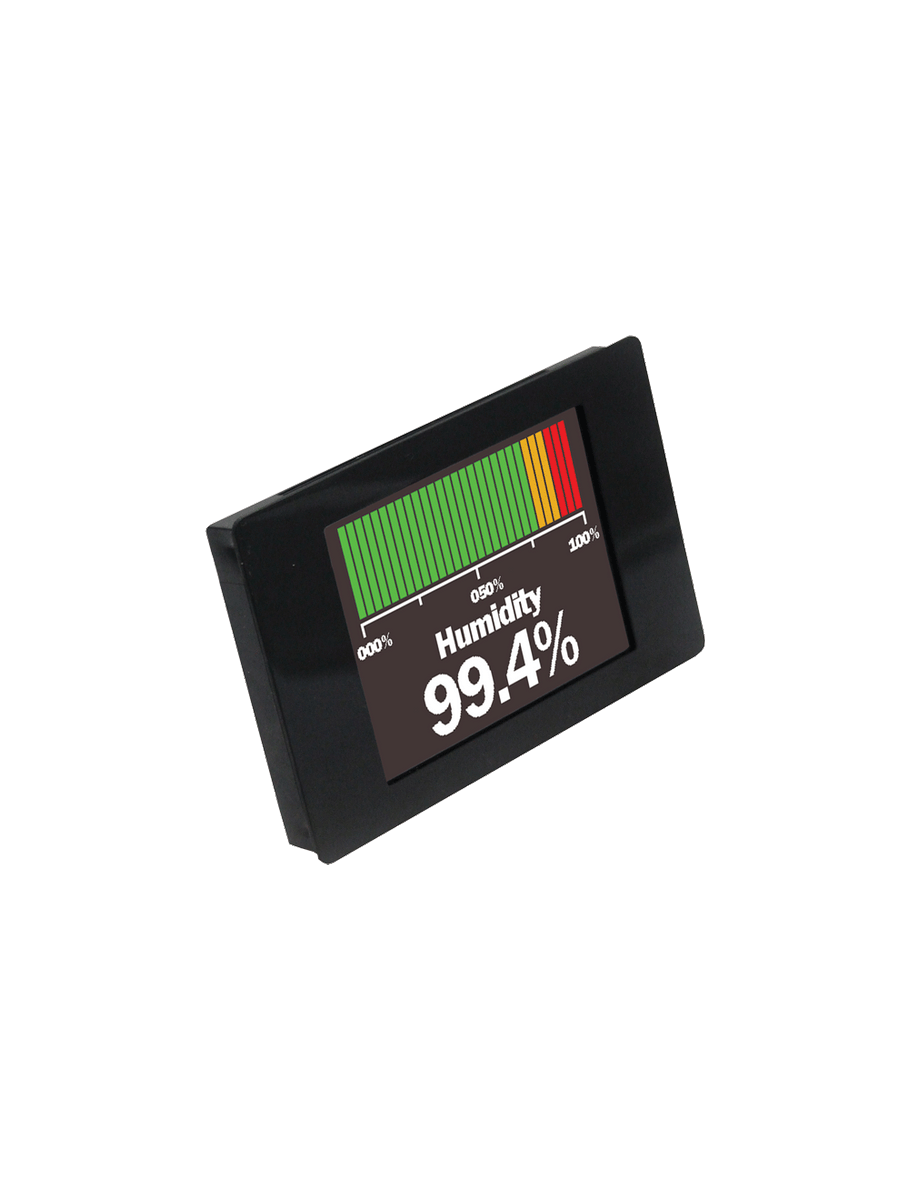

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SPPM-35-C

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SPPM-35-C Documents

SPPM SPPM-C SPPM-HSG A-SPPM-TC Series SPPM Catalog Page More Info

Overview

Details for SPPM-35-C

Dwyer Instruments SPPM-35-C Panel Meter: A Precision Measurement Tool for Industrial Applications The SPPM-35-C panel meter from Dwyer Instruments is a highly accurate and reliable measuring device designed for industrial applications. This compact and versatile meter features a 3.5-inch digital display for easy readability, making it ideal for monitoring critical parameters in real-time. With its 0-50mA measurement range, the SPPM-35-C is capable of precisely measuring current levels in various electrical circuits. Its high accuracy ensures that you get accurate and dependable readings. The meter's robust construction and IP67 rating make it suitable for use in demanding industrial environments, providing reliable performance even in harsh conditions. The SPPM-35-C panel meter comes equipped with user-friendly features, including programmable alarm points and data logging capabilities. This allows for convenient monitoring and recording of critical parameters, helping you optimize your operations and minimize downtime. Our HVAC supply store offers the SPPM-35-C panel meter at competitive prices with fast shipping. Whether you need to monitor current levels in manufacturing, power distribution, or any other industrial application, this versatile meter is an excellent choice. Trust Our HVAC supply store for all your industrial supply needs, where we provide the best prices and the fastest delivery times in the industry!

SERIES SPPM SMART PROGRAMMABLE PANEL METER

Fully Field Configurable, 16-Bit Color Touch Screen Display

The Series SPPM Smart Programmable Panel Meter is a configurable full-color touch-screen display that can be used in a variety of applications. By using a USB connection, the panel meter can be configured with downloadable software for any computer running Windows® based software. The display features remarkable graphics that can easily be customized to read and/or graph pressure, temperature, humidity, gas concentration, or many other parameters.

See the Series SPPM2 for full configurable touch-screen capability.

Product Applications

Tank Level
Power Monitoring
Room Pressurization Conditions
Indoor Air Quality Conditions

Available with 2.4", 2.8", or 3.5" color touch screen display
Free downloadable Windows® software allows the unit to be customized to specific applications

Specifications

Series: SPPM SMART PROGRAMMABLE PANEL METER
Category/Type: Pressure
Type: Remote Displays
Series: SPPM SMART PROGRAMMABLE PANEL METER
Inputs: Current: 0 to 50 mA; scalable (factory set from 4 to 20 mA); Voltage: 0 to 40 VDC; scalable (factory set from0 to 10 V).
Accuracy: 0.1%.
Resolution: 0.3 to 9.8 mV (depending on input range).
Power Supply: 4-30 VDC max or via USB.
Current Consumption: 190 mA max.
Display: 2.4"; 2.8" or 3.5" TFT full color screen.
Display Resolution: 320 x 240 pixels.
Sampling Rate: 3 samples/second.
Operating Temperature: 32 to 104°F (0 to 40°C).
Warm Up: 30 seconds
Mounting: Panel mount.
Connection: Screw terminals; pin connection; or USB.
Software Requirements: Compatible with Windows® 7; Windows® 8 and Windows® 10.
Weight: 2.8 oz (79.4 g).
Approvals: CE; RoHS.
: SPPM-HSG SPECIFICATIONS
Service: Indoor or outdoor.
Material: Painted aluminum and glass.
Enclosure Rating: NEMA 4X (IP66).
: A-SPPM-TC SPECIFICATIONS
Probe Measurement Range: K-type: -328 to 2462°F (-200 to 1350°C);J-type: -328 to 2174°F (-200 to 1190°C);T-type: -328 to 734°F (-200 to 390°C).
Temperature Limits: 14 to 104°F (-10 to 40°C).
Resolution: 1.0°F (0.5°C).
Power Requirements: Powered by USB port through SPPM panelmeter.
Accuracy: ±2.0°F (±1.0°C).
Weight: 0.9 oz (25.5 g).
Agency Approvals: RoHS.
