SPPM-24-C | Smart Programmable Panel Meter with 0-50 mA input with 2.4" display | Dwyer Instruments

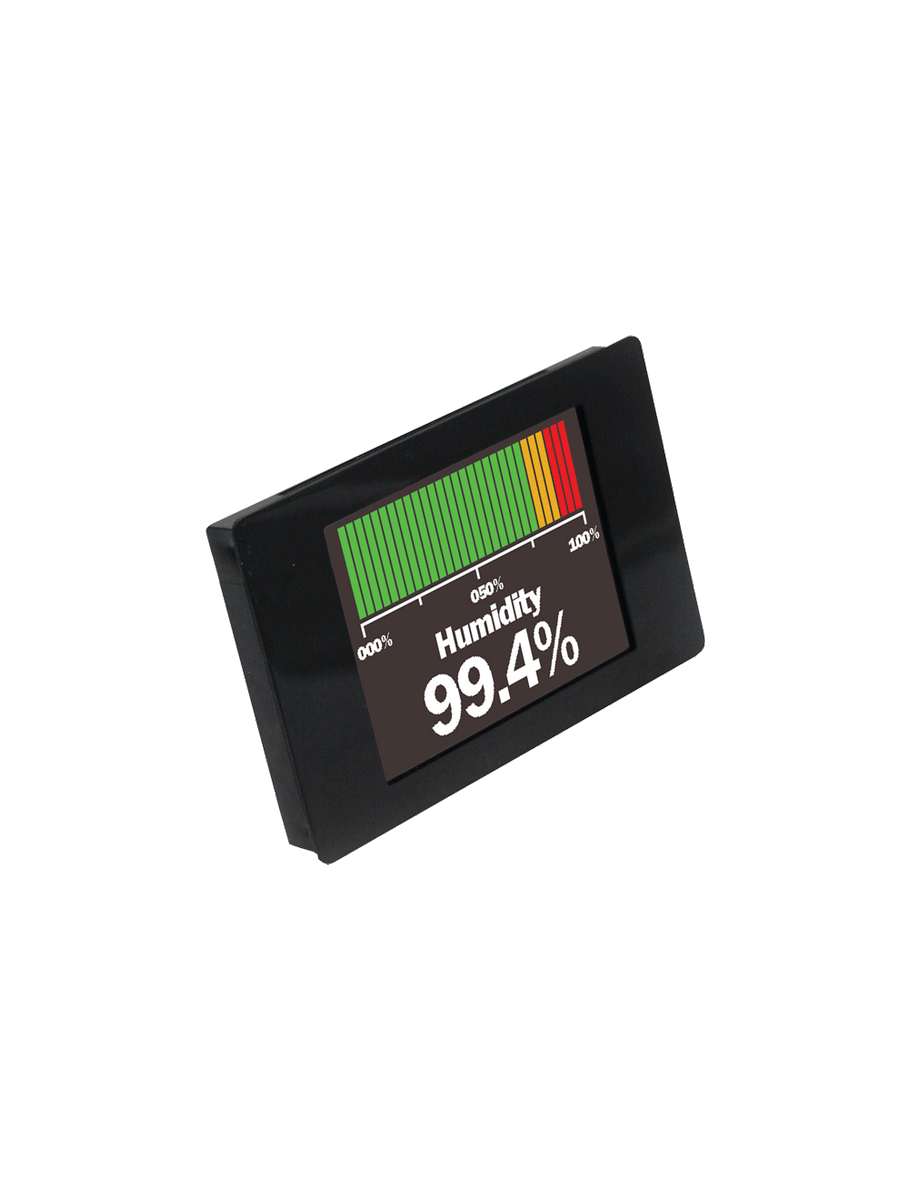

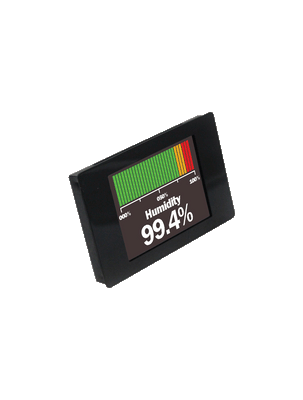

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SPPM-24-C

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SPPM-24-C Documents

SPPM SPPM-C SPPM-HSG A-SPPM-TC Series SPPM Catalog Page More Info

Overview

Details for SPPM-24-C

SPPM-24-C Programmable Panel Meter by Dwyer Instruments is a versatile and reliable solution for industrial engineers and maintenance professionals. Featuring a robust construction, this panel meter is designed for durability in demanding environments. Its programmable display offers precise monitoring and control, while the versatile inputs and outputs allow integration with a wide range of systems. The user-friendly interface simplifies configuration and operation, making it an ideal choice for monitoring critical parameters in various applications. Key Features: * Programmable display for versatile monitoring and control * Multiple inputs and outputs for seamless integration * Durable construction for long-lasting performance * User-friendly interface for simplified operation Benefits: * Accurate and reliable monitoring of critical parameters * Customizable display for specific application needs * Easy integration with existing systems * Reduced downtime and increased efficiency Our HVAC supply store | We offer the best prices and fast shipping for all your industrial needs!

SERIES SPPM SMART PROGRAMMABLE PANEL METER

Fully Field Configurable, 16-Bit Color Touch Screen Display

The Series SPPM Smart Programmable Panel Meter is a configurable full-color touch-screen display that can be used in a variety of applications. By using a USB connection, the panel meter can be configured with downloadable software for any computer running Windows® based software. The display features remarkable graphics that can easily be customized to read and/or graph pressure, temperature, humidity, gas concentration, or many other parameters.

See the Series SPPM2 for full configurable touch-screen capability.

Product Applications

Tank Level
Power Monitoring
Room Pressurization Conditions
Indoor Air Quality Conditions

Available with 2.4", 2.8", or 3.5" color touch screen display
Free downloadable Windows® software allows the unit to be customized to specific applications

Specifications

Series: SPPM SMART PROGRAMMABLE PANEL METER
Category/Type: Pressure
Type: Remote Displays
Series: SPPM SMART PROGRAMMABLE PANEL METER
Inputs: Current: 0 to 50 mA; scalable (factory set from 4 to 20 mA); Voltage: 0 to 40 VDC; scalable (factory set from0 to 10 V).
Accuracy: 0.1%.
Resolution: 0.3 to 9.8 mV (depending on input range).
Power Supply: 4-30 VDC max or via USB.
Current Consumption: 190 mA max.
Display: 2.4"; 2.8" or 3.5" TFT full color screen.
Display Resolution: 320 x 240 pixels.
Sampling Rate: 3 samples/second.
Operating Temperature: 32 to 104°F (0 to 40°C).
Warm Up: 30 seconds
Mounting: Panel mount.
Connection: Screw terminals; pin connection; or USB.
Software Requirements: Compatible with Windows® 7; Windows® 8 and Windows® 10.
Weight: 2.8 oz (79.4 g).
Approvals: CE; RoHS.
: SPPM-HSG SPECIFICATIONS
Service: Indoor or outdoor.
Material: Painted aluminum and glass.
Enclosure Rating: NEMA 4X (IP66).
: A-SPPM-TC SPECIFICATIONS
Probe Measurement Range: K-type: -328 to 2462°F (-200 to 1350°C);J-type: -328 to 2174°F (-200 to 1190°C);T-type: -328 to 734°F (-200 to 390°C).
Temperature Limits: 14 to 104°F (-10 to 40°C).
Resolution: 1.0°F (0.5°C).
Power Requirements: Powered by USB port through SPPM panelmeter.
Accuracy: ±2.0°F (±1.0°C).
Weight: 0.9 oz (25.5 g).
Agency Approvals: RoHS.
