SGZ-D10722N-GF | 2.5" SS Gage | 1/4" npt bottom connection | range 200 psi | glycerin filled | Dwyer Instruments

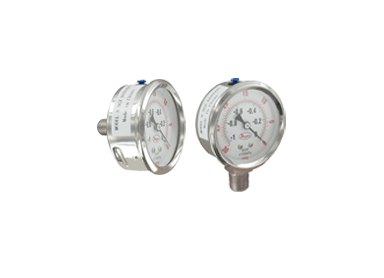

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SGZ-D10722N-GF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SGZ-D10722N-GF Documents

Series SGZ Catalog Page SGZ More Info

Overview

Details for SGZ-D10722N-GF

The Dwyer SGZ-D10722N-GF is a 2 1/2" 0-200# 1/4" NPT GLYFILL. This non-replacement product offers durable construction and reliable performance in demanding industrial environments. Its key features include: - Durable materials: Constructed with a sturdy stainless steel stem, brass housing, and Viton diaphragm for corrosion resistance and longevity. - Versatile pressure range: Delivers accurate pressure readings within a range of 0 to 200# for various applications. - 1/4" NPT connection: Facilitates easy installation into systems using a 1/4" National Pipe Thread connection. - Glycerin-filled design: Reduces pointer flutter and ensures smooth and consistent readings even in harsh conditions. The SGZ-D10722N-GF is an ideal solution for industrial engineers and maintenance professionals requiring a reliable and accurate pressure indicator. It is commonly used in hydraulic systems, pumps, and compressors to monitor pressure levels effectively. Our HVAC supply store offers this product at the most competitive prices with fast shipping. Order now for your industrial pressure measurement needs!

SERIES SGZ 2.5" INDUSTRIAL PRESSURE GAGE

1.5% FS Accuracy, 316 SS Wetted Parts, Dual PSI/Bar x100 kPa Scales

The Series SGZ Industrial Pressure Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scaleaccuracy. The Series SGZ gages are designed with 304 SS housings and 316 SS wettedparts for excellent chemical compatibility. These gages cover a wide variety of ranges ineither bottom or back connection configurations. Series SGZ gages employ an easy-openbreather plug on top, which allows liquid filled units to breathe, relieving any built upinternal pressures. Plug easily pops open and does not need to be entirely removed or cutlike a typical gages' rubber plug grommet.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Vacuums in pneumatic conveying lines
Positive pressure in compressed air headers
Corrosive ambient environments

Stainless steel housing and wetted parts to resist ambient corrosion for longerservice life in harsh environments
Higher accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
Optional sliding pointer clearly mark to make visible critical ranges and high and lowpoints
Liquid fillable gage with easy open breather plug provides smoother dampedmovement of pointer
Back or bottom mounting and compact size provides for mounting with dimensionallimitations

Specifications

Series: SGZ 2.5" INDUSTRIAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: SGZ 2.5" INDUSTRIAL PRESSURE GAGE
Service: Compatible gases and liquids.
Wetted Materials: 316 L SS Tube; 316 SS connector.
Housing: 304 SS.
Lens: Polycarbonate.
Accuracy: ±1.5% FS.
Pressure Limit: FS range.
Temperature Limits: -4 to 140°F (-20 to 60°C).
Size: 2.5" (63 mm).
Process Connections: 1/4" male NPT.
Weight: 4.9 oz (141 g) bottom; 5.8 oz (164 g) back. Add 3.7 oz (104 g) for glycerinfill.
