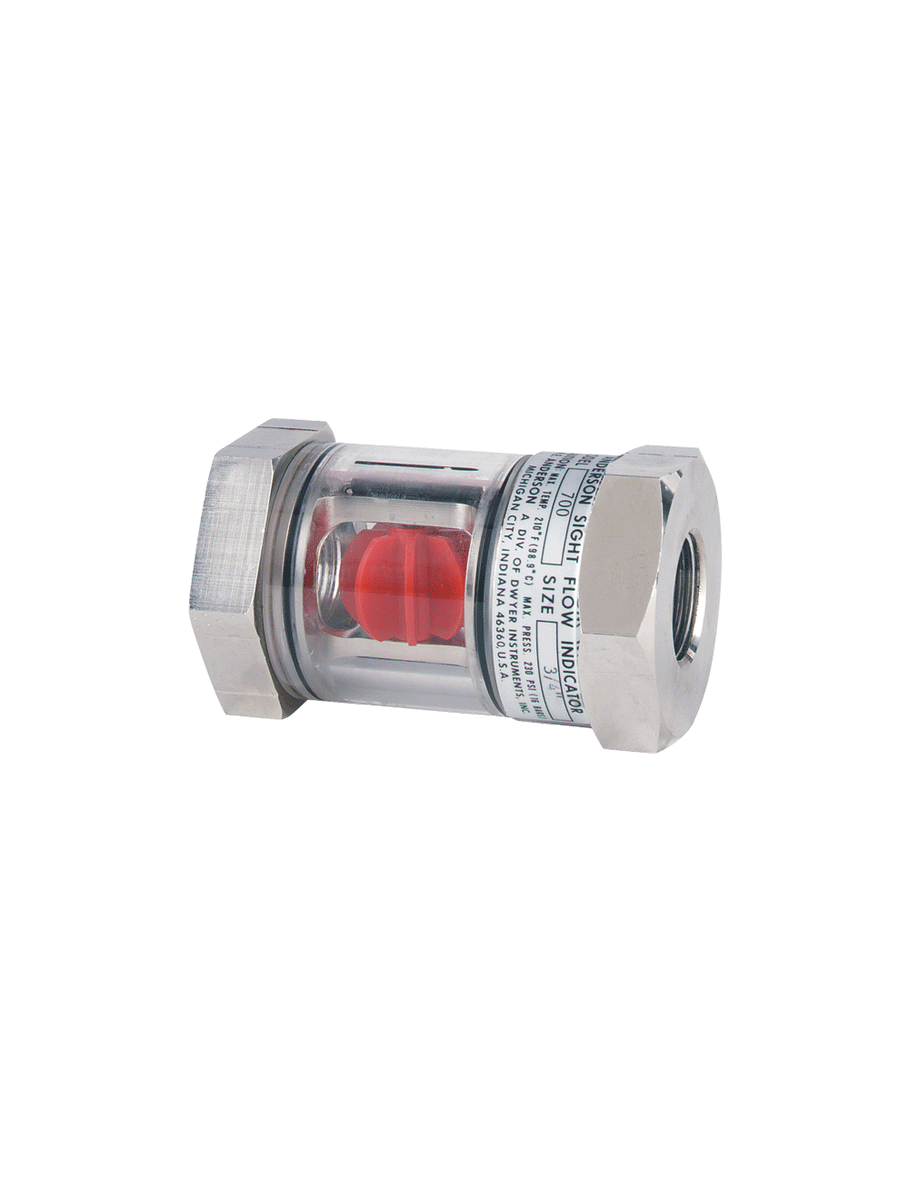

SFI-700-1 | Sight flow indicator | 1" body | 4.875" L x 2.750" H (124 x 70 mm) | 5.1 lb (2.3 kg). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-700-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-700-1 Documents

Instruction Manual Series SFI-700 Catalog Page More Info

Overview

Details for SFI-700-1

Dwyer Instruments' SFI-700-1 is a highly precise tube type flow indicator designed for accurate measurement of fluid flow rates. Constructed with a 1-inch tube diameter, this indicator provides reliable and visual flow monitoring in a variety of industrial applications. Its durable acrylic body withstands harsh operating conditions, while its stainless steel internals ensure longevity and corrosion resistance. The SFI-700-1 features a wide operating temperature range of -20 to 150 degrees Fahrenheit and a pressure rating of 150 psi. With its compact design and easy-to-read scale, this indicator is ideal for monitoring flow in pipelines, process lines, and other fluid systems. Trust Dwyer Instruments' SFI-700-1 for precise flow measurement and enhanced process control. Order now from our HVAC supply store and experience the best prices and fast shipping!

Series SFI-700 MIDWEST Sight Flow Indicator

Inexpensive Protection for Expensive Equipment and Systems

Series 700 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 700 Series offer threaded process connections, tube style viewing, and bodies of brass or 316 SS. Featured in the 700 is a bright red Acetal rotating impeller that is easy to view from any angle with the glass tube construction. Maintenance is simple with internal wipers, just rotate the glass tube and restore visibility without disrupting the flow.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-700 MIDWEST Sight Flow Indicator
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-700 MIDWEST Sight Flow Indicator
Service: Compatible gases and liquids.
Wetted Materials: Tube: tempered borosilicate; Body: brass or 316 SS; Gasket: fluoroelastomer; Indicator: acetal.
Temperature Limit: 212°F (100°C).
Pressure Limit: 230 psig (15.86 bar).
Connections: Threaded.
