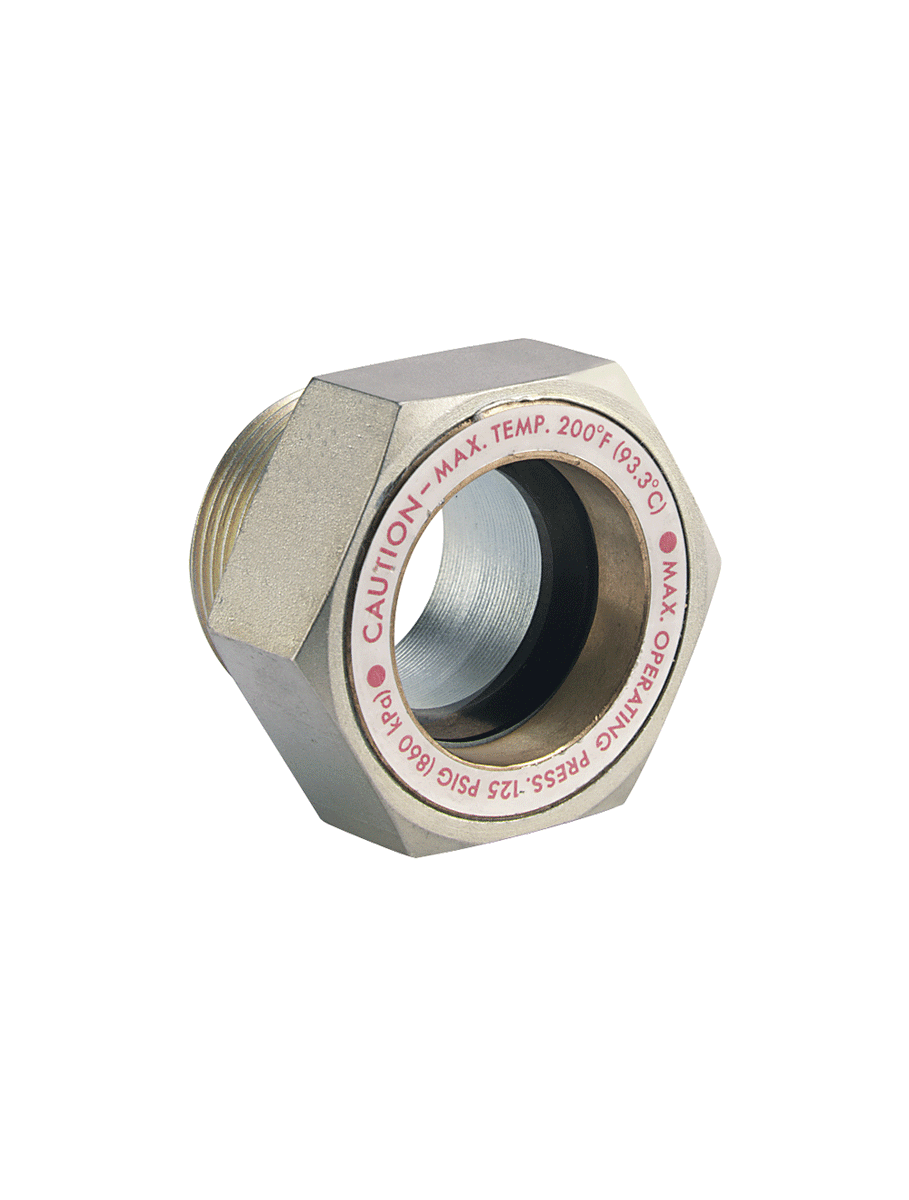

SFI-500CS-2 | Sight window | 2" male NPT. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-500CS-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-500CS-2 Documents

Series 500 Catalog Page More Info

Overview

Details for SFI-500CS-2

CARBON STEEL 2â€ NPT SFI WINDOW Dwyer Instruments SFI-500CS-2 Window is a 2-inch NPT carbon steel window designed to provide a clear view of the flow in a pipe. It is commonly used in industrial and commercial applications to monitor the flow of liquids or gases. The window is made of durable carbon steel, ensuring longevity and resistance to corrosion and wear. This SFI-500CS-2 Window offers various benefits, including: - Clear visibility of the flow, allowing for easy monitoring - Carbon steel construction for enhanced durability and corrosion resistance - Suitable for a wide range of industrial and commercial applications - Easy installation and maintenance our HVAC supply store offers the best prices and fast shipping for your products!

Series 500 Sight Window

Shows Level or Contents of Tanks, Pipelines; Tempered, Replaceable Glass Window

The Series 500 Sight Window is a series of standard tempered glass with brass body sight windows which display level or contents of tanks or pipelines. In addition to the standard brass body, the Series 500 sight windows are also available in carbon steel or 316 SS.

Product Applications

Hydraulic Tanks
Pressure Vessels
Coolant Tanks
Hydraulic Lines
Oil Reservoirs

Tough, tempered glass window resists chemical attach and abrasion
Seamless, replaceable gasket assures perfect seal
Field replaceable glass window
Range of wetted materials to suit a wide range of chemical compatibility

Specifications

Series: 500 Sight Window
Category/Type: Flow
Type: Sight Flow Indicators
Series: 500 Sight Window
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: brass; carbon steel; or 316 SS; Gasket: Buna-N on brass and carbon steel body; PTFE on 316 SS body.
Temperature Limit: 200°F (93°C).
Pressure Limit: 125 psig (8.6 bar).
Connections: 3/4" to 2" male NPT.
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
