Brand: Dwyer InstrumentsSKU: SFI-360-3/4

List Price
~~$1,031.00~~

$343.74

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

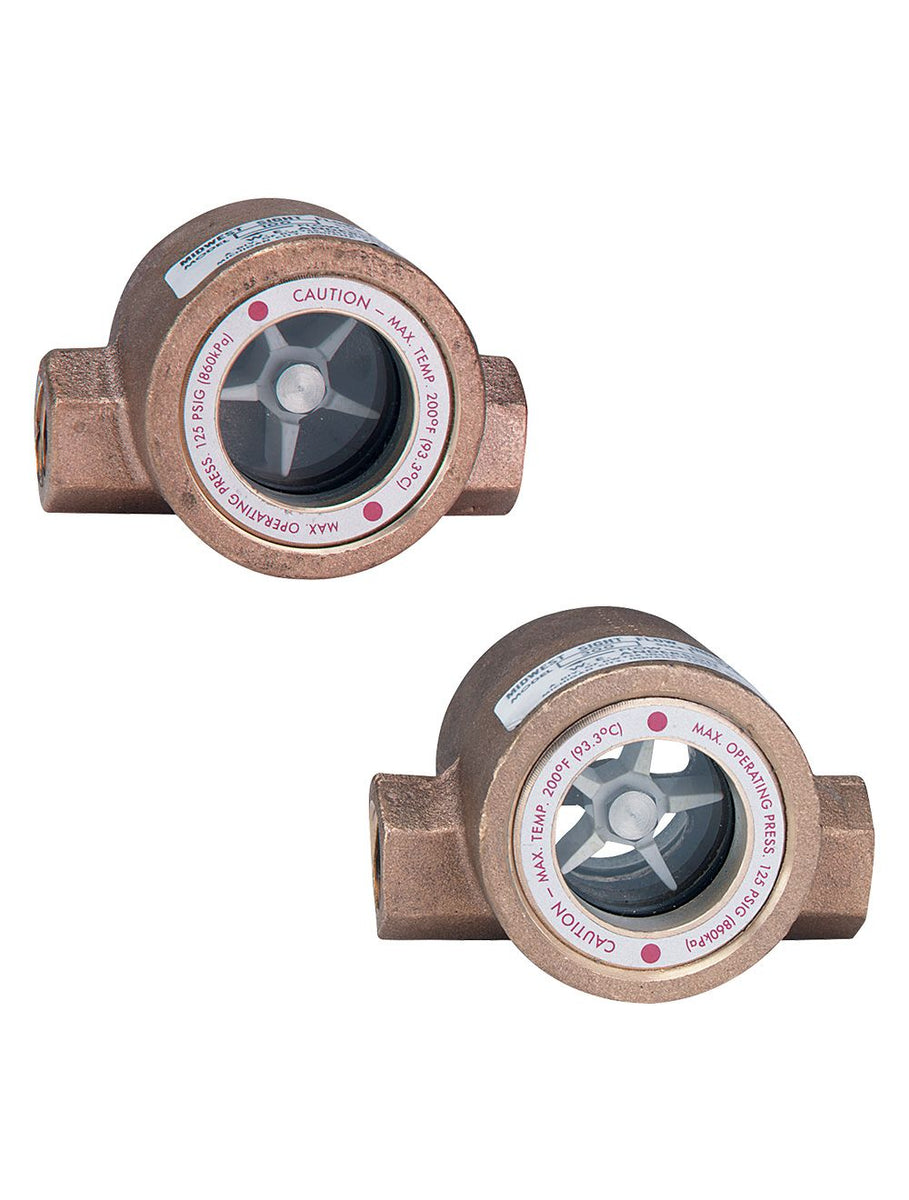

SFI-360-3/4 | Sight flow indicator | 3/4" body | 4.063" L x 2.750" D x 2.563" H (103 x 70 x 65 mm) | 2.6 lb (1.2 kg). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-360-3/4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-360-3/4 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-360-3/4

Accurate Flow Measurement: SFI-360-3/4 Dwyer Instruments Flow IndicatorDwyer Instruments' SFI-360-3/4 is a durable and precise 3/4" Double Window Flow Indicator, providing reliable flow measurement solutions for industrial engineers and maintenance professionals. Rugged Design: Constructed with a durable polycarbonate body and acrylic windows, this flow indicator withstands harsh industrial environments, ensuring accurate measurements even under demanding conditions. Easy Observation: The double window design allows for clear visibility of the flow rate, making it easy to monitor flow conditions at a glance. Precise Measurement: The SFI-360-3/4 utilizes a precision-engineered float mechanism to provide accurate flow readings over a wide range of flow rates. Versatile Applications: This flow indicator can be used in various applications, including compressed air, gases, and liquids, making it a versatile tool for measuring flow in pneumatic and hydraulic systems. Technical Specifications: - Size: 3/4" - Construction: Polycarbonate body and acrylic windows - Flow Range: 0.5-15 SCFM - Pressure Rating: 150 psi - Temperature Range: 40Â°F - 120Â°F - Accuracy: Â±5% of full scale Trust our HVAC supply store for Reliable Industrial Products: our HVAC supply store is your trusted source for high-quality industrial products. We offer competitive prices, fast shipping, and expert technical support to meet your industrial needs. Choose our HVAC supply store for all your flow measurement requirements and experience the difference.

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
