SFI-350-3/4 | Sight flow indicator | 3/4" body | 4.063" L x 2.750" D x 2.563" H (103 x 70 x 65 mm) | 2.6 lb (1.2 kg). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-350-3/4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-350-3/4 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-350-3/4

3/4" SIGHT FLOW INDICATOR | Dwyer Instruments (SFI-350-3/4) Dwyer Instruments' SFI-350-3/4 Sight Flow Indicator is a robust and versatile device designed to provide visual monitoring of fluid flow in industrial applications. Its 3/4" NPT connections make it easy to integrate into existing systems. Crafted from durable materials, this indicator withstands harsh industrial environments and ensures accurate readings. The clear acrylic construction offers excellent visibility, allowing for quick and reliable flow confirmation. Its compact design minimizes space requirements, making it suitable for various applications. Key Features: * 3/4" NPT connections * Clear acrylic construction * Robust and durable design * Visual monitoring of fluid flow * Compact size Applications: * Monitoring flow rates in pipelines * Verifying flow conditions in systems * Detecting leaks and blockages * Ensuring proper fluid circulation Trust our HVAC supply store for the best prices and fast shipping on Dwyer Instruments' SFI-350-3/4 Sight Flow Indicator and other industrial products!

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

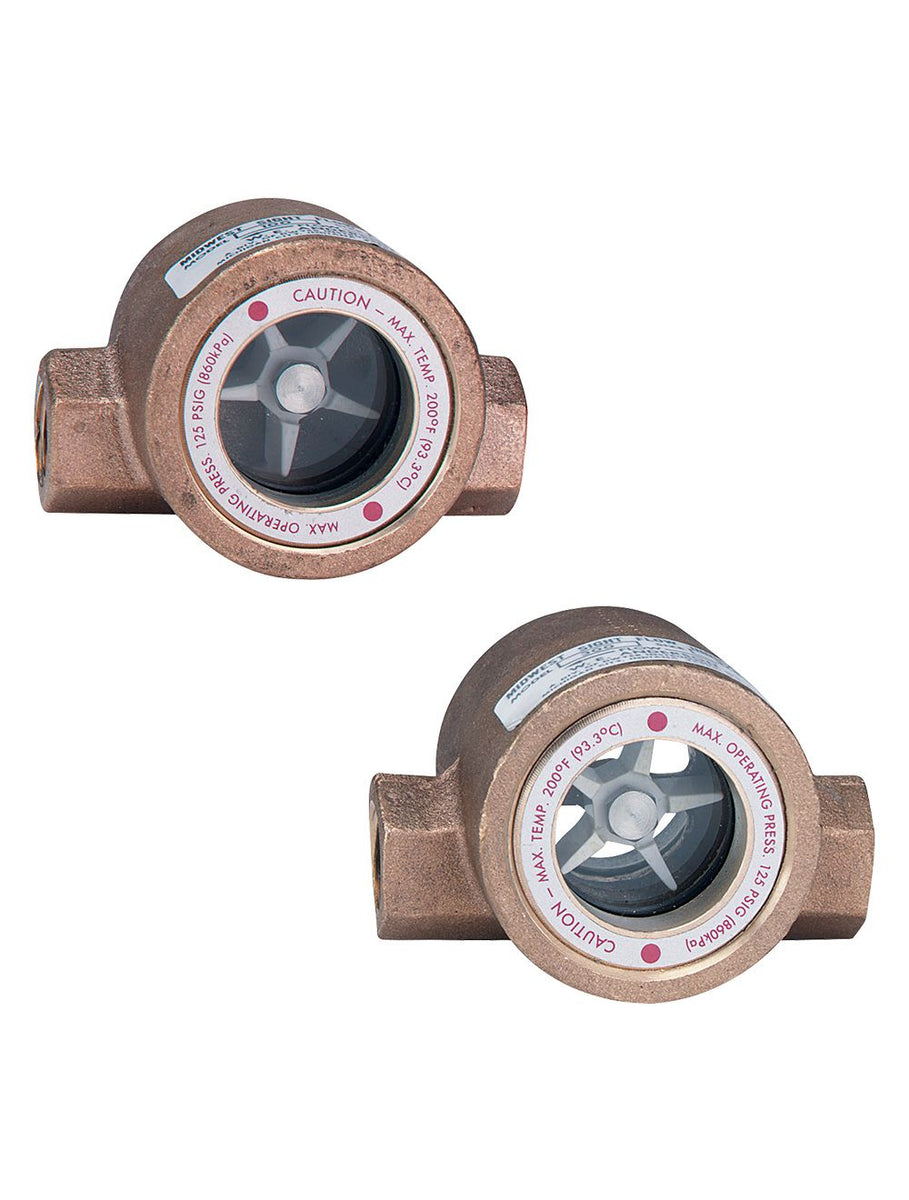

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
